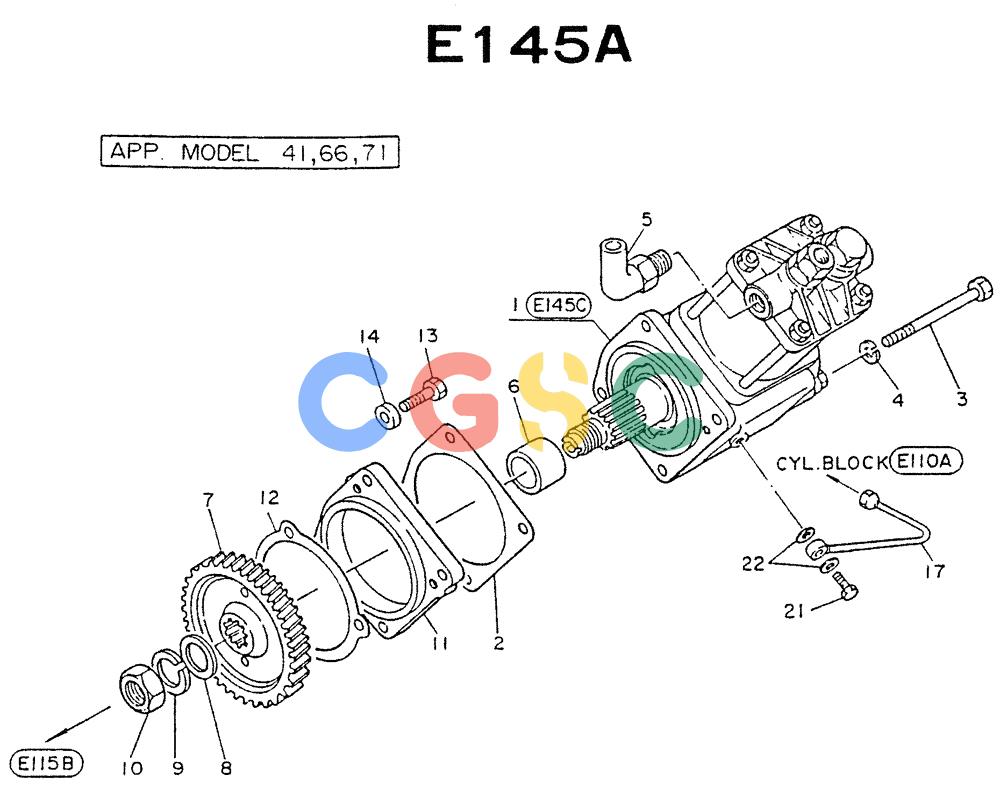

神钢零件查询(NE6(T)04) - NISSAN DIESEL ENGINE (1/86-12/98) (04-007) - COMPRESSOR AIR (FITTING PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
853 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 41 | [1] | SCREW | IHSPRING CLIP TADANO LTD. |
| . . | 66 | [1] | KAWASAKI JUKO | KAWASAKI JUKO |
| . . | 71 | [1] | KOBE SEIKOJO | KOBE SEIKOJO |
| 1. | VG1450195002 | [1] | AIR COMPRESSOR COMPRESSOR ASSY-AIR (INNER PARTS E145C) | AIR COMPRESSOR COMPRESSOR ASSY-AIR (INNER PARTS E145C) |
| 2. | VG1461295001 | [1] | GASKET | KOBGASKET |
| 3. | VG080110061A | [4] | BOLT | |
| 4. | VG089151401A | [4] | WASHER | KOBWASHER-SPRING Superseded by part number: 76601964 |
| 5. | VG1456396001 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 6. | VG1459195001 | [1] | SPACER | |
| 7. | VG1305295000 | [1] | GEAR GEAR-PUMP DRIVE | GEAR GEAR-PUMP DRIVE |
| 8. | VG089154541A | [1] | LOCK WASHER | KOBWASHER-PLAIN |
| 9. | VG089151541A | [1] | WASHER | KOBWASHER-SPRING |
| 10. | VG9111190014 | [1] | NUT NUT-HEX | NUT NUT-HEX |
| 11. | VG1461595001 | [1] | HYD CONNECTOR | KOBADAPTER-COMPRESSOR |
| 12. | VG1305095000 | [1] | GASKET | KOBGASKET-SUPPORT |
| 13. | VG081210201A | [3] | BOLT | |
| 14. | VG9102090001 | [3] | OIL SEAL | KOBWASHER-SEAL |
| 17. | VG1511295003 | [1] | KIT | KOBTUBE-OIL |
| 21. | VG1515296001 | [1] | SCREW | KOBBOLT-EYE |
| 22. | VG0135121084 | [2] | GASKET | KOBGASKET |
