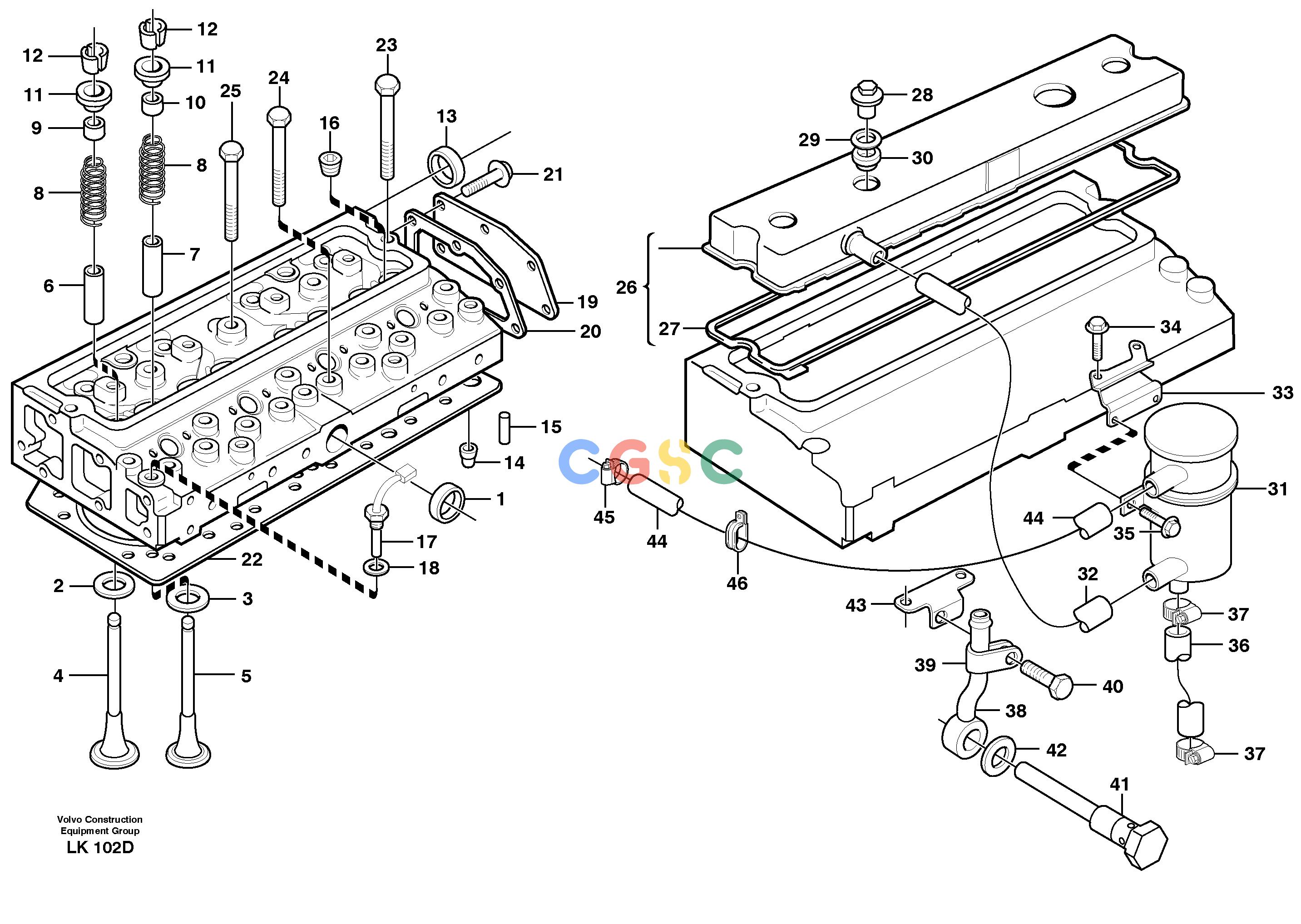

沃尔沃零件查询EW140 Cylinder headSER NO 1001-1487 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
549 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11706970
|
[1] |
Cylinder head
|
|
| 1. |
VOE483898
|
[1] |
Plug
|
|
| 2. |
VOE3976534
|
[4] |
Valve seat
|
|
| 3. |
VOE3976535
|
[4] |
Valve seat
|
|
| 4. |
VOE3976536
|
[4] |
Valve
|
|
| 5. |
VOE11703878
|
[4] |
Exhaust valve
|
|
| 6. |
VOE11709760
|
[4] |
Valve guide
|
|
| 7. |
VOE11706969
|
[4] |
Valve guide
|
|
| 8. |
VOE3976538
|
[8] |
Valve spring
|
|
| 9. |
VOE11703877
|
[4] |
Valve seal
|
|
| 10. |
VOE11703879
|
[4] |
Valve seal
|
|
| 11. |
VOE3976540
|
[8] |
Valve spring washer
|
|
| 12. |
VOE3976541
|
[16] |
Valve sleeve
|
|
| 13. |
VOE11997807
|
[1] |
Plug
|
|
| 14. |
VOE11703880
|
[2] |
Dowel
|
|
| 15. |
VOE950562
|
[2] |
Pin
|
|
| 16. |
VOE11997843
|
[1] |
Plug
|
|
| 17. |
VOE14378636
|
[1] |
Temperature sensor
|
B4
|
| 17A. |
VOE14370860
|
[1] |
Cable terminal
|
|
| |
VOE14370881
|
[1] |
Spacer
|
|
| |
VOE14370761
|
[1] |
Connector
|
|
| 18. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 19. |
|
[1] |
Cover
|
|
| 20. |
VOE11703915
|
[1] |
Gasket
|
|
| 21. |
|
[6] |
Screw
|
|
| 22. |
VOE3976803
|
[1] |
Gasket
|
|
| 23. |
VOE11997844
|
[2] |
Screw
|
|
| 24. |
VOE11997845
|
[8] |
Bolt
|
|
| 25. |
VOE11997846
|
[12] |
Bolt
|
|
| 26. |
VOE11706635
|
[1] |
Valve cover
|
|
| 27. |
VOE11708206
|
[1] |
Gasket
|
|
| 28. |
VOE11988395
|
[3] |
Nut
|
|
| 29. |
VOE11997049
|
[3] |
Sealing ring
|
|
| 30. |
VOE13955900
|
[3] |
Washer
|
|
| 31. |
VOE11705553
|
[1] |
Ventilation unit
|
|
| |
VOE11707285
|
[1] |
Strainer
|
|
| 32. |
VOE11705554
|
[1] |
Hose
|
|
| 33. |
VOE11705555
|
[1] |
Bracket
|
|
| 34. |
VOE946441
|
[2] |
Flange screw
|
|
| 35. |
VOE13947542
|
[2] |
Screw
|
|
| 36. |
VOE11706636
|
[1] |
Hose
|
|
| 37. |
VOE13943472
|
[2] |
Hose clamp
|
|
| 38. |
VOE11705557
|
[1] |
Pipe
|
|
| 39. |
VOE11705561
|
[1] |
Clamp
|
|
| 40. |
VOE946440
|
[1] |
Flange screw
|
|
| 41. |
VOE11705559
|
[1] |
Pipe
|
|
| 42. |
VOE11705558
|
[2] |
Washer
|
|
| 43. |
VOE11705560
|
[1] |
Bracket
|
|
| 44. |
|
[1] |
Hose
|
SER NO - 1362
|
| |
|
[1] |
Hose
|
SER NO 1363 -
|
| 45. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 46. |
VOE11708213
|
[1] |
Clamp
|
|
