纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (04-19) - ALARM, BACKUP - HORN New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
284 次

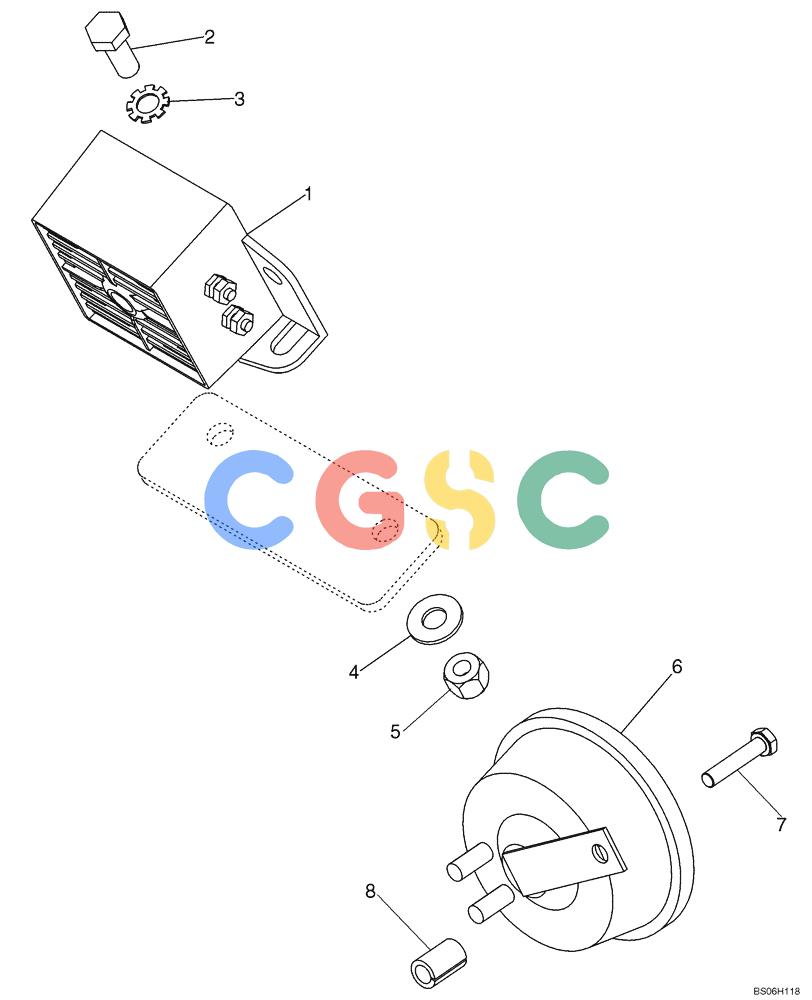

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | L112318 | [1] | ALARM | CASBackup Alarm |
| 2. | 614-8020 | [2] | BOLT,Hex, M8 x 1.25 x 20mm | CAS Superseded by part number: 120104 |
| 3. | 893-10008 | [2] | LOCK WASHER,Ext Tooth, M8 | CASExternal Lock |
| 4. | 895-15008 | [2] | WASHER,M8 x 20 x 1.6 | CASUse with 345-49 Loctite Adhesive Superseded by part number: 86625263 |
| 5. | 832-10408 | [2] | NUT,M8 x 1.25, Cl 8 | CAS Superseded by part number: 86528579 |
| 6. | 87620003 | [1] | HORN | FARHORN, 335 Hz; Replaces 251444A1, 300 Hz Used On Some Models |
| 7. | 120106 | [1] | BOLT,M8 x 1.25 x 45.45mm, Cl 8.8 | NH Superseded by part number: 16044024 |
| 8. | D143412 | [1] | SPACER,10.31mm ID x 15.81mm OD x 23.88mm L | CAS |
| . . | 345-49 | [1] | SEALANT | CASAdhesive Superseded by part number: NLS |
