纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (04-20) - GRID HEATER - CABLES New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
544 次

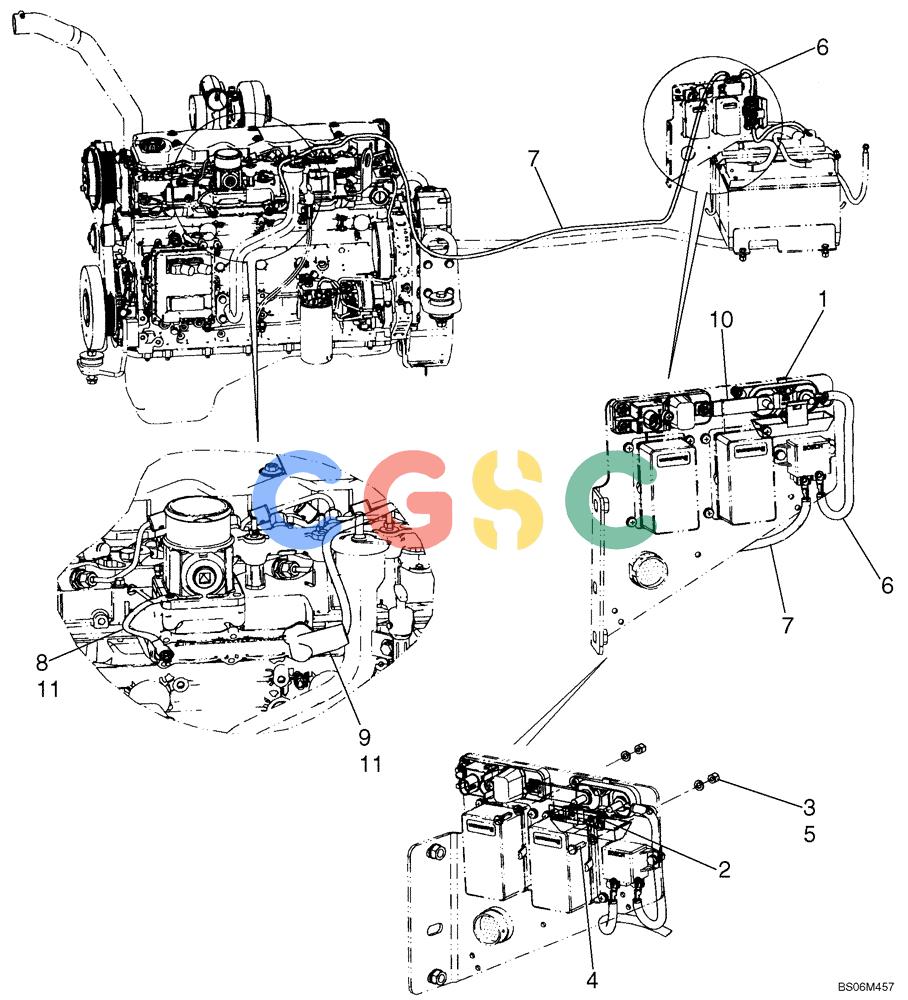

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 440038A1 | [1] | JUNCTION BLOCK | RACFuse Block, Includes Hardware Superseded by part number: 87302554 |
| 2. | 8501311 | [1] | FUSE,150A | FAR150 Amp |
| 3. | 895-11006 | [4] | WASHER,M6 x 12mm OD x 1.6mm | CASPower Relay, 24V Superseded by part number: 86588450 |
| 4. | 627-6020 | [2] | BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd | CAS Superseded by part number: 86505530 |
| 5. | 832-10406 | [2] | NUT,M6 x 1, Cl 8 | CAS |
| 6. | 87592432 | [1] | CABLE | BURFuse To Relay |
| 7. | 87592431 | [1] | CABLE | BURRelay To Grid Heater |
| 8. | 87413162 | [1] | GROUND STRAP | IMOCopper Ground, Cold Start |
| 9. | L126713 | [1] | BOOT | CASFuse To Relay |
| 10. | 87592433 | [1] | BAR | BURCold Start |
| 11. | 86500688 | [2] | NUT,Hex, M6 x 1.0, Cl 10.9 | WIN |
