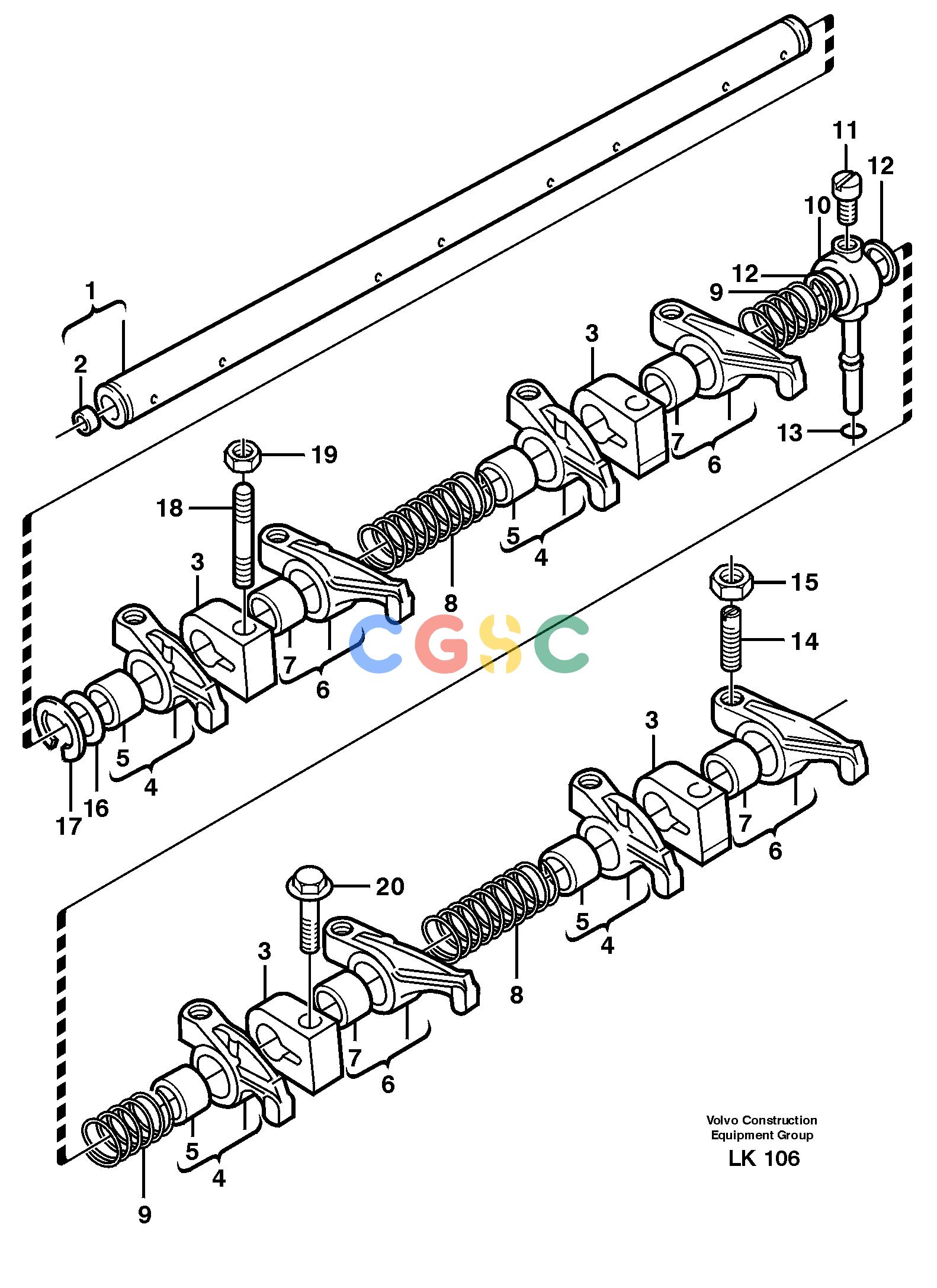

沃尔沃零件查询EW140 Valve mechanismSER NO 1001-1487 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
465 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE3976548
|
[1] |
Rocker arm shaft
|
|
| 2. |
VOE6613201
|
[2] |
Plug
|
|
| 3. |
VOE11997850
|
[4] |
Bearing bracket
|
|
| 4. |
VOE11703882
|
[4] |
Rocker arm
|
|
| 5. |
VOE11988424
|
[4] |
Bushing
|
|
| 6. |
VOE11703883
|
[4] |
Rocker arm
|
|
| 7. |
VOE11988424
|
[4] |
Bushing
|
|
| 8. |
VOE483363
|
[2] |
Spring
|
|
| 9. |
VOE483364
|
[2] |
Spring
|
|
| 10. |
VOE11997853
|
[1] |
Pipe
|
|
| 11. |
VOE11997854
|
[1] |
Screw
|
|
| 12. |
VOE11997855
|
[2] |
Shim
|
|
| 13. |
VOE483510
|
[1] |
Sealing ring
|
|
| 14. |
VOE3976859
|
[8] |
Stud
|
|
| 15. |
VOE940175
|
[8] |
Nut
|
|
| 16. |
VOE11703884
|
[2] |
Washer
|
|
| 17. |
VOE483470
|
[2] |
Lock ring
|
|
| 18. |
VOE11997857
|
[3] |
Stud
|
|
| 19. |
VOE971096
|
[3] |
Flange nut
|
|
| 20. |
VOE11997858
|
[1] |
Screw
|
|
