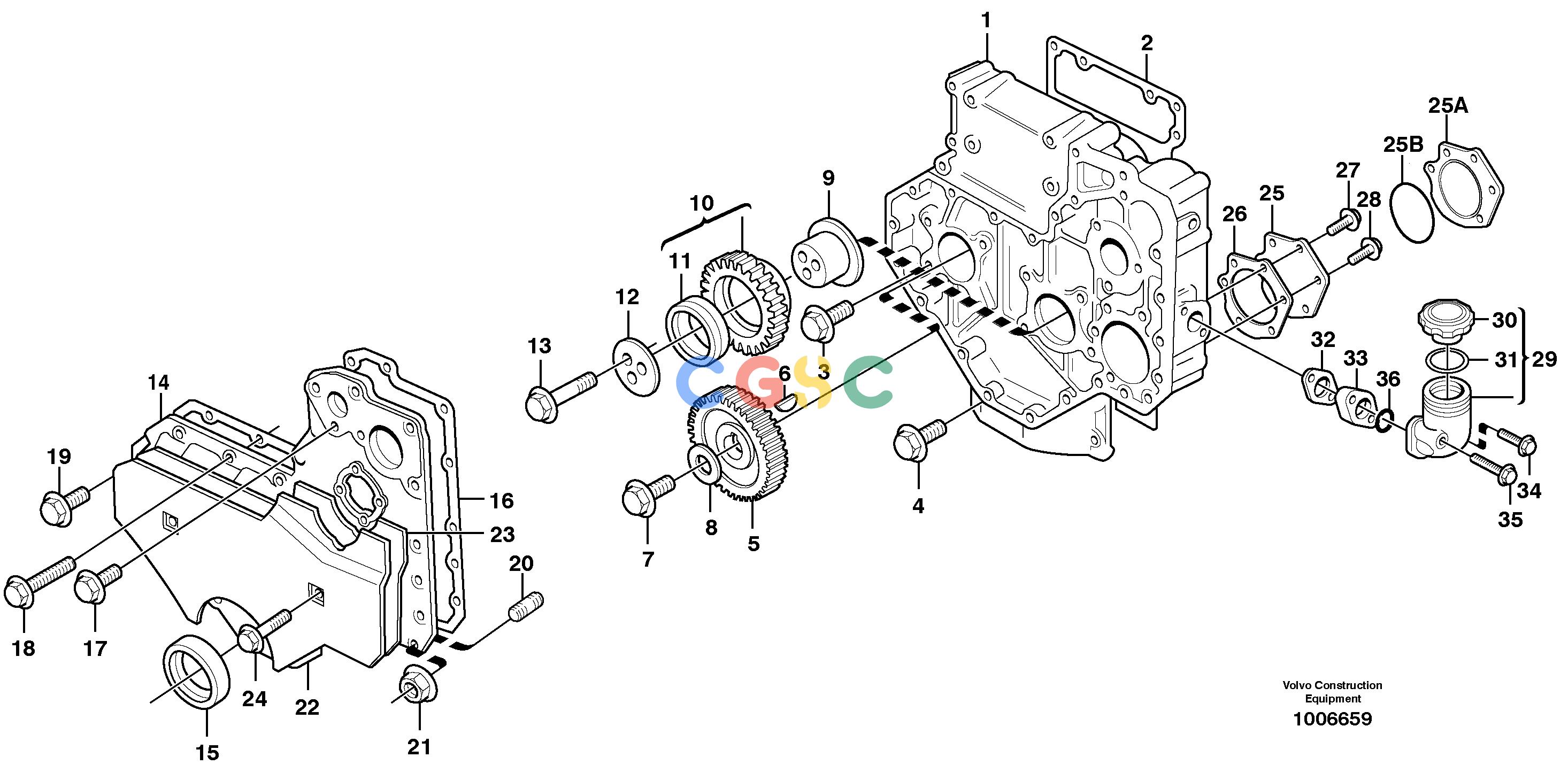

沃尔沃零件查询EW140 Timing gear casingSER NO 1001-1487 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
150 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11710631
|
[1] |
Tmg Gear Casing
|
|
| |
VOE11708981
|
[1] |
Plug
|
|
| 2. |
VOE11711203
|
[1] |
Gasket
|
|
| 3. |
VOE13946173
|
[8] |
Flange screw
|
|
| 4. |
VOE13945444
|
[4] |
Flange screw
|
|
| 5. |
VOE11700783
|
[1] |
Gear
|
|
| 6. |
VOE483448
|
[1] |
Key
|
|
| 7. |
VOE11701555
|
[1] |
Screw
|
|
| 8. |
VOE11997885
|
[1] |
Washer
|
|
| 9. |
VOE6642825
|
[1] |
Hub
|
|
| 10. |
VOE11997886
|
[1] |
Gear
|
|
| 11. |
VOE6642824
|
[1] |
Bearing Bushing
|
|
| 12. |
VOE11701556
|
[1] |
Plate
|
|
| 13. |
VOE13965187
|
[3] |
Flange screw
|
|
| 14. |
VOE11707751
|
[1] |
Cap
|
|
| 15. |
VOE6212928
|
[1] |
Seal
|
|
| 16. |
VOE11988377
|
[1] |
Gasket
|
|
| 17. |
VOE13965181
|
[6] |
Flange screw
|
|
| 18. |
VOE13945444
|
[1] |
Flange screw
|
|
| 19. |
VOE946671
|
[7] |
Flange screw
|
|
| 20. |
VOE11997915
|
[2] |
Stud
|
|
| 21. |
VOE13945408
|
[2] |
Nut
|
|
| 22. |
VOE3976562
|
[1] |
Noise Shield
|
|
| 23. |
VOE3976563
|
[1] |
Sound Absorber
|
|
| 24. |
VOE13945358
|
[2] |
Screw
|
|
| 25. |
VOE11709021
|
[1] |
Cap
|
E PROD
|
| 26. |
VOE11998164
|
[1] |
Gasket
|
E PROD
|
| 25A. |
VOE11709021
|
[1] |
Cap
|
L PROD
|
| 25B. |
VOE11709022
|
[1] |
O-ring
|
L PROD
|
| 27. |
VOE11703644
|
[5] |
Screw
|
|
| 28. |
VOE946441
|
[1] |
Flange screw
|
|
| 29. |
VOE11703905
|
[1] |
Filler housing
|
|
| 30. |
VOE11701706
|
[1] |
Cap
|
|
| 31. |
VOE11999028
|
[1] |
O-ring
|
|
| 32. |
VOE11997997
|
[2] |
Gasket
|
|
| 33. |
VOE11707643
|
[1] |
Spacer
|
|
| 34. |
VOE13965181
|
[1] |
Flange screw
|
|
| 35. |
VOE11997968
|
[1] |
Screw
|
|
| 36. |
VOE11999029
|
[1] |
O-ring
|
|
