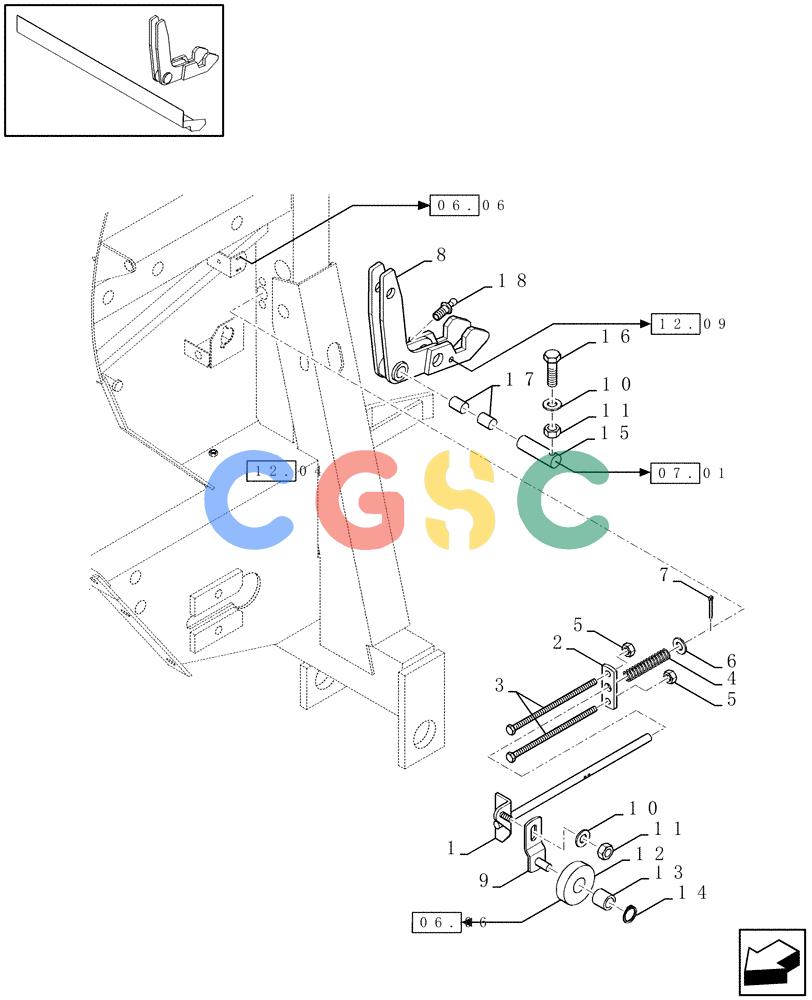

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (12.07[01]) - FRAME AND ATTACHMENTS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
322 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84024208
|
[2] |
ADJUSTMENT ROD
|
PLO
|
| 2. |
84024206
|
[2] |
COVER PLATE
|
PLO
|
| 3. |
412110
|
[4] |
BOLT,Hex, M8 x 1.25 x 170mm, Cl 8.8
|
NH
M8x170 Superseded by part number: 8900129024
|
| 4. |
84024209
|
[2] |
SPRING
|
PLO
|
| 5. |
43362
|
[8] |
NUT,M8 x 1.25, Cl 10
|
BHB
|
| 6. |
80140018
|
[2] |
WASHER
|
ZED
12MM Superseded by part number: 87364
|
| 7. |
89511933
|
[2] |
COTTER PIN
|
PLO
Superseded by part number: 14163970
|
| 8. |
84100193
|
[1] |
LATCH
|
PLO
LH
|
| 8. |
84100192
|
[1] |
LATCH
|
PLO
RH
|
| 9. |
84062224
|
[2] |
SUPPORT
|
PLO
|
| 10. |
80378243
|
[6] |
WASHER
|
ZED
8MM Superseded by part number: 378243
|
| 11. |
80100067
|
[6] |
NUT
|
ZED
M8 Superseded by part number: 86528579
|
| 12. |
84024806
|
[2] |
SPACER
|
PA
|
| 13. |
84024794
|
[2] |
BUSHING
|
NH
|
| 14. |
83981963
|
[2] |
SNAP RING,M8 x 0.66mm Thk
|
ZED
|
| 15. |
84024197
|
[2] |
SPINDLE
|
PLO
|
| 16. |
84024228
|
[2] |
CARRIAGE BOLT,Sq Nk, M8 x 110mm, Cl 8.8
|
PLO
M8x110
|
| 17. |
84068190
|
[4] |
SLEEVE
|
PLO
|
| 18. |
84814929
|
[2] |
LUBE NIPPLE
|
ZED
Superseded by part number: N13505
|
