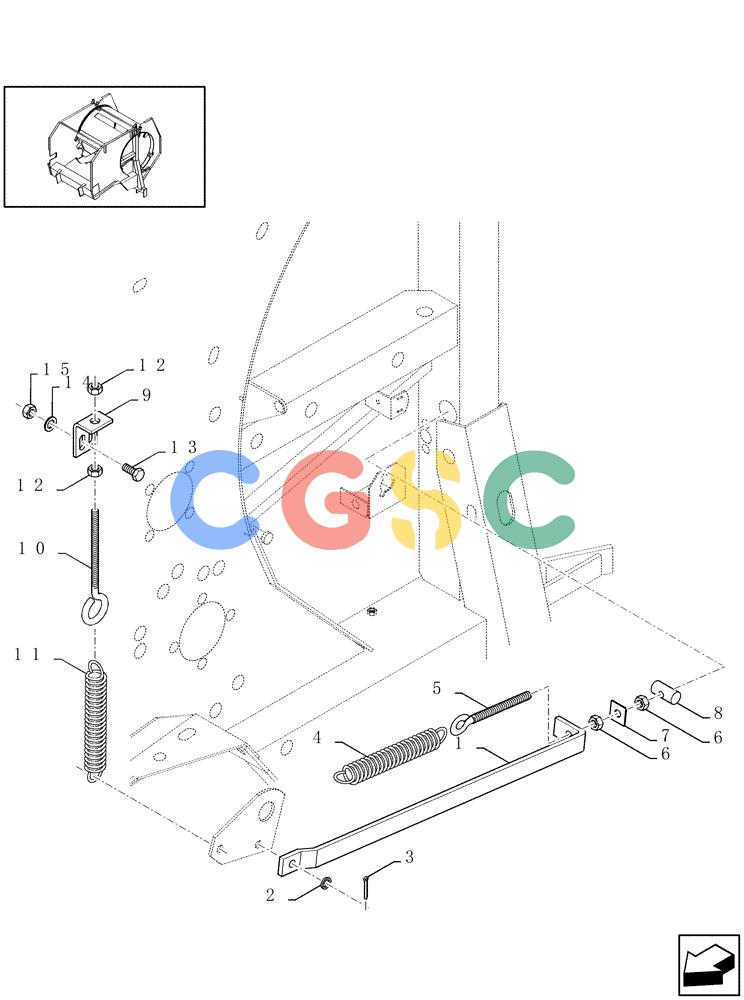

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (12.08[01]) - FRAME AND ATTACHMENTS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
659 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84078695
|
[2] |
SUPPORT
|
PLO
|
| 2. |
80140018
|
[2] |
WASHER
|
ZED
12MM Superseded by part number: 87364
|
| 3. |
80130003
|
[2] |
COTTER PIN
|
ZED
3.2x20 Superseded by part number: 130003
|
| 4. |
80056686
|
[2] |
SPRING
|
PLO
Superseded by part number: 56686
|
| 5. |
84024491
|
[2] |
BOLT
|
PLO
|
| 6. |
337475
|
[4] |
NUT,M12, Cl 10
|
BHB
|
| 7. |
84822147
|
[2] |
PLATE
|
PLO
|
| 8. |
84024195
|
[2] |
PIN
|
PLO
|
| 9. |
84818767
|
[2] |
BRACKET
|
PLO
, Start Serial: D612
|
| 12. |
89706685
|
[4] |
NUT
|
ZED
M12, Start Serial: D612 Superseded by part number: 9706685
|
| 13. |
120104
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
, Start Serial: D612
|
| 14. |
80322358
|
[4] |
LOCK WASHER
|
ZED
8MM, Start Serial: D612 Superseded by part number: 322358
|
| 15. |
89706690
|
[4] |
NUT,M8, Cl 8
|
ZED
, Start Serial: D612 Superseded by part number: 43362
|
