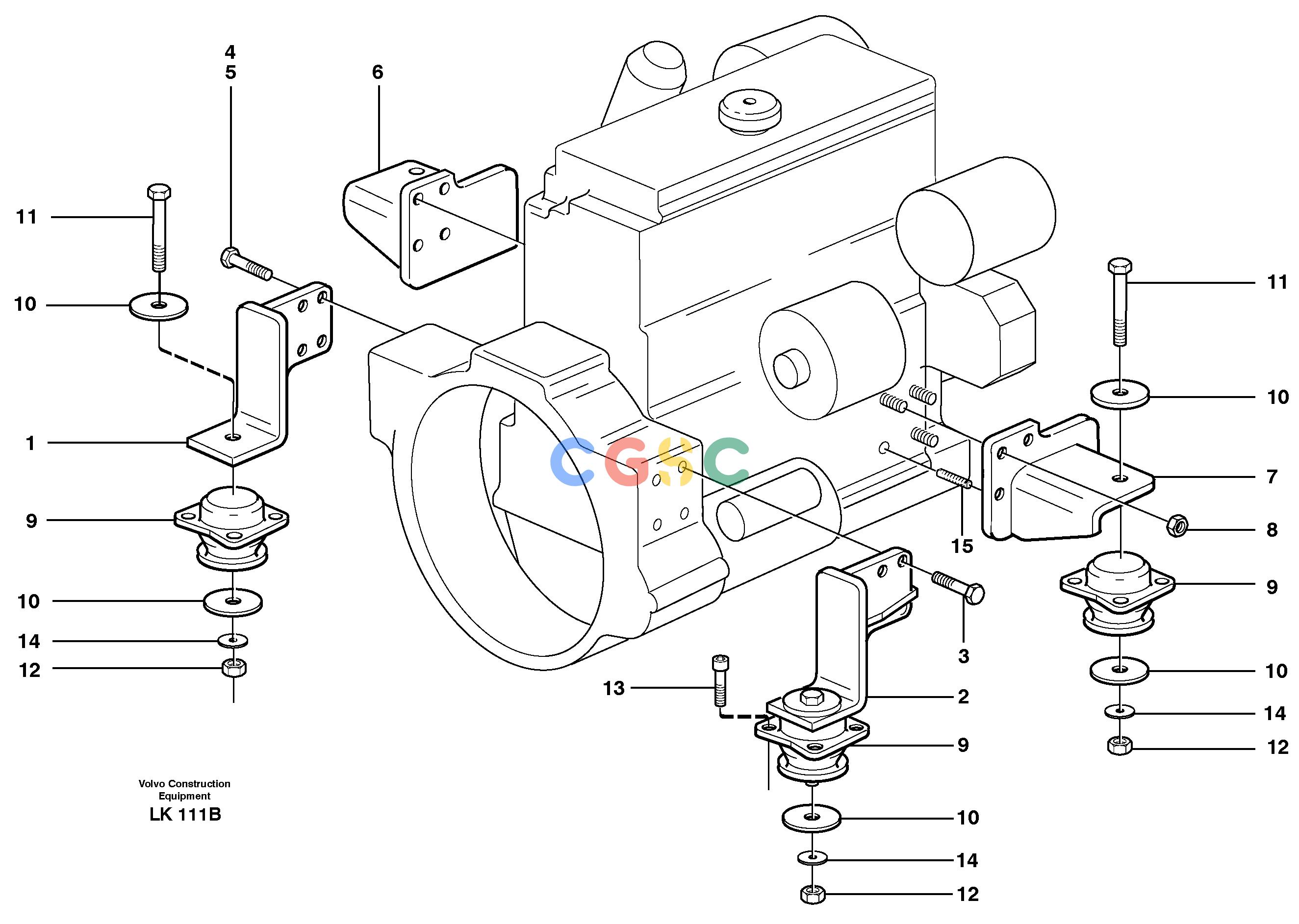

沃尔沃零件查询EW140 Engine mountingSER NO 1001-1487 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
822 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14370791
|
[1] |
Retainer
|
|
| 2. |
VOE14370792
|
[1] |
Retainer
|
|
| 3. |
VOE13965191
|
[4] |
Screw
|
|
| 4. |
VOE13965191
|
[1] |
Screw
|
L = 35MM
|
| 5. |
VOE965225
|
[3] |
Flange screw
|
L = 40MM
|
| 6. |
VOE14370793
|
[1] |
Retainer
|
|
| 7. |
VOE14370794
|
[1] |
Retainer
|
|
| 8. |
VOE971096
|
[8] |
Flange nut
|
|
| 9. |
VOE14370226
|
[4] |
Rubber cushion
|
|
| 10. |
VOE14370795
|
[8] |
Washer
|
|
| 11. |
VOE5231649
|
[4] |
Hexagon screw
|
|
| 12. |
VOE14371258
|
[4] |
Flange lock nut
|
|
| 13. |
VOE14371995
|
[16] |
Lock screw
|
|
| 14. |
VOE13955900
|
[4] |
Washer
|
|
| 15. |
VOE11998146
|
[8] |
Stud
|
|
