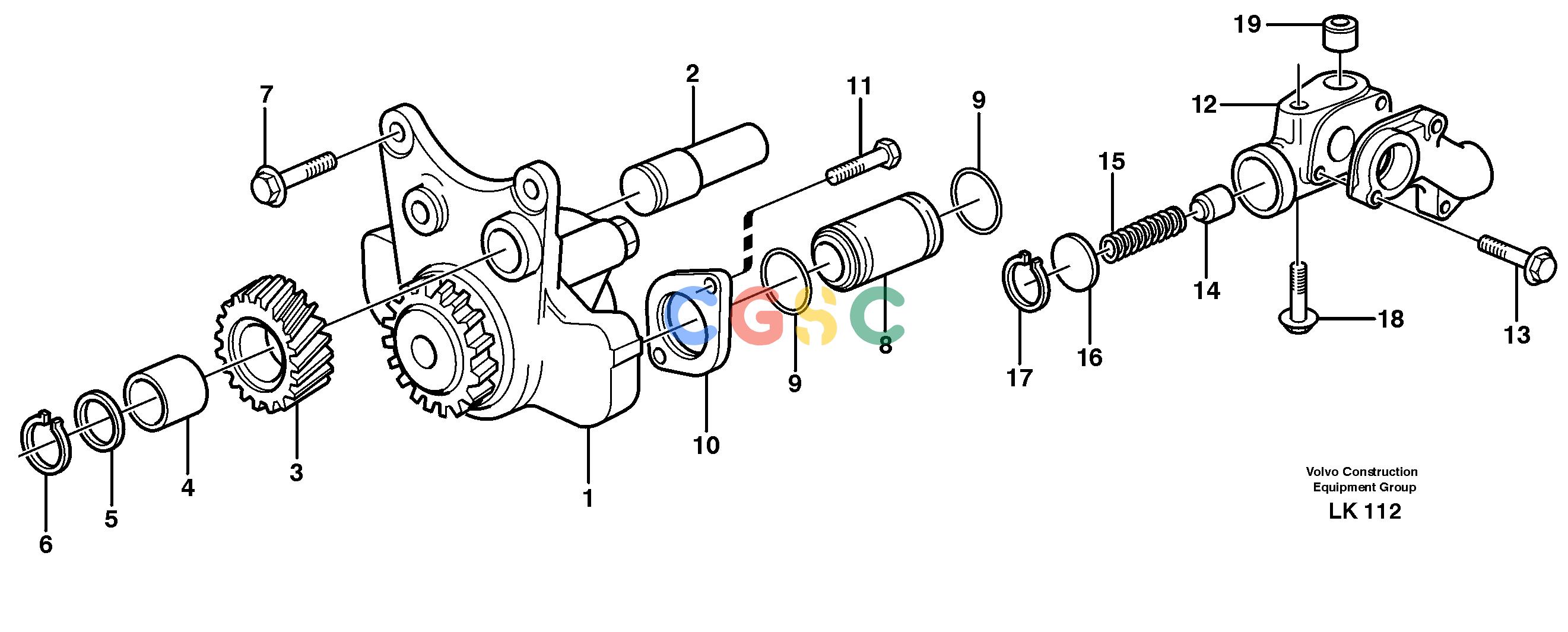

沃尔沃零件查询EW140 Oil pumpSER NO 1001-1487 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
640 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11997020
|
[1] |
Oil pump
|
|
| 2. |
VOE11997006
|
[1] |
Shaft
|
|
| 3. |
VOE11997897
|
[1] |
Gear
|
|
| 4. |
VOE11997898
|
[1] |
Bushing
|
|
| 5. |
VOE11997899
|
[1] |
Washer
|
|
| 6. |
VOE483469
|
[1] |
Lock ring
|
|
| 7. |
VOE60113082
|
[3] |
Flange screw
|
|
| 8. |
VOE11997908
|
[1] |
Pipe
|
|
| 9. |
VOE11997909
|
[2] |
O-ring
|
|
| 10. |
VOE11997910
|
[1] |
Flange
|
|
| 11. |
VOE13945444
|
[2] |
Screw
|
|
| 12. |
VOE11997902
|
[1] |
Overflow valve
|
|
| 13. |
VOE13948356
|
[3] |
Flange screw
|
|
| 14. |
VOE11997903
|
[1] |
Piston
|
|
| 15. |
VOE11708077
|
[1] |
Spring
|
|
| 16. |
VOE11997905
|
[1] |
Cover
|
|
| 17. |
VOE11997906
|
[1] |
Lock ring
|
|
| 18. |
VOE60113101
|
[1] |
Flange screw
|
|
| 19. |
VOE11701559
|
[1] |
Sleeve
|
|
