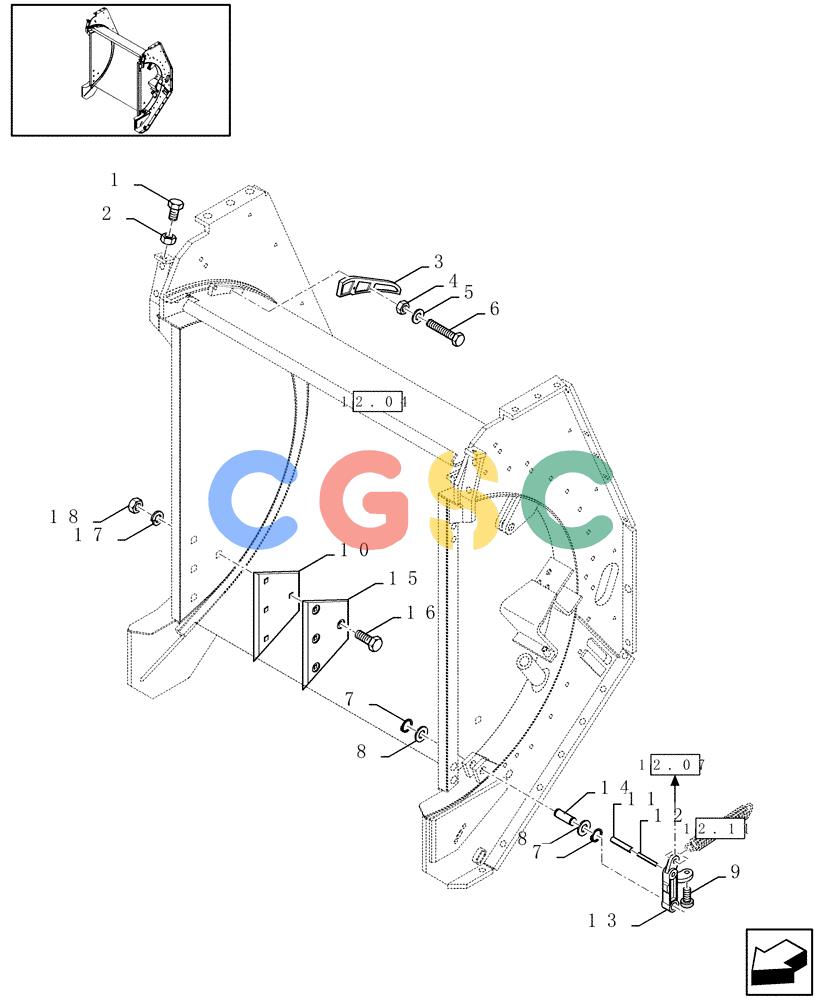

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (12.09[01]) - TAILGATE AND ATTACHMENTS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
215 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
80300389
|
[2] |
BOLT,M12 x 35mm
|
ZED
Superseded by part number: 628-12035
|
| 2. |
89706685
|
[2] |
NUT
|
ZED
M12 Superseded by part number: 9706685
|
| 3. |
84024118
|
[2] |
GUIDE
|
PLO
|
| 4. |
80353308
|
[4] |
NUT
|
ZED
M6 Superseded by part number: 353308
|
| 5. |
86588450
|
[4] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 6. |
80043117
|
[4] |
SCREW
|
ZED
M6x30 Superseded by part number: 87317695
|
| 7. |
80370002
|
[4] |
CIRCLIP
|
ZED
Superseded by part number: 370002
|
| 8. |
80140104
|
[4] |
WASHER
|
ZED
Superseded by part number: 140104
|
| 9. |
84024939
|
[2] |
SILENTBLOC
|
PLO
, Serial Range: -C651 Superseded by part number: 84820086
|
| 9. |
84820086
|
[2] |
SILENTBLOC
|
PLO
, Start Serial: D652
|
| 10. |
84025521
|
[2] |
DIA KIT, HARVESTER
|
PLO
|
| 11. |
80412071
|
[2] |
LOCK PIN
|
ZED
Superseded by part number: 412071
|
| 12. |
80412070
|
[2] |
COTTER PIN
|
PLO
13x70 Superseded by part number: 412070
|
| 13. |
84024934
|
[2] |
LEVER
|
PLO
, Serial Range: -C667 Superseded by part number: 84820578, 84820086
|
| 13. |
84820578
|
[2] |
LEVER
|
PLO
, Start Serial: D668
|
| 14. |
84024353
|
[2] |
PIN,25mm OD x 72mm L
|
PLO
|
| 15. |
84024364
|
[2] |
PLATE
|
PLO
|
| 16. |
80338949
|
[8] |
CARRIAGE BOLT
|
ZED
M10x25 Superseded by part number: 338949
|
| 17. |
80140045
|
[1] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 18. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
