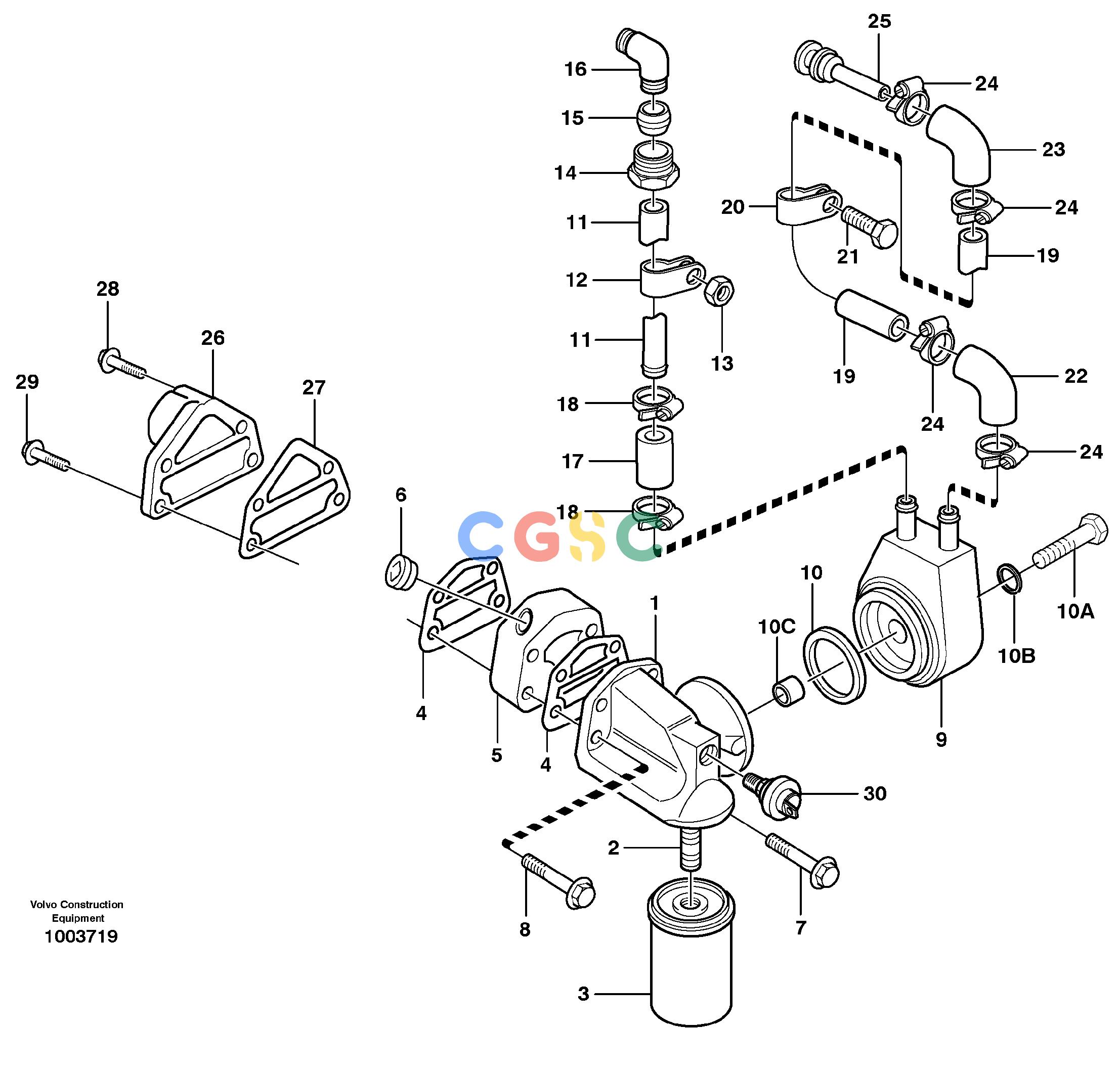

沃尔沃零件查询EW140 Oil coolerSER NO 1001-1487 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
969 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11700790
|
[1] |
Filter housing
|
|
| 2. |
VOE11999547
|
[2] |
Pipe connection
|
|
| 3. |
VOE17262703
|
[1] |
Oil Filter
|
|
| 4. |
VOE11998009
|
[2] |
Gasket
|
|
| 5. |
VOE11998012
|
[1] |
Adapter
|
|
| 6. |
VOE11997843
|
[1] |
Plug
|
|
| 7. |
VOE11700789
|
[1] |
Screw
|
|
| 8. |
VOE11998011
|
[2] |
Screw
|
|
| 9. |
VOE11712750
|
[1] |
Oil cooler
|
|
| 10. |
VOE11998014
|
[1] |
Gasket
|
|
| 10A. |
VOE11700759
|
[1] |
Screw
|
|
| 10B. |
VOE11700760
|
[1] |
Gasket
|
|
| 10C. |
VOE11997927
|
[1] |
Sealing ring
|
|
| 11. |
VOE11714181
|
[1] |
Oil pipe
|
|
| 12. |
VOE11999465
|
[1] |
Clamp
|
|
| 13. |
VOE13971095
|
[1] |
Flange nut
|
|
| 14. |
VOE11998020
|
[1] |
Nut
|
|
| 15. |
VOE11998021
|
[1] |
Ferrule
|
|
| 16. |
VOE11991755
|
[1] |
Nipple
|
|
| 17. |
VOE11998908
|
[1] |
Hose
|
|
| 18. |
VOE11700788
|
[2] |
Hose clamp
|
|
| 19. |
VOE11703910
|
[1] |
Hose
|
|
| 20. |
VOE11998024
|
[1] |
Clamp
|
|
| 21. |
VOE946440
|
[1] |
Flange screw
|
|
| 22. |
VOE11998908
|
[1] |
Hose
|
|
| 23. |
VOE11998026
|
[1] |
Hose
|
|
| 24. |
VOE11700788
|
[4] |
Hose clamp
|
|
| 25. |
VOE11988381
|
[1] |
Adapter
|
|
| 26. |
VOE11998028
|
[1] |
Adapter
|
|
| 27. |
VOE11998009
|
[1] |
Gasket
|
|
| 28. |
VOE11998030
|
[1] |
Screw
|
|
| 29. |
VOE11998031
|
[3] |
Screw
|
|
| 30. |
VOE1606877
|
[1] |
Switch
|
B3
|
