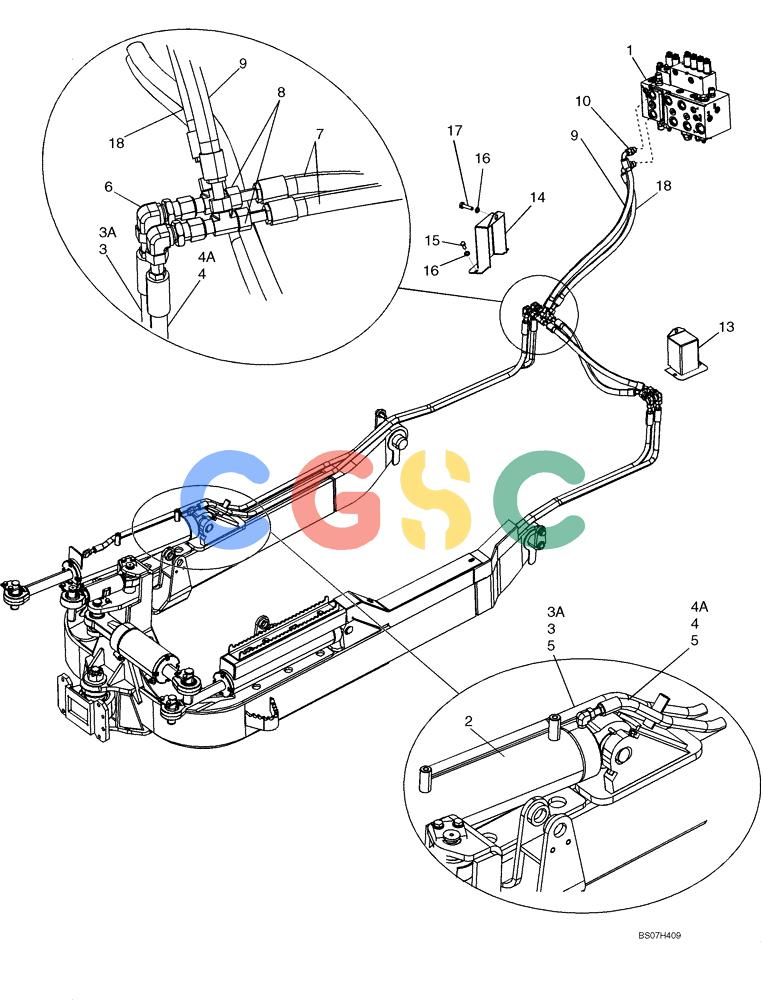

| 1. | 87658572 | [1] | CONTROL VALVE | BURVALVE, CONTROL, Three Spool; See Figure 08-15 |
| 1. | 87658573 | [1] | CONTROL VALVE | BURFour Spool; See Figure 08-18 |
| 2. | 76089427 | [2] | OPERATING CYLINDER,Double Acting, 55mm Rod, 509mm Stroke | LECCYLINDER ASSY., Angle, Used on Models with LGP; See Figure 08-24A |
| 2A. | 76089276 | [2] | OPERATING CYLINDER | LECCYLINDER ASSY., Angle, Used on Models with LT, XLT; See Figure 08-24 Superseded by part number: 76045930 |
| 3. | 87667327 | [2] | FLEXIBLE HOSE | BURASSY., Angle, Used on Models with XLT, LGP; From Back Fitting by LH Pipeline Cover to Angle Cylinder Rod End; 3070 mm (120 - 7/8 in) |
| 3A. | 87667323 | [2] | FLEXIBLE HOSE | BURASSY., Angle, Used on Models with LT; From Back Fitting by LH Pipeline Cover to Angle Cylinder Rod End; 2640 mm (103 - 15/16 in) |
| 4. | 87667326 | [2] | FLEXIBLE HOSE | BURASSY., Angle, Used on Models with XLT, LGP; From Front Fitting by LH Pipeline Cover to Angle Cylinder Closed End; 2375 mm (93 - 9/16 in) |
| 4A. | 87667322 | [2] | FLEXIBLE HOSE | BURASSY., Angle, Used on Models with LT; From Front Fitting by LH Pipeline Cover to Angle Cylinder Closed End; 1940 mm (76 - 7/16 in) |
| 5. | 14453181 | [4] | O-RING,0.489" ID x 0.07" Width | TTF |
| 6. | 78100066 | [4] | HYD CONNECTOR | LEC |
| 7. | 76054862 | [2] | FLEXIBLE HOSE | LECAngle, From Crossover Tees to Fitting by LH Pipeline Cover; 830 mm (32 - 11/16 in) |
| 8. | 78100053 | [2] | HYD CONNECTOR | LEC |
| 9. | 87588701 | [1] | HOSE ASSY. | BHBHOSE, FLEXIBLE, Angle; From Upper Right of Control Valve to the Top Crossover Tee; 1050 mm (41 - 3/8 in) |
| 10. | 83962539 | [2] | HYD CONNECTOR | IMOIncl. Ref 11, 12 |
| 11. | 167266 | [2] | O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro | NH |
| 12. | 9992069 | [2] | O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro | GI |
| 13. | 87674725 | [1] | COVER | BURPipeline Cover, LH |
| 14. | 87674724 | [1] | COVER | BURPipeline Cove, RH |
| 15. | 627-12035 | [4] | BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd | CAS Superseded by part number: 626-12035 |
| 16. | 895-11012 | [6] | WASHER,13.5mm ID x 24mm OD x 2.5mm Thk | CAS |
| 17. | 627-12025 | [2] | BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | CAS Superseded by part number: 398792 |
