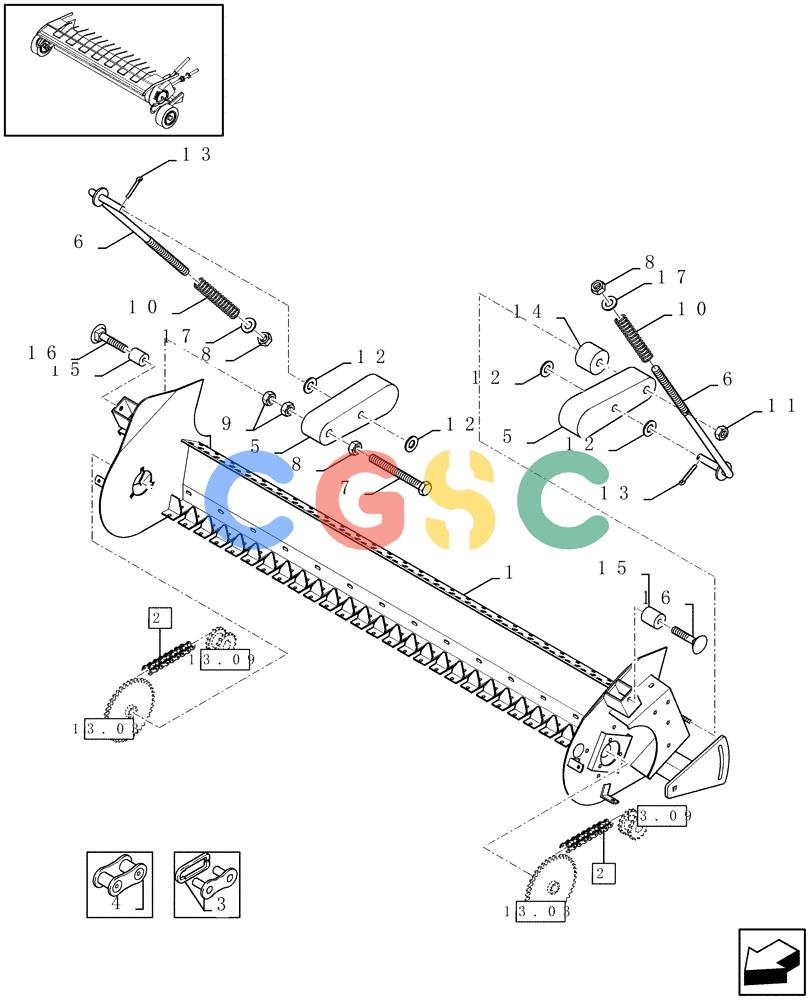

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (13.01[01]) - PICK-UP, MAIN FRAME Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
584 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84822016
|
[1] |
FRAME
|
PLO
|
| 2. |
84024310
|
[2] |
CHAIN,ASA 50, 74 Links x 15.88mm = 1174.75mm
|
PLO
(3,4)
|
| 3. |
80025194
|
[1] |
CONNECTING LINK
|
ZED
Superseded by part number: 86537460
|
| 4. |
80025805
|
[1] |
CONNECTING LINK
|
ZED
Superseded by part number: 241-1115
|
| 5. |
84024343
|
[2] |
GUIDE
|
PLO
|
| 6. |
84024366
|
[2] |
ROD
|
PLO
|
| 7. |
80538885
|
[2] |
SCREW
|
ZED
M10x90 Superseded by part number: 538885
|
| 8. |
86514720
|
[3] |
NUT
|
WIN
M10 Superseded by part number: 190003888452
|
| 9. |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 10. |
NS
|
[2] |
NOT SERVICED
|
BAS
|
| 11. |
80100037
|
[1] |
NUT,M10 x 1.5, Class 8
|
ZED
M10 Superseded by part number: 100037
|
| 12. |
80378244
|
[2] |
LOCK WASHER
|
ZED
10MM Superseded by part number: 378244
|
| 13. |
80130003
|
[2] |
COTTER PIN
|
ZED
Superseded by part number: 130003
|
| 14. |
84025363
|
[1] |
SPACER
|
PLO
|
| 15. |
80395087
|
[2] |
INSULATOR BLOCK
|
ZED
Superseded by part number: 89513995
|
| 16. |
80300662
|
[2] |
BOLT
|
ZED
Superseded by part number: 300662
|
