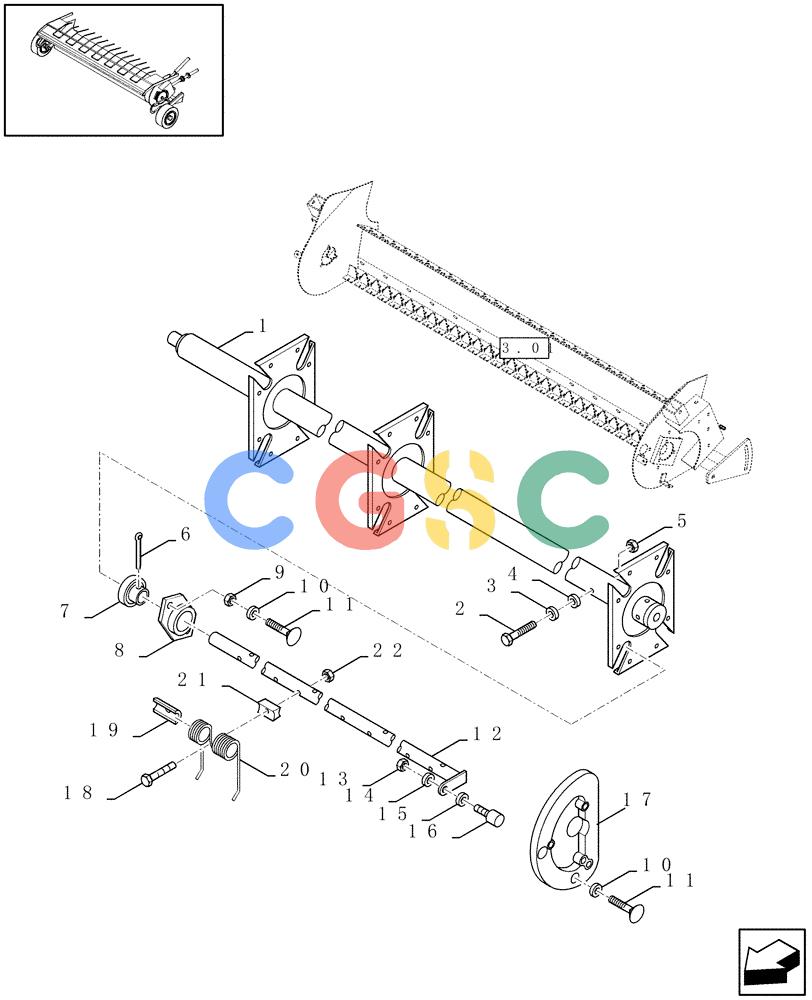

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (13.02[01]) - PICK-UP Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
200 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84822012
|
[1] |
REEL
|
PLO
|
| 2. |
80412085
|
[2] |
SCREW
|
ZED
M12x80 Superseded by part number: 412085
|
| 3. |
80034043
|
[2] |
SPACER
|
ZED
Superseded by part number: 34043
|
| 4. |
80394630
|
[2] |
WASHER
|
ZED
12MM Superseded by part number: 86625256
|
| 5. |
80100038
|
[2] |
NUT
|
ZED
M12 Superseded by part number: 100038
|
| 6. |
80136521
|
[16] |
COTTER PIN
|
ZED
Superseded by part number: 136521
|
| 7. |
80054770
|
[16] |
BALL BEARING
|
ZED
Superseded by part number: 84330047
|
| 8. |
80054695
|
[16] |
BEARING CARRIER
|
ZED
Superseded by part number: 54695
|
| 9. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 10. |
80140045
|
[1] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 11. |
80120109
|
[1] |
SCREW
|
ZED
M10x20 Superseded by part number: 43138
|
| 12. |
84822013
|
[4] |
BAR
|
PLO
3 Spider
|
| 13. |
9802182
|
[4] |
LOCK NUT,1/2"-20, GB
|
GI
Superseded by part number: 88130
|
| 14. |
80140018
|
[4] |
WASHER
|
ZED
12MM Superseded by part number: 87364
|
| 15. |
80702
|
[4] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
12MM
|
| 16. |
86536275
|
[4] |
CAM FOLLOWER
|
NH
|
| 17. |
86512412
|
[1] |
CAM
|
PLO
|
| 18. |
80535866
|
[56] |
SCREW
|
ZED
Superseded by part number: 379021, 535866
|
| 19. |
80425870
|
[56] |
BRACKET
|
ZED
Superseded by part number: 425870
|
| 20. |
84822014
|
[56] |
TINE
|
PLO
Superseded by part number: 86632007
|
| 21. |
80136137
|
[56] |
SPACER
|
ZED
Superseded by part number: 84427925
|
| 22. |
80100067
|
[56] |
NUT
|
ZED
M8 Superseded by part number: 86528579
|
