纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (08-11) - VALVE ASSEMBLY, THERMAL BYPASS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
907 次

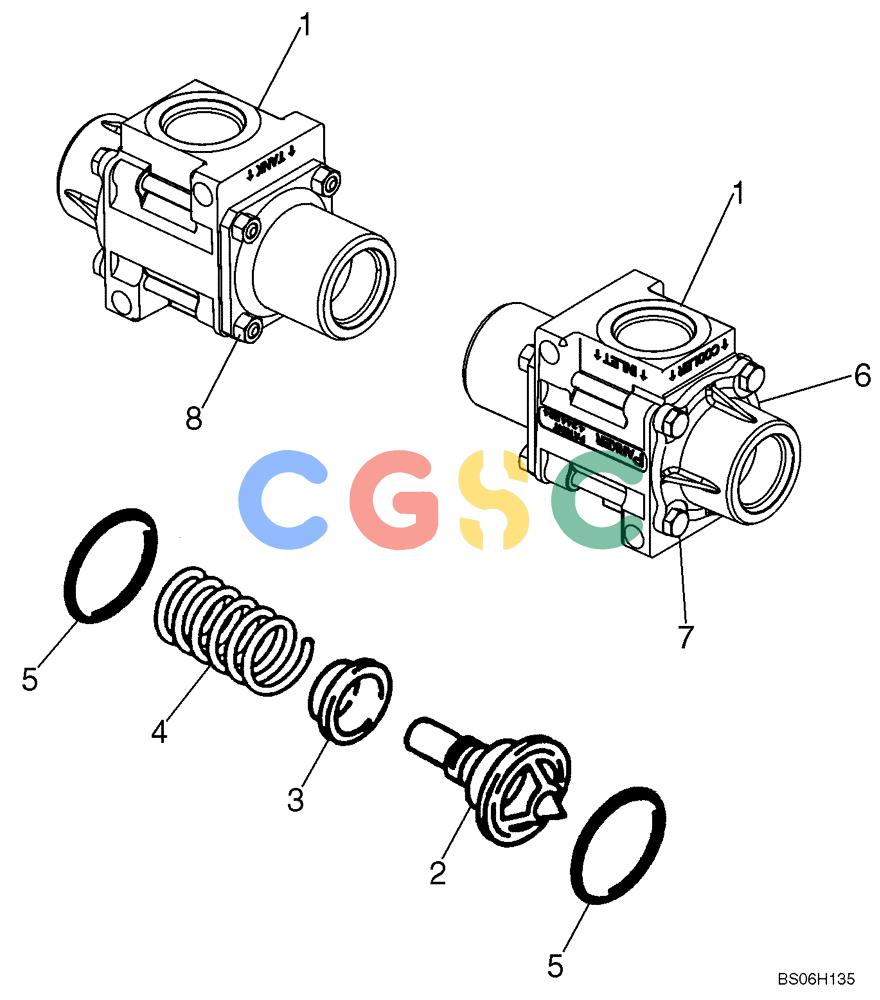

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87578785 | [1] | BY-PASS VALVE | BURVALVE, BY-PASS, Thermal Bypass; Incl. Ref 1 - 8; Check Valve Tee, Ref 8A, Fig 08-04 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONBody |
| 2. | N14569 | [1] | THERMOSTAT | CAS |
| 3. | A48899 | [1] | SEAL | CASWith Retainer |
| 5. | 238-5034 | [2] | O-RING,2.114" ID x 2.254" OD x 0.07" | CAS Superseded by part number: 14455180 |
| 6. | A48967 | [1] | CAP | CAS |
| 7. | 413-452 | [4] | BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5 | CAS Superseded by part number: 80280390 |
