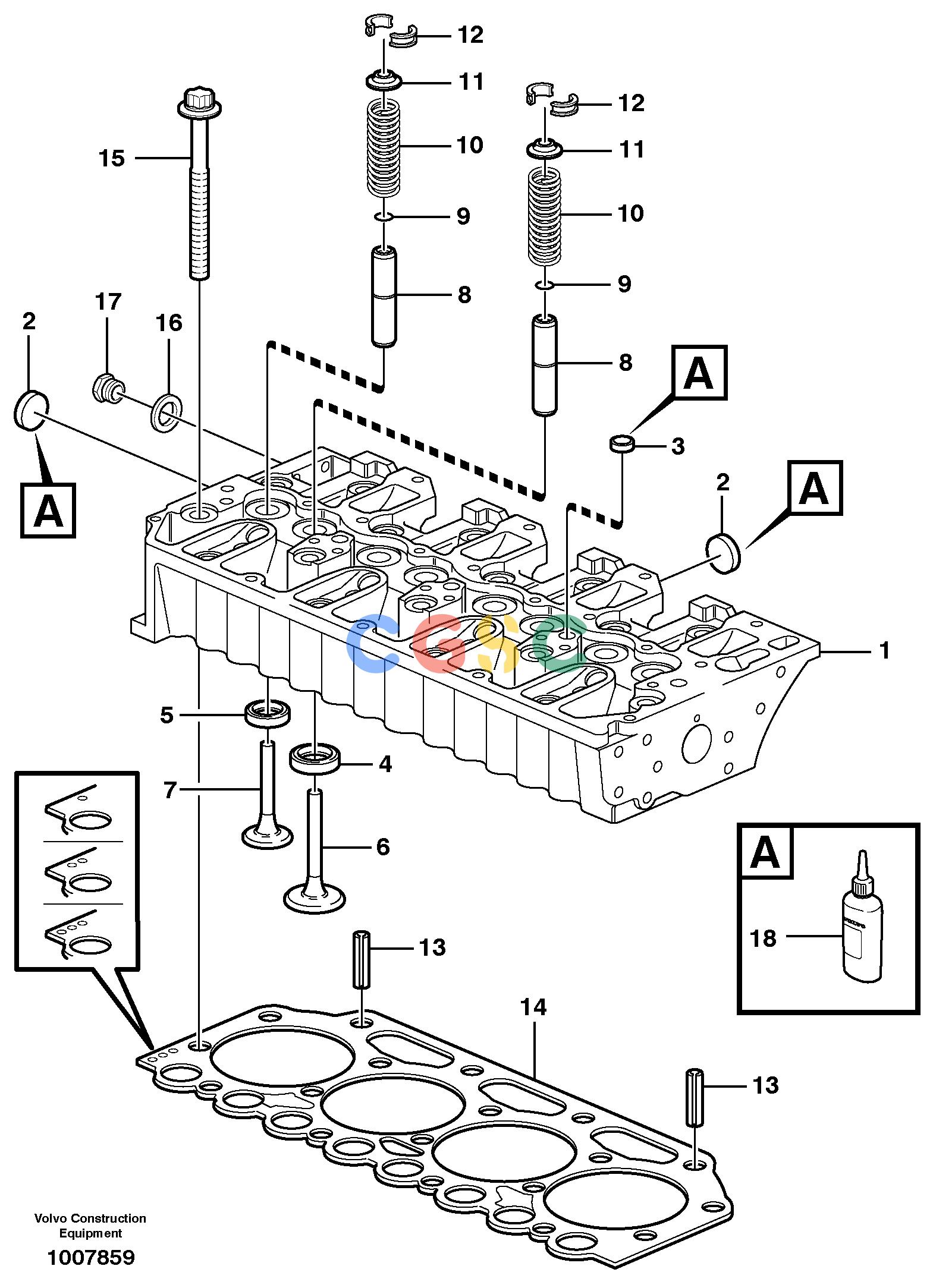

沃尔沃零件查询EW140B Cylinder headNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
983 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20405500
|
[1] |
Cylinder head
|
|
| 2. |
VOE20405728
|
[4] |
Sealing ring
|
|
| 3. |
VOE20412745
|
[3] |
Core plug
|
|
| 4. |
VOE20459962
|
[4] |
Valve seat
|
|
| 5. |
VOE20459963
|
[4] |
Valve seat
|
|
| 6. |
VOE20714469
|
[4] |
Inlet valve
|
|
| 7. |
VOE20565912
|
[4] |
Exhaust Valve
|
|
| 8. |
VOE20405897
|
[8] |
Valve guide
|
|
| 9. |
VOE11700348
|
[8] |
O-ring
|
|
| 10. |
VOE11700347
|
[8] |
Valve spring
|
|
| 11. |
VOE11700346
|
[8] |
Washer
|
|
| 12. |
VOE11700345
|
[16] |
Valve sleeve
|
|
| 13. |
VOE20405521
|
[2] |
Guide pin
|
|
| 14. |
VOE11700335
|
[REQ] |
Cylinder head gasket
|
THICK = 1,54 mm
MARKED WITH 1 HOLE
|
| 14. |
VOE11700336
|
[REQ] |
Cylinder head gasket
|
THICK = 1,64 mm
MARKED WITH 2 HOLE
|
| 14. |
VOE11700337
|
[REQ] |
Cylinder head gasket
|
THICK = 1,74 mm
MARKED WITH 3 HOLE
|
| 15. |
VOE11700334
|
[18] |
Screw
|
|
| 16. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 17. |
VOE20405716
|
[1] |
Plug
|
|
| 18. |
|
|
Locking agent
|
|
