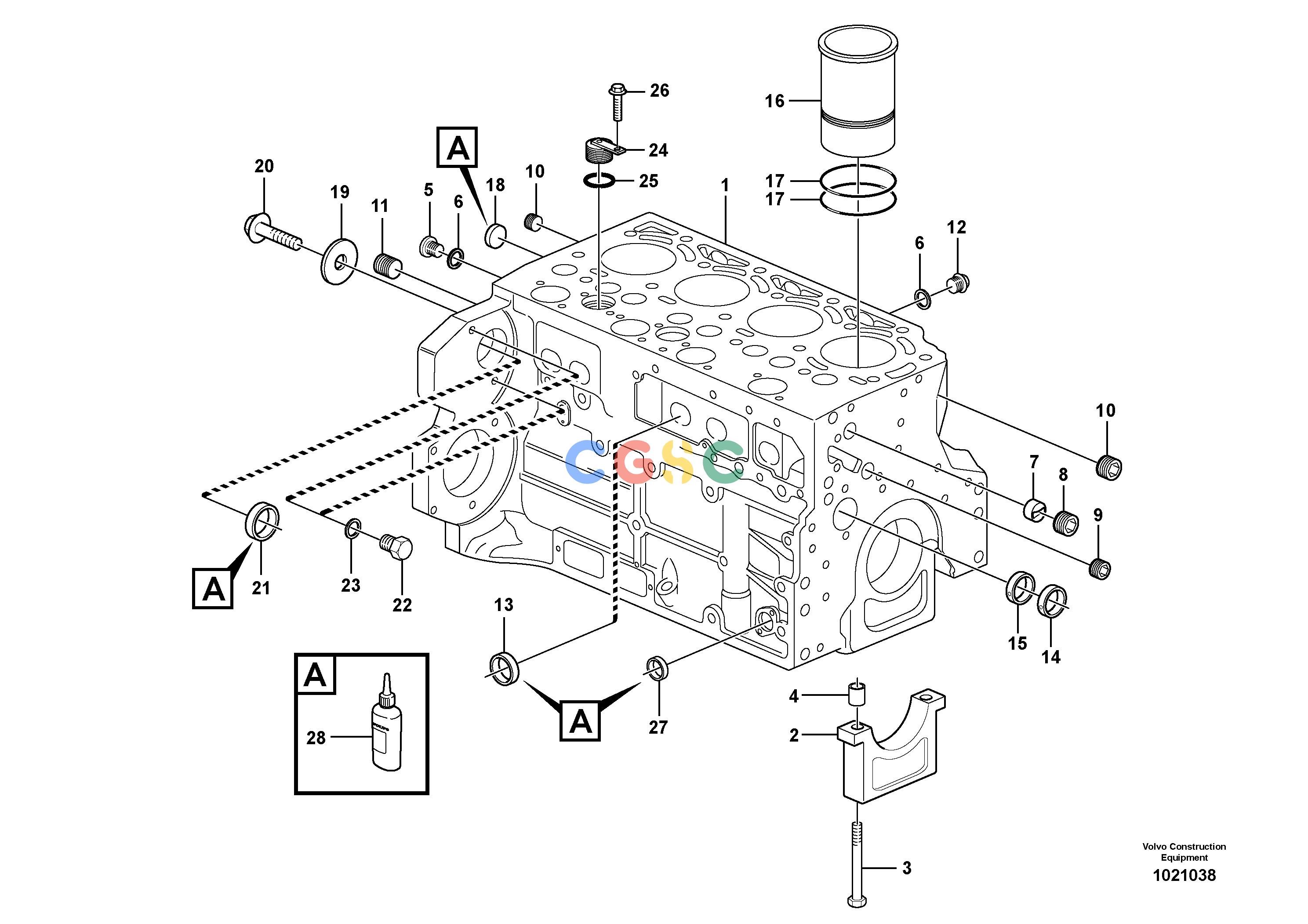

沃尔沃零件查询EW140B Cylinder blockNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
919 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20557730
|
[1] |
Cylinder Block
|
|
| 2. |
|
[5] |
Cap
|
|
| 3. |
VOE20405583
|
[10] |
Bolt
|
|
| 4. |
VOE11700278
|
[10] |
Bushing
|
|
| 5. |
VOE20460000
|
[1] |
Plug
|
|
| 6. |
VOE13969011
|
[2] |
Gasket
|
|
| 7. |
VOE20405584
|
[1] |
Guide sleeve
|
|
| 8. |
VOE20405717
|
[1] |
Plug
|
|
| 9. |
VOE20405719
|
[1] |
Plug
|
|
| 10. |
VOE20508600
|
[2] |
Plug
|
|
| 11. |
VOE20785813
|
[1] |
Plug
|
|
| 12. |
VOE20405716
|
[1] |
Plug
|
|
| 13. |
VOE20405721
|
[6] |
Core plug
|
|
| 14. |
VOE11700284
|
[4] |
Bearing bushing
|
|
| 15. |
VOE11700285
|
[1] |
Bearing bushing
|
|
| 16. |
|
[4] |
Cylinder Liner
|
NO PISTONS ETC.
|
| 17. |
VOE20412762
|
[8] |
O-ring
|
|
| 18. |
VOE20490808
|
[1] |
Cover
|
|
| 19. |
VOE20460087
|
[1] |
Washer
|
|
| 20. |
VOE20405898
|
[1] |
Screw
|
|
| 21. |
VOE20450778
|
[1] |
Core plug
|
|
| 22. |
VOE20441859
|
[2] |
Plug
|
|
| 23. |
VOE13947281
|
[1] |
Gasket
|
|
| 24. |
VOE20702078
|
[1] |
Plug
|
ENG - 01047118
|
| |
VOE20758137
|
[1] |
Plug
|
ENG 01047119 -
|
| 25. |
VOE20405728
|
[1] |
Sealing ring
|
|
| 26. |
VOE20711881
|
[1] |
Screw
|
|
| 27. |
VOE20412745
|
[1] |
Core plug
|
|
| 28. |
|
|
Locking agent
|
|
