纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (08-14) - VALVE, CONTROL - MOUNTING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
410 次

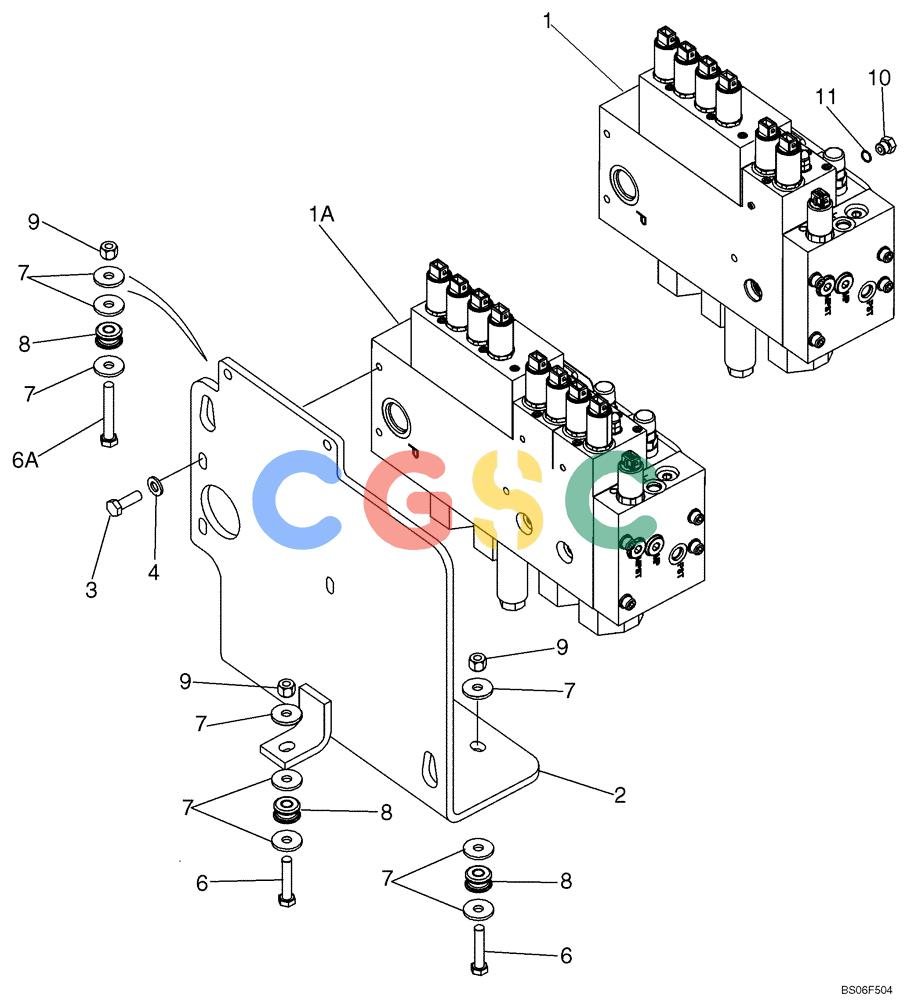

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87658572 | [1] | CONTROL VALVE | BURVALVE, CONTROL, Three Spool; See Figure 08-15 |
| 1A. | 87658573 | [1] | CONTROL VALVE | BURVALVE, CONTROL, Four Spool; See Figure 08-18 |
| 2. | 87609270 | [1] | BRACKET | BURSupport Bracket |
| 3. | 627-10030 | [3] | BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | CAS Superseded by part number: 9515003 |
| 4. | 896-11010 | [3] | WASHER,11mm ID x 21mm OD x 2.5mm Thk | CAS Superseded by part number: 86625252 |
| 6. | 814-10050 | [2] | BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8 | CAS Superseded by part number: 47110242, 120069 |
| 6A. | 814-10070 | [1] | BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8 | CAS Superseded by part number: 43144 |
| 7. | 496-81028 | [9] | WASHER,10.31mm ID x 31.75mm OD x 4.06mm Thk | CAS |
| 8. | 296684A1 | [3] | RUBBER MOUNTING | BRR |
| 9. | 832-10410 | [3] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 10. | 9841223 | [2] | PLUG,1-1/16" - 12 ORB | BELIncl. Ref 11; Four Spool to Three Spool; Models without Auxiliary Equipment |
| 11. | 237-6012 | [1] | O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro | CAS Superseded by part number: 72186120, 167266, 79051113 |
