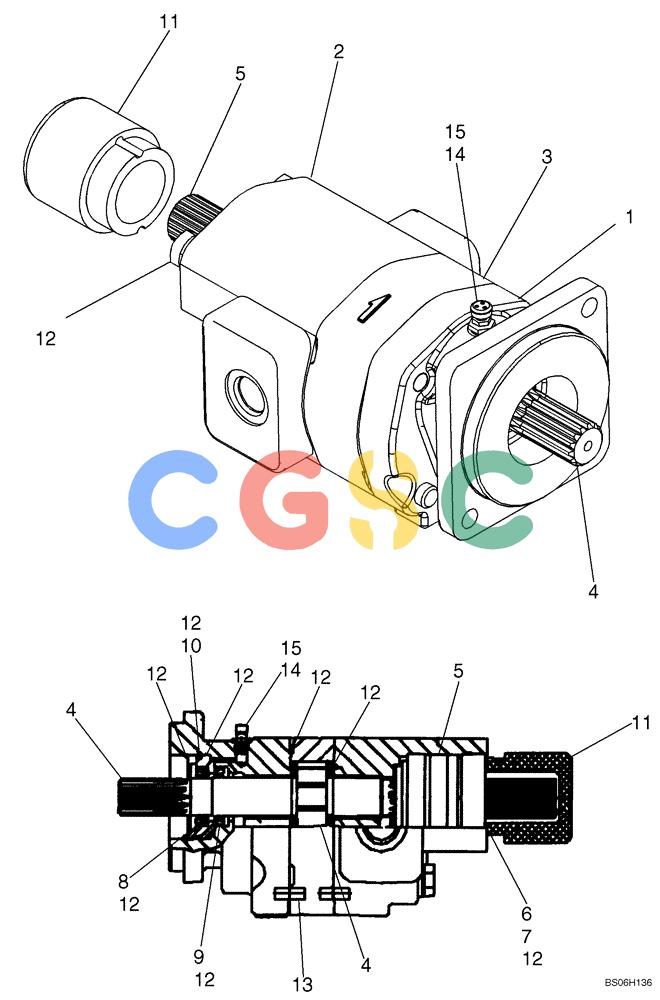

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (08-13) - PUMP ASSY, HYDRAULIC GEAR (WITH PTO) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
118 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87331905 | [1] | HYDROSTATIC PUMP,65.6 CC | BURPUMP, HYDROSTATIC, Equipment, Incl. Ref 1 - 15 |
| . . | 87331905R | [1] | REMAN-HYDROSTATIC PUMP | BUREquipment |
| . . | 87331905C | [1] | CORE-HYDROSTATIC PUMP | BURReturn Number |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONHousing Section |
| 6. | 87392104 | [1] | SEAL | BURRear Shaft |
| 7. | 87392167 | [1] | O-RING | BURRear Shaft Seal Retainer |
| 8. | 87392105 | [1] | SEAL | BUROuter Front Shaft |
| 9. | 87392106 | [1] | SEAL | BURInner Front Shaft |
| 10. | 87392169 | [1] | O-RING | BURFront Shaft Seal Retainer |
| 11. | 87392109 | [1] | HYD PUMP REPAIR KIT | BURShaft Cover; Includes Cover, (2) Socket Head Screws; Component Parts Not Serviced Separately |
| 12. | 87392108 | [1] | HYD PUMP REPAIR KIT | BURKIT, HYD PUMP REPAIR, Includes 26 Pieces (Hardware, Seals, Rings) |
| 14. | 1978259C1 | [1] | VALVE POPPET | IHAir Vent |
| 15. | 217-1034 | [1] | REDUCER,1/4"-18 Male NPTF x 1/8"-27 Female NPTF | CAS Superseded by part number: 87530428 |
