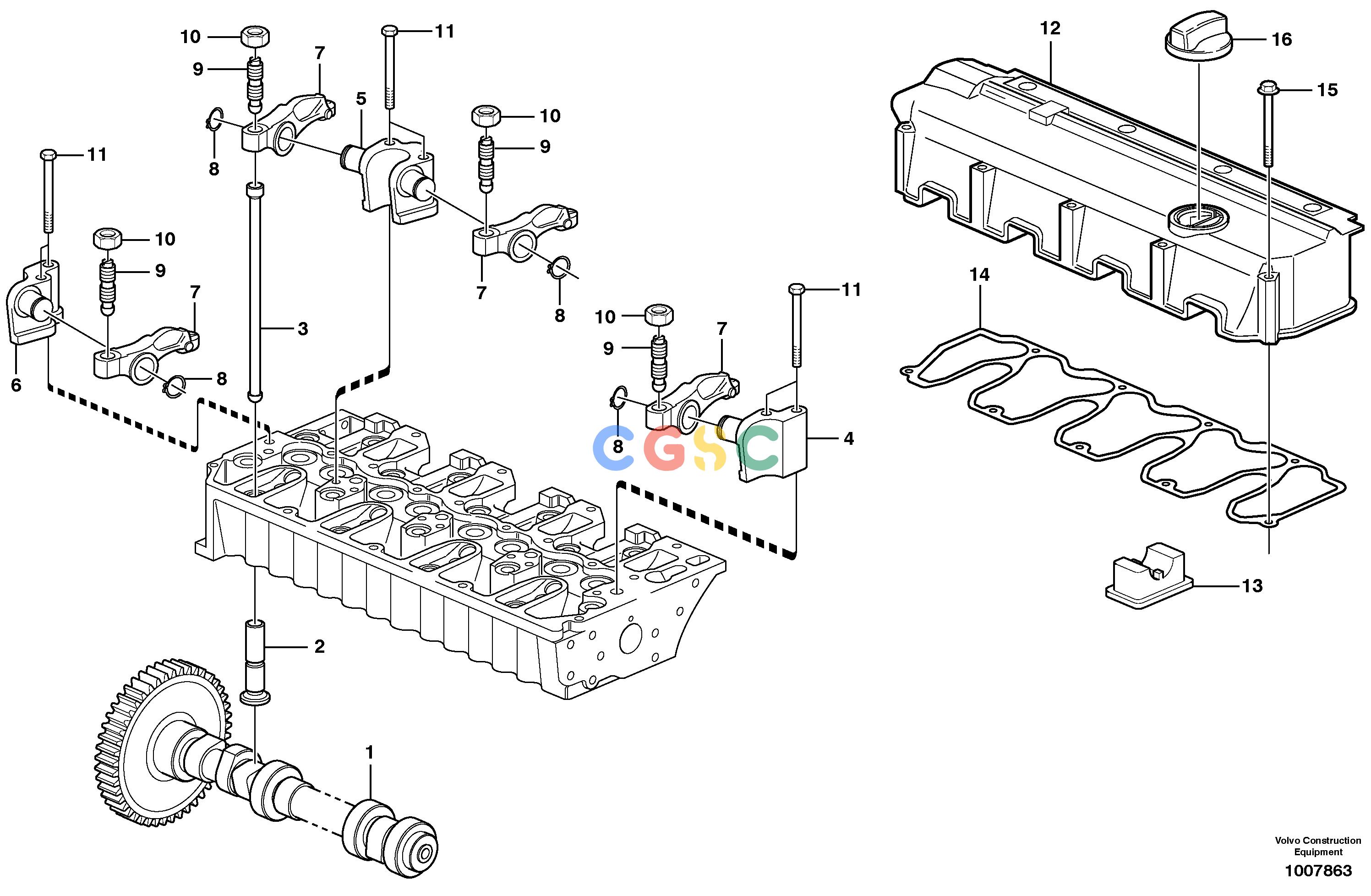

沃尔沃零件查询EW140B Valve mechanismNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
618 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21264838
|
[1] |
Camshaft
|
|
| 2. |
VOE11700366
|
[8] |
Tappet
|
|
| 3. |
VOE20405534
|
[8] |
Push rod
|
|
| 4. |
VOE11700367
|
[1] |
Bearing bracket
|
|
| 5. |
VOE11700368
|
[3] |
Bearing bracket
|
|
| 6. |
VOE11700369
|
[1] |
Bearing bracket
|
|
| 7. |
VOE21432929
|
[8] |
Rocker Arm
|
|
| 8. |
VOE945495
|
[8] |
Snap ring
|
|
| 9. |
VOE20405524
|
[8] |
Screw
|
|
| 10. |
VOE11700373
|
[8] |
Nut
|
|
| 11. |
VOE20405723
|
[10] |
Screw
|
|
| 12. |
VOE20725337
|
[1] |
Valve Cover
|
|
| 13. |
VOE20412590
|
[1] |
Cap
|
|
| 14. |
VOE20725315
|
[1] |
Gasket
|
|
| 15. |
VOE22278501
|
[9] |
Hexagon screw
|
|
| 16. |
VOE20412589
|
[1] |
Filler cap
|
|
