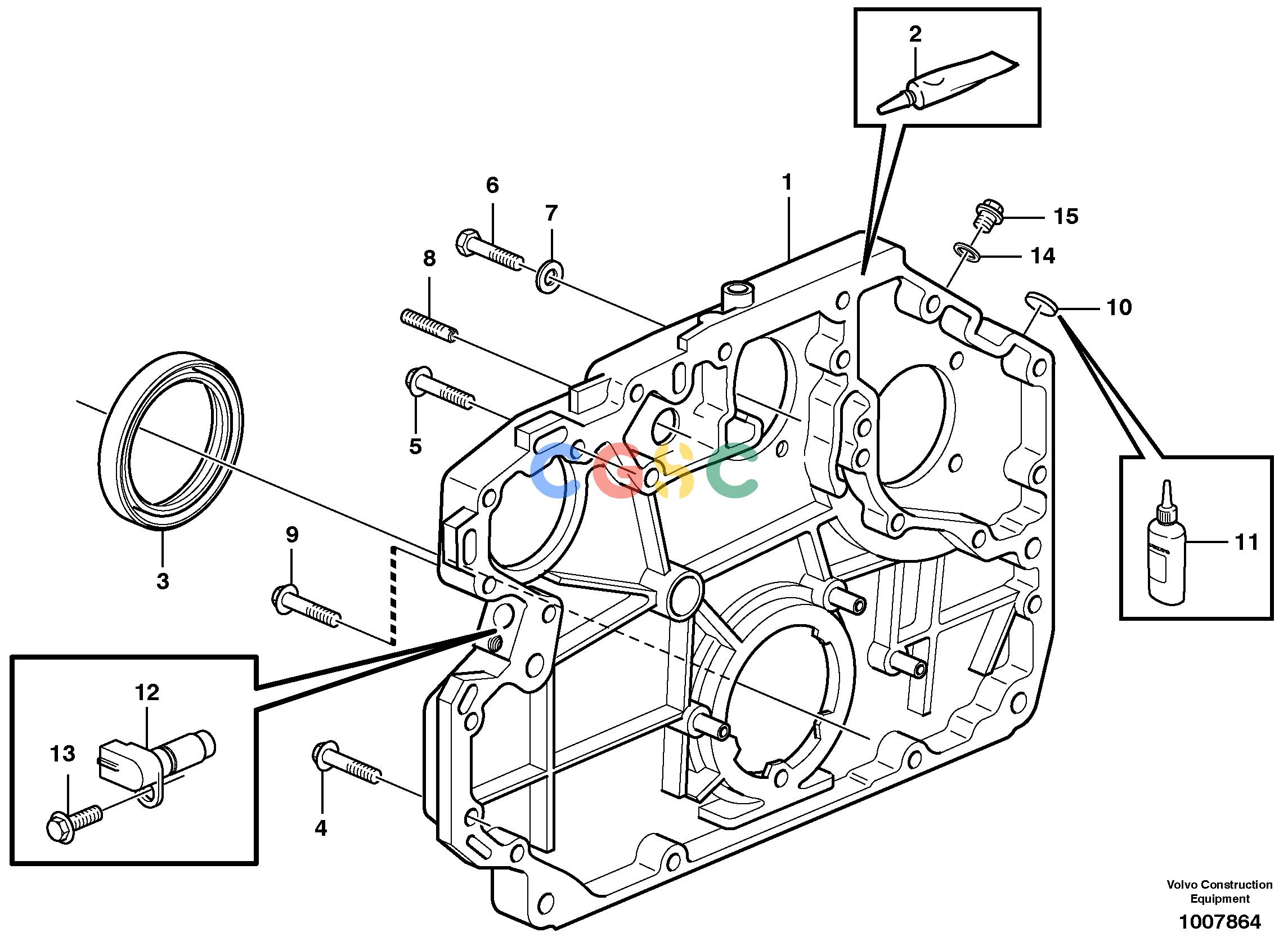

沃尔沃零件查询EW140B Timing gear casing and gearsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
170 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20592784
|
[1] |
Casing
|
|
| 2. |
VOE20549871
|
[REQ] |
Sealant
|
|
| 3. |
VOE21486084
|
[1] |
Lip seal
|
|
| 4. |
VOE20412324
|
[12] |
Screw
|
|
| 5. |
VOE20405709
|
[4] |
Screw
|
|
| 6. |
VOE20405653
|
[2] |
Screw
|
|
| 7. |
VOE13955900
|
[2] |
Washer
|
|
| 8. |
20450795
|
[1] |
Set Screw
|
|
| 9. |
VOE20405709
|
[1] |
Screw
|
|
| 10. |
VOE20405605
|
[1] |
Cover
|
|
| 11. |
|
[REQ] |
Locking agent
|
|
| 12. |
VOE20924088
|
[1] |
Sensor
|
SE2703
|
| 13. |
VOE20460055
|
[1] |
Screw
|
|
| 14. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 15. |
VOE20451012
|
[1] |
Screw
|
|
