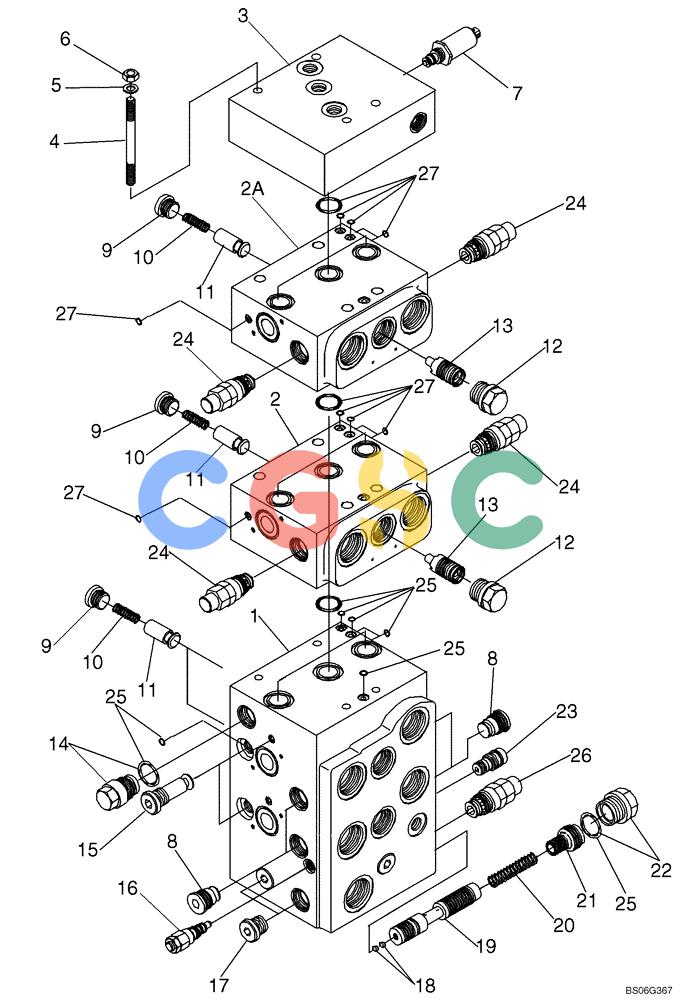

| . . | 87658573 | [1] | CONTROL VALVE | BURVALVE , CONTROL, Four Spool Control Valve, Incl. Ref 1 - 27 ; Also See Fig 08-19, 08-20, 08-21 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONHOUSING, Tilt and Lift |
| 3. | 87516595 | [1] | END PLATE | BUREnd Cover Plate |
| 4. | 87713189 | [4] | STUD | BURSTUD SCREW, M8 x 190; 10.9 Stud |
| 5. | 892-11008 | [4] | LOCK WASHER,M8 | IH Superseded by part number: 72187304, 83990583 |
| 6. | 87516610 | [4] | NUT | BURM8 Hex Nut |
| 7. | 87516636 | [1] | HYDRAULIC VALVE | LECFTDRE4; For Service of External Seals, Order 87516646 Seal Kit |
| . . | 87516646 | [1] | SEAL KIT | BURSeal Kit; Includes (3) O-Rings, (2) Backup Rings Superseded by part number: 84483008 |
| 8. | 87516613 | [4] | PLUG | BURMHDB16, k10/VFB Plug Superseded by part number: 76092438 |
| 9. | 8602923 | [4] | SCREW,Lock, M18 x 1.5 | FARM18 x 1.5 Plug |
| 10. | 87567795 | [4] | SPRING | BURSpring |
| 11. | 87567794 | [4] | CONE | BURCone |
| 12. | 87516612 | [2] | PLUG | BURM22 x 1.5 Plug |
| 13. | 87516611 | [2] | SPOOL | BURCompensator Spool |
| 14. | 87567789 | [1] | VALVE | BURPre-Charge Valve |
| 15. | 8604567 | [2] | VALVE, CHECK | FAR Superseded by part number: 8604758, 8604758, 8604760 |
| 16. | 87567788 | [1] | PRESSURE RELIEF VALVE | BURLoad Sense Relief Valve; For Service Of Seals, Order 87516641 Seal Kit Superseded by part number: 8602925 |
| . . | 87516641 | [1] | SEAL KIT | BURSeal Kit; Includes (3) O-Rings, (4) Backup Rings Superseded by part number: 87364780 |
| 17. | 87516623 | [2] | PLUG | BHBM22 x 1.5 Plug Superseded by part number: 87516612 |
| 18. | 87713199 | [2] | ORIFICE | BUROrifice, Unloading; Use With 87658573 Control Valve |
| 19. | 87713190 | [1] | SPOOL | BURSPOOL, INLET COMPENSATOR, Unloading Spool; Use With 87658573 Control Valve |
| 20. | 87567793 | [1] | SPRING | BURSpring |
| 21. | 87713194 | [1] | SLEEVE | BURSleeve, Unloading Valve |
| 22. | 87516622 | [1] | PLUG | BURM33 x 1.5 Plug |
| 23. | 87516616 | [1] | REGULATOR | BURLoad Sense Regulator; For Service Of External Seals, Order 87516644 Seal Kit Superseded by part number: 6902307 |
| . . | 87516644 | [1] | SEAL KIT | LECIncludes (2) O-Rings, (2) Backup Rings Superseded by part number: 87442968 |
| 24. | 87516614 | [4] | VALVE, PRESSURE RELI | BUREF Secondary Relief Valve; For Service Of External Seals, Order 87567796 Seal Kit Superseded by part number: 87572321 |
| . . | 87567796 | [4] | SEAL KIT | BURSeal Kit; Includes (3) O-Rings, (1) Backup Ring Superseded by part number: 8604789 |
| 25. | 87516638 | [1] | SEAL KIT | BURSeal Kit, Valve Block; Includes (18) O-Rings; (4) O-Rings Are For The Lift and Tilt Spools, See Figure 08-19 Superseded by part number: 8604575 |
| 26. | 87574408 | [1] | VALVE, PRESSURE RELI | BUREF Main Relief Valve; For Service Of External Seals, Order 87567797 Seal Kit Superseded by part number: 76092440 |
| . . | 87567797 | [1] | SEAL KIT | BURSeal Kit; Includes (2) O-Ring, (1) Backup Ring |
| 27. | 8604566 | [1] | SEAL KIT | FARSeal, Includes (12) O-Rings For Angle or Ripper Section, See Figure 08-20 or 08-21 For Angle or Ripper; Also Includes (2) Spool O-Rings |
