纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (08-17) - VALVE ASSY, THREE SPOOL, SECTION, ANGLE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
768 次

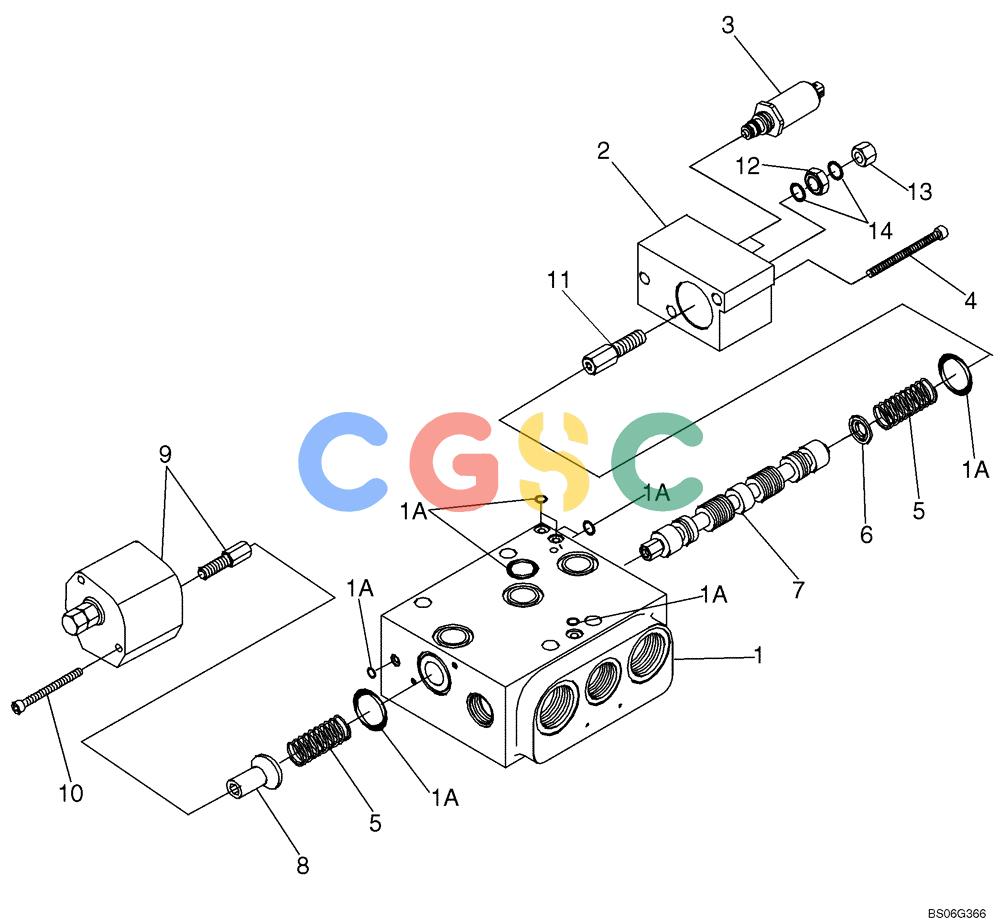

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87658572 | [1] | CONTROL VALVE | BURVALVE CONTROL, Three Spool Control Valve, Incl. Ref 1 - 14, Also See Fig 08-15, 08-16 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONHOUSING, Section, Angle; Also See Figure 08-15 |
| 1A. | 8604566 | [1] | SEAL KIT | FARSeal; Includes (12) O-Rings; If Used |
| 2. | 87516633 | [1] | COVER | BURAngle Cover |
| 3. | 87516634 | [2] | PRESSURE RELIEF VALVE | BURPressure Reducing Valve, FTDRE2; For Service Of External Seals, Order 87516646 Seal Kit; Order 87516645 For Filter |
| . . | 87516645 | [2] | FILTER | LECService |
| . . | 87516646 | [2] | SEAL KIT | BURSeal Kit; Includes (3) O-Rings; Also Includes (2) Backup Rings Not Used In This Application Superseded by part number: 84483008 |
| 4. | 864-5050 | [3] | HEX SOC SCREW,M5 x 50mm, Cl 8.8 | CASSCREW Superseded by part number: 190003860281 |
| 5. | 87516617 | [2] | SPRING | BURSPRING |
| 6. | 8604582 | [1] | RETAINER | FAR |
| 7. | 87713183 | [1] | SPOOL | BURAngle Spool |
| 8. | 87311984 | [1] | RETAINER | FARRETAINER |
| 9. | 87516586 | [1] | COVER | BURCover, Pilot, Angle |
| 10. | 864-5055 | [2] | HEX SOC SCREW,M5 x 55mm, Cl 8.8 | FARM5 x 55 Socket Head Screw Superseded by part number: 87657975 |
