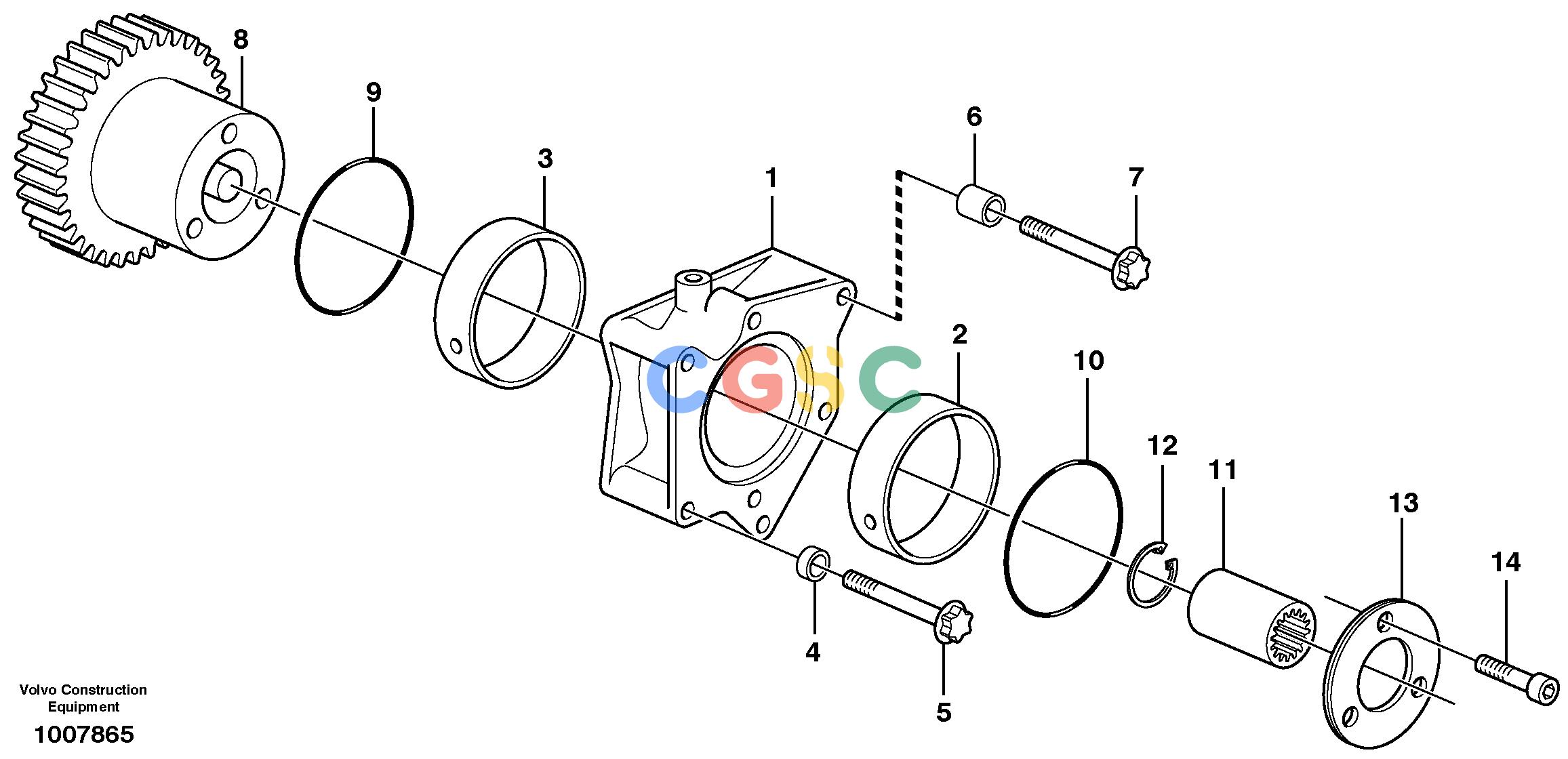

沃尔沃零件查询EW140B Pump drive power take-offNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
624 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20460518
|
[1] |
Bearing flange
|
|
| 2. |
VOE20450809
|
[1] |
Bushing
|
|
| 3. |
VOE20450807
|
[1] |
Bushing
|
|
| 4. |
VOE20544299
|
[3] |
Bushing
|
|
| 5. |
VOE20450820
|
[3] |
Screw
|
E PROD ENG - 2007/02
|
| 5. |
VOE21077470
|
[3] |
Hex. socket screw
|
L PROD ENG 2007/03 -
|
| 6. |
VOE20459936
|
[1] |
Bushing
|
|
| 7. |
VOE22316512
|
[1] |
Six point screw
|
|
| 8. |
VOE21249504
|
[1] |
Gear
|
|
| 9. |
VOE20450818
|
[1] |
O-ring
|
|
| 10. |
VOE20460524
|
[1] |
Sealing ring
|
|
| 11. |
VOE20460520
|
[1] |
Sleeve
|
|
| 12. |
VOE20460522
|
[1] |
Circlip
|
|
| 13. |
VOE20450811
|
[1] |
Thrust washer
|
|
| 14. |
VOE20450822
|
[3] |
Screw
|
|
