纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (08-23) - CYLINDER ASSY. - TILT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
482 次

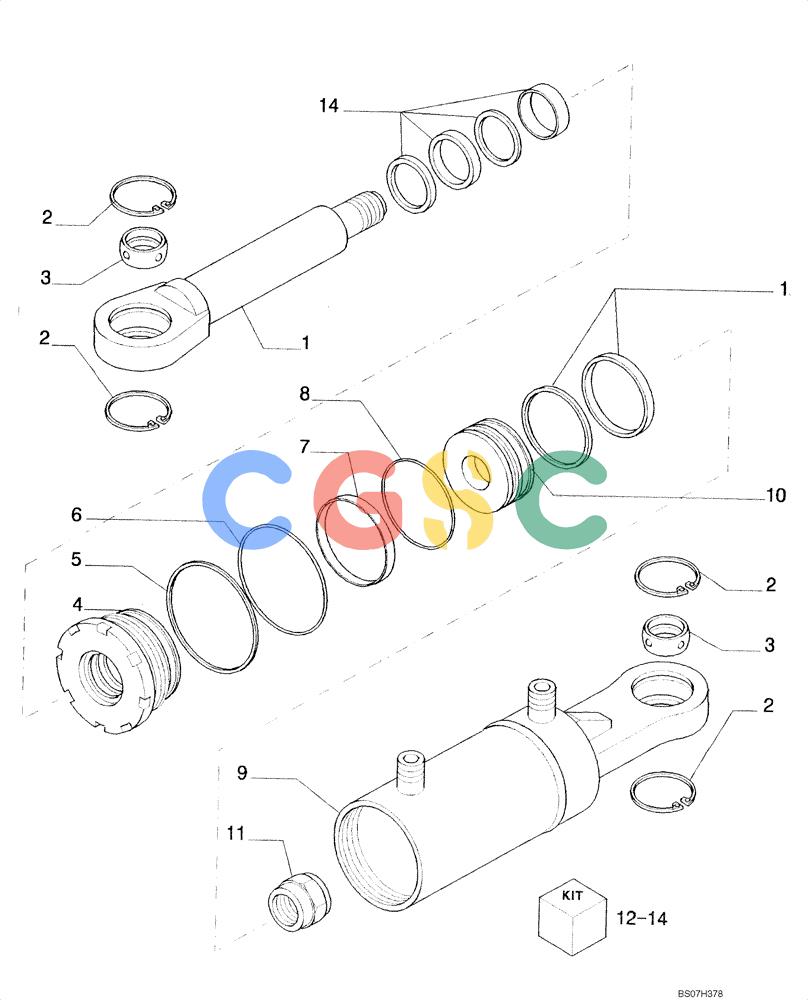

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 76089278 | [1] | OPERATING CYLINDER | LECAssy., Tilt Incl Ref., 1 - 14 Superseded by part number: 76043921 |
| . . | 76043921R | [1] | REMAN-HYD CYLINDER | LECD150B CRAWLER DOZER TIER 3 (HYDRO), Assy., Tilt (10/07-), Reman for New PN 76089278 |
| . . | 76043921C | [1] | CORE-HYD CYLINDER | LECReturn Number |
| 1. | 76066252 | [1] | ROD | LEC |
| 2. | 76066253 | [4] | LOCKING RING | LEC Superseded by part number: 382103 |
| 3. | 76066254 | [2] | BUSHING,45mm ID | LEC |
| 4. | 76066255 | [1] | BASE PLATE | LEC |
| 5. | 76066256 | [1] | CIRCLIP | LEC |
| 6. | 76066257 | [1] | O-RING | LEC |
| 7. | 76066258 | [1] | WASHER, THRUST | LECWASHER,THRUST |
| 8. | 76066259 | [1] | O-RING | LEC |
| 9. | 76066260 | [1] | HYD. TUBE,125mm Bore Dia | LEC |
| 10. | 76066261 | [1] | PISTON | LEC |
| 11. | 76066264 | [1] | LOCK NUT | LEC |
| 12. | 76066269 | [1] | SEAL KIT | LECFor Pistons |
| 14. | 76066270 | [1] | SEAL KIT | LECFor the Rod |
