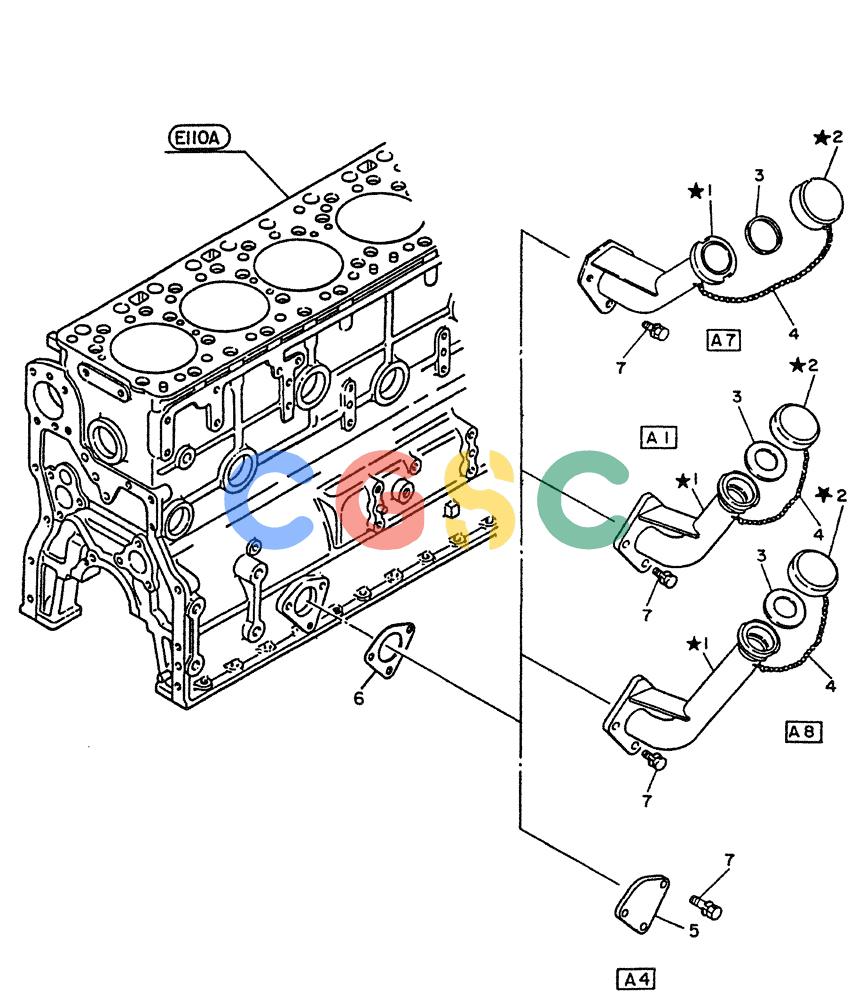

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (01-006) - FILTER OIL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
781 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | A1 | [1] | 41,81(STD.),46,51,55,56,71 | |
| . . | A4 | [1] | 41,81(DPT.),70,76 | |
| . . | A7 | [1] | 43 | |
| . . | A8 | [1] | 73 | |
| 1-4. | VG1525596062 | [1] | FILLER ASSY-OIL (FOR A7) | |
| 1-4. | VG1525596064 | [1] | ENGINE OIL FILTER | KOBFILLER ASSY-OIL (FOR A8) |
| 1-4. | VG1525596015 | [1] | FILLER CAP | KOBFILLER ASSY-OIL (FOR A1) |
| 2-3. | VG1525397003 | [1] | CAP | KOBCAP ASSY-OIL (FOR A1,A7,A8) |
| 3. | VG1527097000 | [1] | GASKET | KOBGASKET (FOR A1,A7,A8) |
| 4. | VG2143196000 | [1] | CHAIN | KOBCHAIN (FOR A1,A7,A8) |
| 5. | VG1102790000 | [1] | COVER-BLOCK (FOR A4) | |
| 6. | VG1526990001 | [1] | GASKET | KOBGASKET |
| 7. | VG0811082562 | [3] | BOLT BOLT,W/WASHER (FOR A1,A7,A8) | BOLT BOLT,W/WASHER (FOR A1,A7,A8) |
| 7. | VG0811082062 | [3] | BOLT | KOBBOLT,W/WASHER (FOR A4) |
