神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (01-007[01]) - MOUTING-ENGINE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
367 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | A5 | [1] | 56 | |
| . . | B6 | [1] | 71 | |
| . . | B7 | [1] | 70,76 | |
| 1. | VG11246Z2010 | [2] | BRACKET-MOUNTING (FOR B6,B7) | |
| 2. | VG0812443510 | [8] | BOLT (FOR B6,B7) | |
| 3. | VG0891514410 | [8] | WASHER WASHER-SPRING (FOR B6,B7) | WASHER WASHER-SPRING (FOR B6,B7) |
| 4. | VG11223Z2007 | [2] | CUSHION-RUBBER (FOR B7) | |
| 5. | VG0813442510 | [2] | BOLT (FOR B6,B7) | |
| 6. | VG0891524400 | [2] | SET OF THRUST WASHER | KOBWASHER-SPRING (FOR B6,B7) |
| 7. | VG0891114210 | [4] | NUT NUT (FOR B6,B7) | NUT NUT (FOR B6,B7) |
| 8. | VG0891514210 | [4] | WASHER | KOBWASHER WASHER-SPRING (FOR B6,B7) Superseded by part number: VG089151421A |

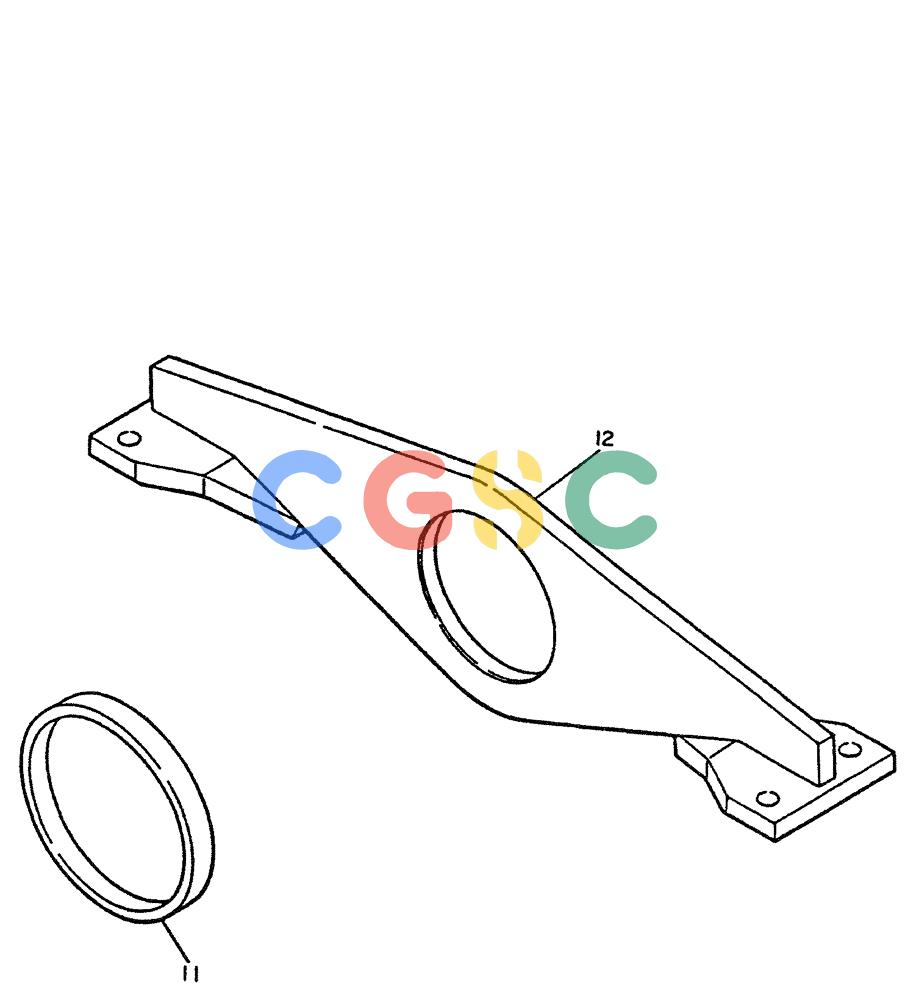

| 11. | VG1126196001 | [1] | BUSHING | KOBBUSHING-TRUNNION (FOR A5) |
| 12. | VG1126296500 | [1] | SUPPORT-TRUNNION (FOR A5) | |
