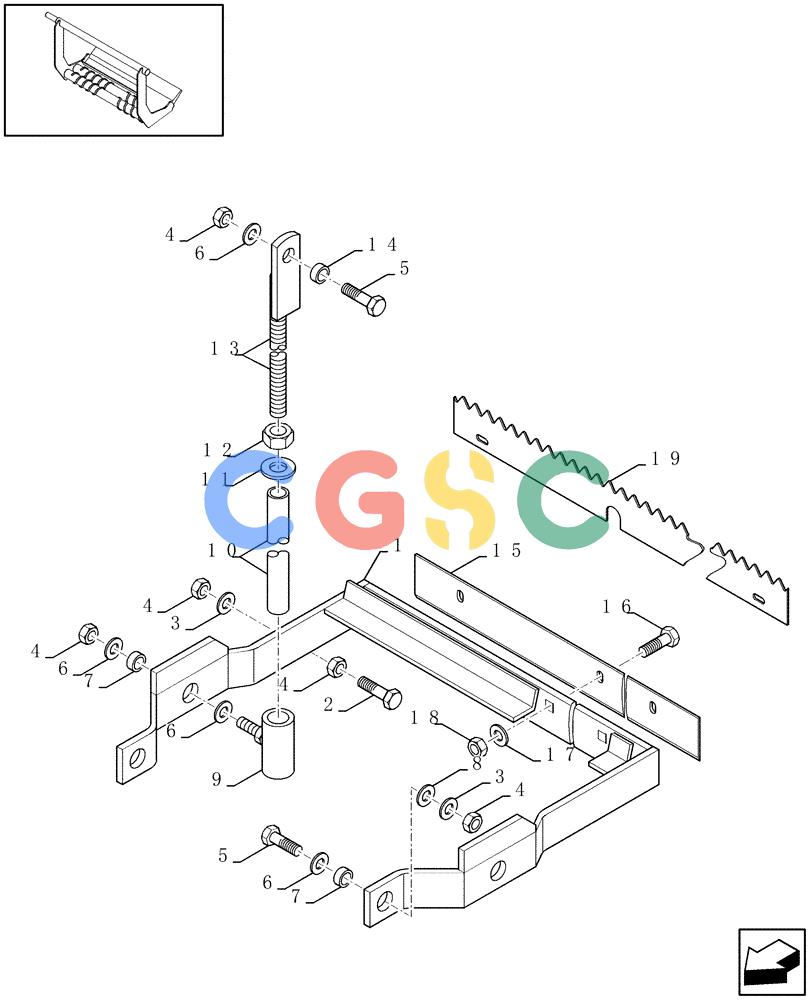

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (15.10[01]) - KNIFE FRAME Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
594 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84429245
|
[1] |
FRAME
|
PLO
|
| 2. |
80120070
|
[2] |
SCREW
|
ZED
M10x60 Superseded by part number: 120070
|
| 3. |
80140045
|
[4] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 4. |
100016
|
[10] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 5. |
80120111
|
[4] |
SCREW
|
ZED
M10x30 Superseded by part number: 43140
|
| 6. |
80378244
|
[8] |
LOCK WASHER
|
ZED
10MM Superseded by part number: 378244
|
| 7. |
84024869
|
[4] |
BUSHING
|
PLO
|
| 8. |
80140042
|
[2] |
WASHER
|
ZED
10MM Superseded by part number: 140042
|
| 9. |
84024734
|
[2] |
GUIDE
|
PLO
|
| 10. |
84025092
|
[2] |
TUBE,17.2 mm OD, 260 mm Length
|
PLO
|
| 11. |
80378245
|
[2] |
WASHER
|
ZED
12MM Superseded by part number: 378245
|
| 12. |
337475
|
[2] |
NUT,M12, Cl 10
|
BHB
|
| 13. |
84024737
|
[2] |
THREADED TIE-ROD
|
PLO
|
| 14. |
84024749
|
[2] |
SPACER,10.5mm ID x 16mm OD x 8.5mm L
|
PA
|
| 15. |
84429246
|
[1] |
KNIFE
|
PLO
|
| 16. |
80120032
|
[8] |
BOLT
|
ZED
M6x20 Superseded by part number: 9706703
|
| 17. |
80140041
|
[8] |
WASHER
|
ZED
6MM Superseded by part number: 87033737
|
| 18. |
80353308
|
[8] |
NUT
|
ZED
M6 Superseded by part number: 353308
|
| 19. |
84320568
|
[1] |
DIA KIT, HARVESTER
|
PLO
|
