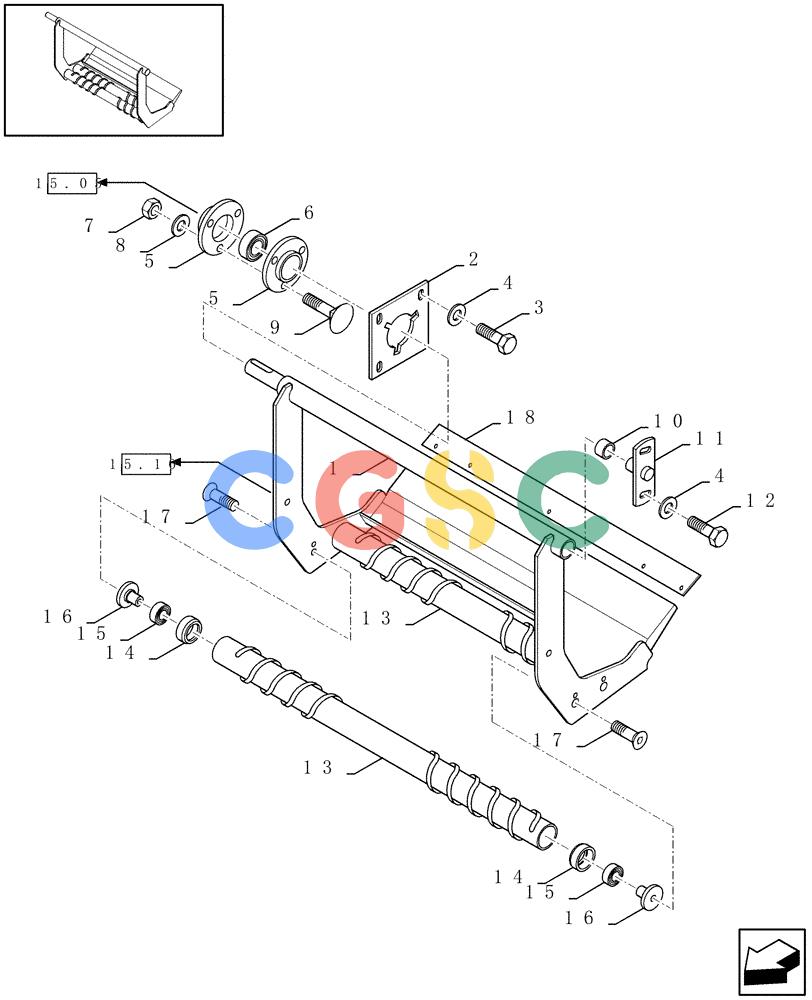

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (15.09[01]) - DUCKBILL Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
310 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84429259
|
[1] |
ARM
|
PLO
|
| 2. |
84024766
|
[1] |
COVER PLATE
|
PLO
|
| 3. |
80120109
|
[3] |
SCREW
|
ZED
M10x20 Superseded by part number: 43138
|
| 4. |
80378244
|
[5] |
LOCK WASHER
|
ZED
10MM Superseded by part number: 378244
|
| 5. |
80040697
|
[2] |
FLANGE
|
ZED
Superseded by part number: 86974088
|
| 6. |
80325106
|
[1] |
BEARING ASSY
|
ZED
Superseded by part number: 325106
|
| 7. |
100016
|
[3] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 8. |
80140045
|
[3] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 9. |
80338949
|
[3] |
CARRIAGE BOLT
|
ZED
M10x25 Superseded by part number: 338949
|
| 10. |
84024752
|
[1] |
GUIDE BUSHING,25mm ID x 28mm OD x 30mm L
|
PLO
|
| 11. |
84024780
|
[1] |
COVER PLATE
|
PLO
|
| 12. |
80043139
|
[2] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 13. |
84024660
|
[2] |
ROLLER
|
PLO
|
| 14. |
84024651
|
[4] |
BEARING HOUSING,34 mm ID x 40 mm OD x 18 mm
|
PLO
|
| 15. |
80362804
|
[4] |
BEARING ASSY
|
ZED
Superseded by part number: 87302841
|
| 16. |
84024650
|
[4] |
FLANGE
|
PLO
|
| 17. |
80320772
|
[4] |
SCREW
|
ZED
Superseded by part number: 320772
|
| 18. |
84024909
|
[1] |
DIA KIT, HARVESTER
|
PLO
|
