纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-08) - SHAFT, PIVOT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
604 次

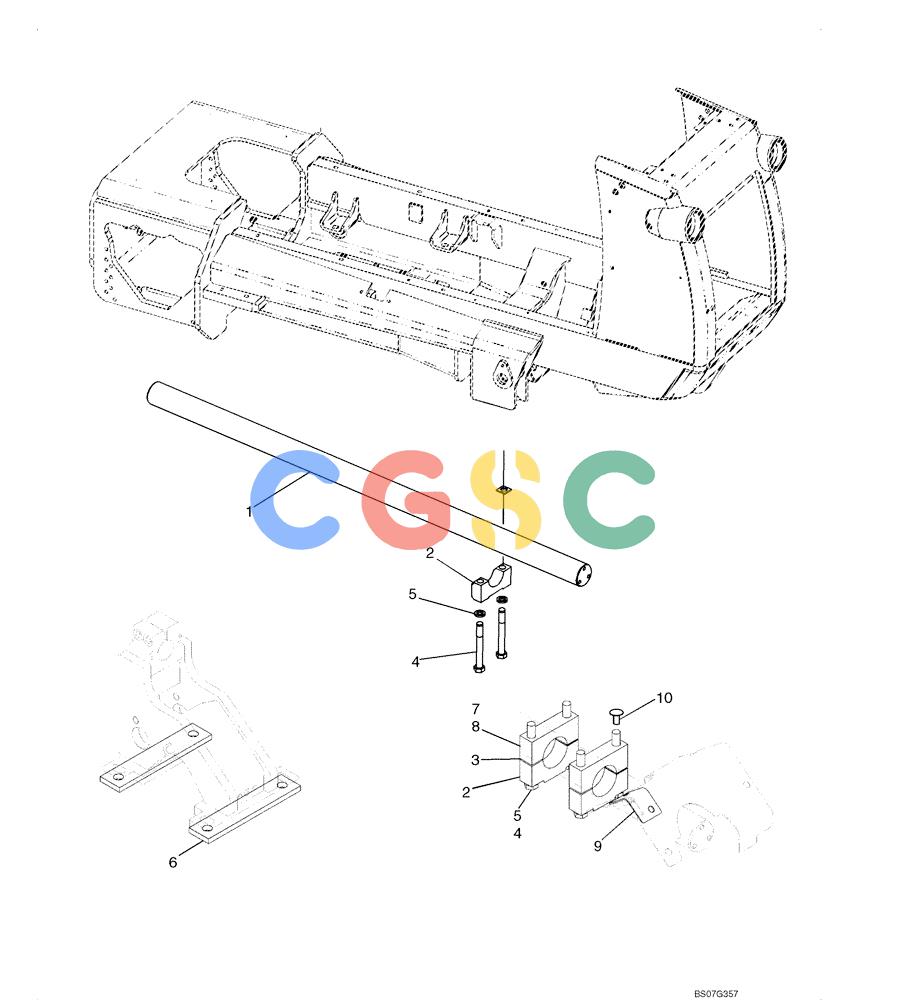

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87645596 | [1] | SHAFT | BURPivot Shaft, 2189.3 mm (86-1/4 in) Long; 74 Gage Narrow Extended Long Track (XLT) and Long Track (LT) Models |
| 1. | 87645601 | [1] | SHAFT | BURPivot Shaft, 2443.2 mm (96-3/16 in) Long; 84 Gage Wide Track (WT) or Low Ground Pressure (LGP) Models |
| 2. | 87645604 | [4] | CLAMP | BURCLAMP, Pivot Shaft, Lower; Used for All Models |
| 3. | R26802 | [4] | SPACER | CASSPACER |
| 4. | 87306413 | [8] | BOLT,Hex, M24 x 210mm, Cl 10.9 | BRR |
| 5. | 896-12024 | [8] | WASHER,26mm ID x 44mm OD x 5mm Thk | IH Superseded by part number: 87016610 |
| 6. | 87580620 | [4] | SPACER | BURSpacer, CELT Only |
| 7. | 87645607 | [4] | CLAMP | BURCLAMP, Upper CELT Only |
| 8. | 87645603 | [4] | CLAMP | BURCLAMP, Upper CLT Only |
| 9. | 87545605 | [2] | Cover, Rear Track - CLT Only | |
| 10. | 353-432 | [4] | PLUG,7/8" Hole, Nylon | CASIf Used |
