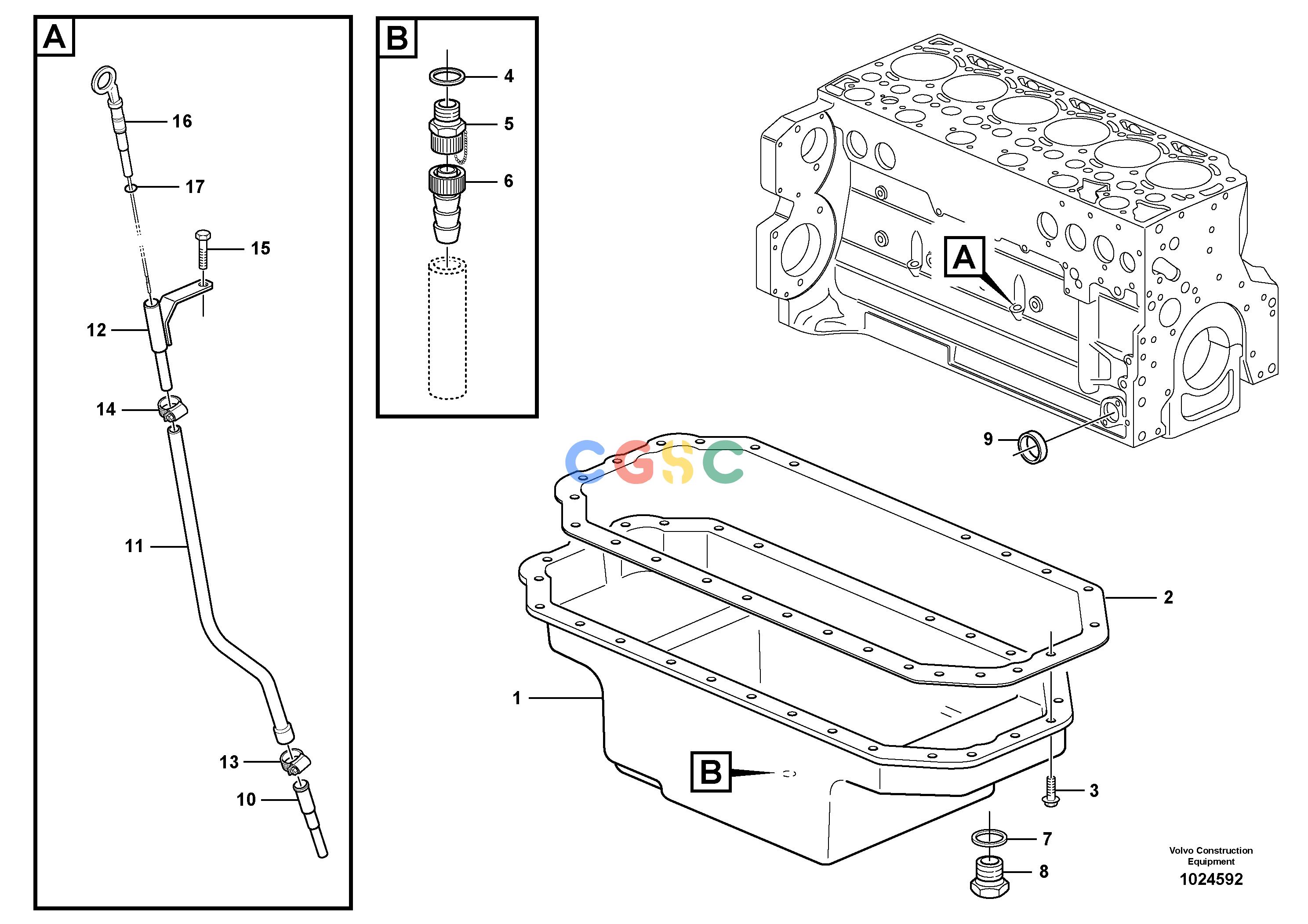

沃尔沃零件查询EW160C Oil sumpS/N 120012-122219 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
561 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20840491
|
[1] |
Oil pan
|
|
| 2. |
VOE20460022
|
[1] |
Gasket
|
|
| 3. |
VOE20405792
|
[28] |
Screw
|
|
| 4. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 5. |
VOE22879098
|
[1] |
Drain valve
|
|
| 6. |
VOE20478246
|
[1] |
Hose connection
|
|
| 7. |
VOE20515173
|
[1] |
Gasket
|
|
| 8. |
VOE20515171
|
[1] |
Plug
|
|
| 9. |
VOE20412745
|
[1] |
Core plug
|
|
| 10. |
VOE23091815
|
[1] |
Guide tube
|
|
| 11. |
VOE20840336
|
[1] |
Guide tube
|
|
| 12. |
VOE20840347
|
[1] |
Bracket
|
|
| 13. |
VOE20460214
|
[1] |
Clip
|
|
| 14. |
VOE20460215
|
[1] |
Clip
|
|
| 15. |
VOE20405792
|
[1] |
Screw
|
|
| 16. |
VOE21928687
|
[1] |
Dipstick
|
|
| 17. |
VOE20460218
|
[1] |
O-ring
|
|
