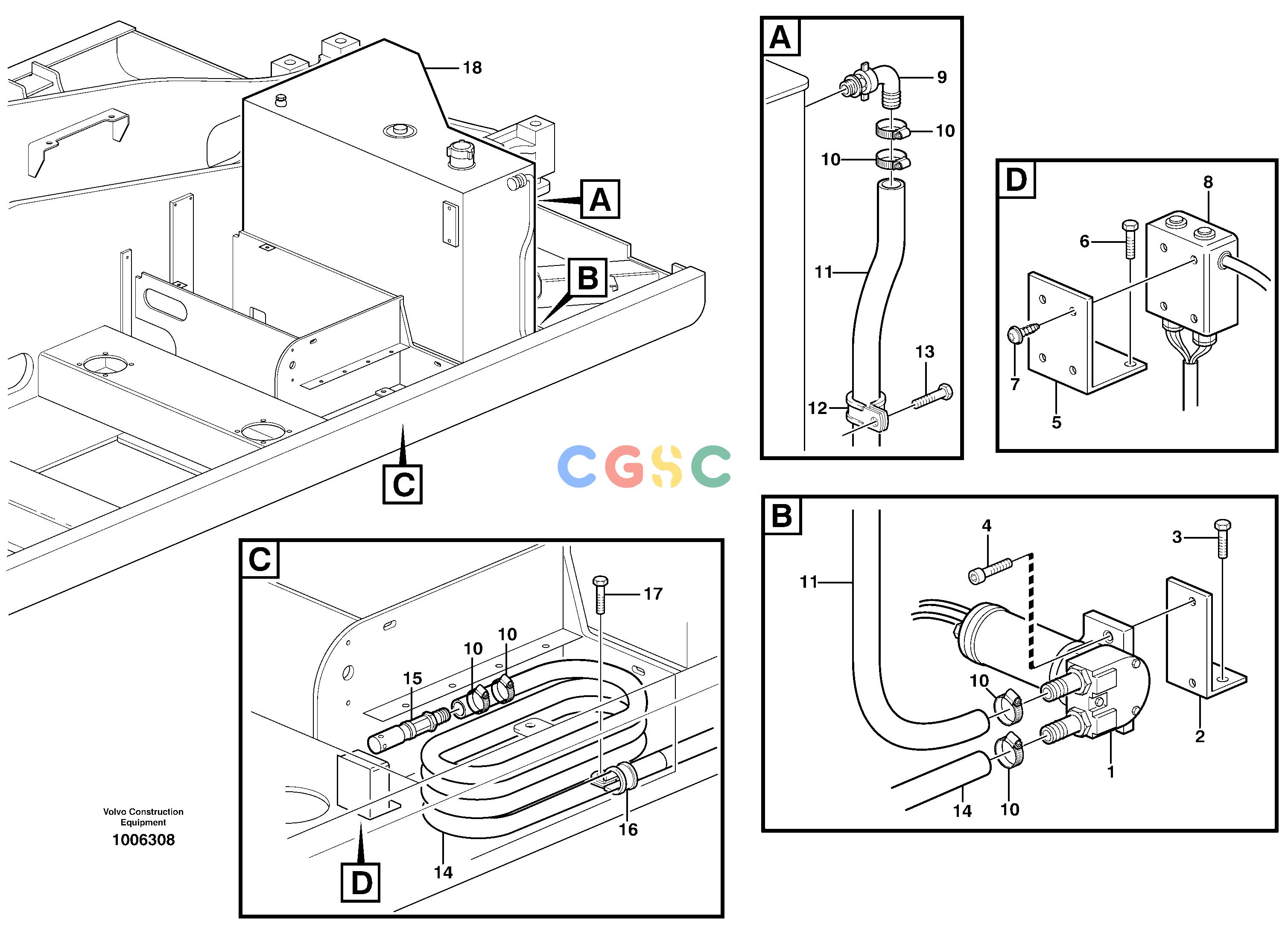

沃尔沃零件查询EW180B Fuel filling pump, electricalNone NoneNone14312001Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
620 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Fuel pump
|
|
| 2. |
VOE14376096
|
[1] |
Bracket
|
|
| 3. |
VOE997434
|
[2] |
Hexagon screw
|
|
| 4. |
VOE959239
|
[2] |
Hex. socket screw
|
|
| 5. |
VOE14376099
|
[1] |
Retainer
|
|
| 6. |
VOE997434
|
[2] |
Hexagon screw
|
|
| 7. |
VOE969465
|
[4] |
Six point socket screw
|
|
| 8. |
|
[1] |
Switch box
|
|
| 9. |
|
[1] |
Hose Nipple
|
|
| 10. |
VOE14374209
|
[4] |
Hose clamp
|
|
| 11. |
VOE14382200
|
[1] |
Fuel hose
|
|
| 12. |
VOE981904
|
[1] |
Clamp
|
|
| 13. |
VOE983241
|
[1] |
Hexagon screw
|
|
| 14. |
VOE14382201
|
[1] |
Hose
|
|
| 15. |
|
[1] |
Valve
|
|
| 16. |
VOE981904
|
[1] |
Clamp
|
|
| 17. |
VOE983241
|
[1] |
Hexagon screw
|
|
| 18. |
|
[1] |
Fuel tank
|
|
