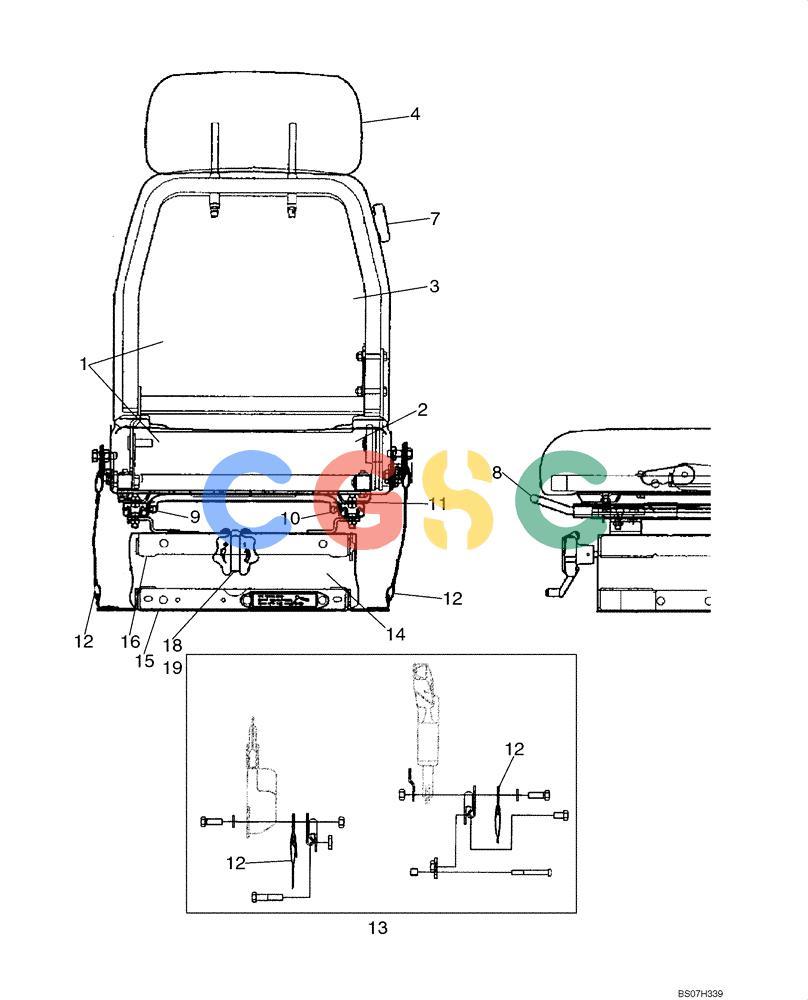

| . . | 87450937 | [1] | SEAT ASSY. | BURMechanical Suspension; Black Vinyl; Incl. Ref 1 - 19, Except Where Cloth Is Noted |
| . . | 87450938 | [1] | SEAT ASSY. | BURMechanical Suspension; Gray Cloth; Incl. Ref 1 - 19, Except Where Vinyl Is Noted |
| 1. | 87454143 | [1] | SEAT ACCESSORY | BURSeat; Black Vinyl; Includes Seat and Backrest Cushion |
| 1A. | 87454147 | [1] | SEAT ACCESSORY | BURSeat; Gray Cloth; Includes Seat and Backrest Cushion |
| 2. | 87454144 | [1] | SEAT ACCESSORY | BURCushion, Seat; Black Vinyl |
| 2A. | 87454148 | [1] | SEAT ACCESSORY | BURCushion, Seat; Gray Cloth |
| 3. | 87454145 | [1] | SEAT ACCESSORY | BURBackrest Cushion; Black Vinyl |
| 3A. | 87454149 | [1] | SEAT ACCESSORY | BURBackrest Cushion; Gray Cloth |
| 4. | 87454146 | [1] | SEAT ACCESSORY | BURBackrest, Upper; Black Vinyl |
| 4A. | 87454150 | [1] | SEAT ACCESSORY | BURBackrest, Upper; Gray Cloth |
| . . | 176091A1 | [1] | PACKAGE,SERVICE | CASKit, Hog Ring; Cushion Retainer; Package Of 50 |
| . . | 87405470 | [1] | SEAT ACCESSORY | BURCover, Back; Vinyl; Includes Manual Holder; Incl. Ref 5 Superseded by part number: 86639817 |
| . . | 1981820C2 | [1] | PACKAGE, REPAIR | IHCover, Back; Cloth; Includes Manual Holder; Incl. Ref 5 Superseded by part number: 86639817 |
| 5. | NSS | [1] | NOT SERVICED SEPARATELY | CONCover, Back; Includes Manual Holder |
| 7. | 1987212C1 | [1] | PACKAGE | IHBackTilt Knob; Includes Knob, Handle, Screw |
| 8. | 86990108 | [1] | SEAT ACCESSORY | BURLever, Slide Release |
| 9. | 86990111 | [1] | SEAT ACCESSORY | BURSlide; 6 in. Travel |
| 10. | 86990112 | [1] | SEAT ACCESSORY | BURSlide; 6 in. Travel |
| . . | 1977725C1 | [1] | SLIDER | CASKit, Slider Block; Includes (4) Slider Blocks, (4) Bearings, (1) Ride Indicator |
| 11. | 182991A1 | [1] | LARGE PLATE | CASPLATE, LARGE Adapter Superseded by part number: 86641127 |
| 12. | 86990113 | [2] | BELT | BURTether |
| 13. | 389085A1 | [1] | KIT | CASSeat Belt Mounting; Includes (2) Brackets, (3) Spacers, (1) Plate, (6) Bolts, (2) Nuts |
| 14. | 86990114 | [1] | SEAT ACCESSORY | BURSuspension Assembly; Boxed |
| . . | 389284A1 | [1] | KIT | CASSpring; Suspension |
| . . | 51200906 | [1] | BRACKET | CASShaft; Suspension Superseded by part number: 276473 |
| . . | 112884A1 | [1] | SHAFT | IHBearing Superseded by part number: 276494 |
| . . | 86990117 | [1] | SEAT ACCESSORY | BURArm, Suspension Superseded by part number: 276461 |
| . . | A45504 | [1] | SPRING WASHER | CASSpring Washer; Square, With Weldnut |
| . . | A45505 | [1] | GEAR | CASGear and Shaft Superseded by part number: 276489 |
| . . | A45054 | [2] | BUMPER | CASBlack Rubber Superseded by part number: 276467 |
| 15. | 389273A1 | [1] | HOUSING | CASLower; Boxed |
| 16. | 86990116 | [1] | SEAT ACCESSORY | BURHousing; Upper; Boxed |
| . . | 389276A1 | [2] | KIT | CASShock Absorber; Includes (1) Shock, (2) Bearings |
| . . | 64918C1 | [1] | SHOCK ABSORBER | IHKit, Shock Absorber; Includes (1) Shock, (2) Bearings, (1) Bolt, (1) 231-4206 Nut, (1) 131-1100 Nut, (2) Spacers |
| 17. | 389086A1 | [1] | KIT | CASBoot; Includes (1) Boot, (25) Clips, (1) Decal |
| . . | 130674A1 | [1] | SET | CASKit, Weight Adjustment; Includes (1) Thrust Washer, (2) Shaft and Gear |
| 18. | 123969A1 | [1] | SEAT ACCESSORY | CASKit, Weight Adjustment; Incl (1) Knob, (1) Shaft, (1) Roll Pin |
| 19. | 38-31016 | [1] | PIN,5/32" x 1", Coiled | CAS Superseded by part number: 280634 |
