纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-16) - SEAT ASSY, AIR SUSPENSION - MOUNTING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
666 次

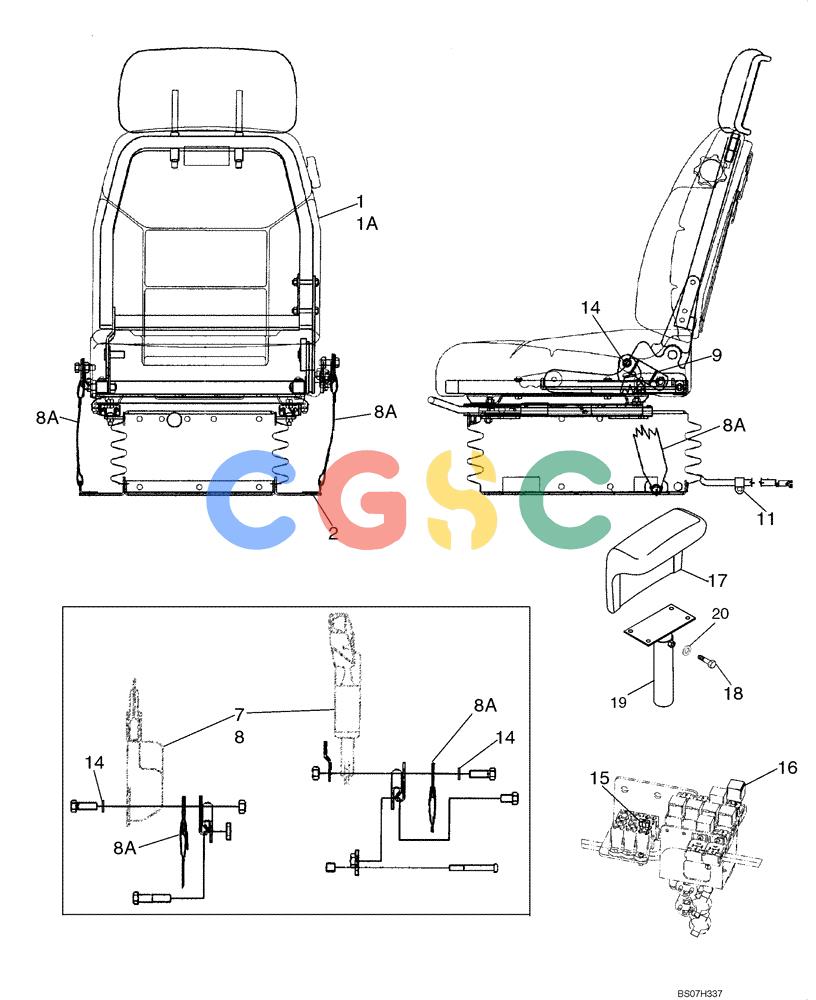

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87675129 | [1] | SEAT ASSY. | BURSEAT ASST, Air Suspension; Vinyl; See Figure 09-17 |
| 1A. | 87675128 | [1] | SEAT ASSY. | BURSEAT ASSY, Air Suspension; Cloth; See Figure 09-17 |
| 2. | 844-10025 | [4] | BOLT,Hex, M10 x 25mm, Cl 8.8 | CASReplaces 854-10025 M10 x 25, 10.9 Bolt Used On Some Models Superseded by part number: 9804261 |
| 7. | 87408888 | [1] | SAFETY BELT ,76.20 mm W | BURMounting Hardware Supplied with Seat Assy |
| 8. | 87408889 | [1] | SAFETY BELT ,50.80 mm W | BUR |
| 8A. | NSS | [1] | NOT SERVICED SEPARATELY | CONTether; Included With Ref 7, 8 |
| 9. | D150393 | [1] | BRACKET | CASReinforcement |
| 11. | 49836 | [1] | CLAMP | CAS |
| 14. | 496-21053 | [2] | WASHER,17/32" x 1 1/16" x .134" | CAS Superseded by part number: 86624188 |
| 15. | A149804 | [1] | FUSE | CAS30 amp; Light Green Superseded by part number: 92277 |
| 16. | 314451A1 | [1] | RELAY | CAS40 amp, 12 V, Heavy Duty Superseded by part number: 87355337 |
| 17. | 76067361 | [2] | ARMREST | LECCushion; If Used |
| 17. | 87480586 | [2] | PADDING | BURArmrest; If Used |
| 18. | 614-8016 | [8] | BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd | CAS Superseded by part number: 16043224 |
| 19. | 76067362 | [2] | SUPPORT | LECArmrest |
| 20. | 895-11008 | [8] | WASHER,M8 x 16 x 1.6 | CAS Superseded by part number: 86624184 |
| . . | 87436836 | [1] | RELAY,12V, 40 Amp | BUR40 amp, 12 V, Heavy Duty; Used With Ref 1A Superseded by part number: 84543666 |
