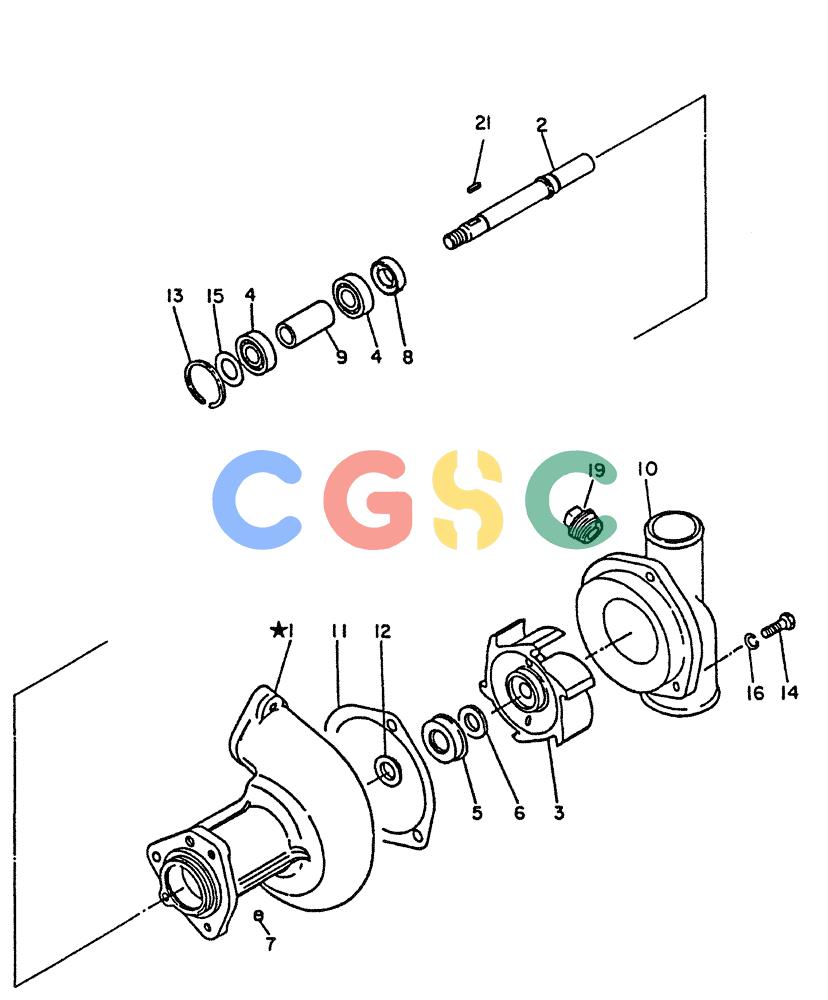

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (06-003) - PUMP-WATER, (FITTING PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
348 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-21. | VG2101096004 | [1] | PUMP-WATER (FOR A1) | |
| 1-21. | VG2101096011 | [1] | WATER PUMP | KOB(FOR A2) Superseded by part number: VG2100896101 |
| 1-21. | VG2101096019 | [1] | PUMP-WATER (FOR A3) | |
| 1-21. | VG2101096067 | [1] | PUMP-WATER (FOR A4) | |
| 1-21. | VG2101096075 | [1] | PUMP ASSY, WATER (FOR A5) | PUMP ASSY, WATER (FOR A5) |
| 1. | VG2101199002 | [1] | BODY-PUMP | |
| 2. | VG2102199103 | [1] | SHAFT | KOB(FOR A1,A2) |
| 2. | VG2102199110 | [1] | SHAFT (FOR A3,A4,A5) | SHAFT (FOR A3,A4,A5) |
| 3. | VG2102299002 | [1] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE IMPELLER (FOR A1,A2) |
| 3. | VG2102296000 | [1] | IMPELLER | KOB(FOR A3,A4,A5) |
| 4. | VG2102396000 | [2] | BALL BEARING | KOB |
| 5. | VG2102699113 | [1] | SEAL ASSY (FOR A4,A5) | |
| 5. | VG2102699112 | [1] | OIL SEAL | KOB(FOR A1,A2,A3) |
| 6. | VG2102799002 | [1] | SEAT ASSY (FOR A4,A5) | SEAT ASSY (FOR A4,A5) |
| 6. | VG2102796000 | [1] | VALVE SEAT | KOBASSY (FOR A1,A2,A3) |
| 7. | VG2103196000 | [1] | PLUG | KOB |
| 8. | VG2103396000 | [1] | SEAL | KOBOIL |
| 9. | VG2103896000 | [1] | SPACER | KOB |
| 10. | VG2104099001 | [1] | INLET WATER (FOR A1) | INLET WATER (FOR A1) |
| 10. | VG2104099010 | [1] | INLET-WATER (FOR A2) | |
| 10. | VG2104099017 | [1] | INLET-WATER (FOR A3) | |
| 10. | VG2104099104 | [1] | INLET-WATER (FOR A4) | |
| 10. | VG2104099100 | [1] | INLET-WATER (FOR A5) | |
| 11. | VG2108796000 | [1] | GASKET | KOB |
| 12. | VG2114499000 | [1] | SLINGER | KOB |
| 13. | VG0092224200 | [1] | SNAP RING | KOB |
| 14. | VG0811082010 | [3] | BOLT | BOLT |
| 15. | VG2103999002 | [1] | SHIM | KOB(FOR A1,A2) |
| 15. | VG2103978500 | [1] | SHIM | KOB(FOR A3,A4,A5) |
| 16. | VG0891513810 | [3] | WASHER SPRING | WASHER SPRING |
| 19. | VG0093111210 | [1] | PLUG (FOR A1,A2) | PLUG (FOR A1,A2) |
| 21. | VG2105399001 | [1] | KEY | KEY |
| . . | VG2101099129 | [1] | KIT, ENGINE TOP GASK | KOB(Incls. Refs. 2-6,8,9,11,12,15,21) (FOR A1,A2) |
| . . | VG2101099425 | [1] | KIT, ENGINE TOP GASK | KOB(Incls. Refs. 2-6,8,9,11,12,15,21) (FOR A1,A2) |
| . . | VG2101099528 | [1] | REPAIR KIT (Incls. Refs. 2-6,8,9,11,12,15,21) (FOR A3) | |
