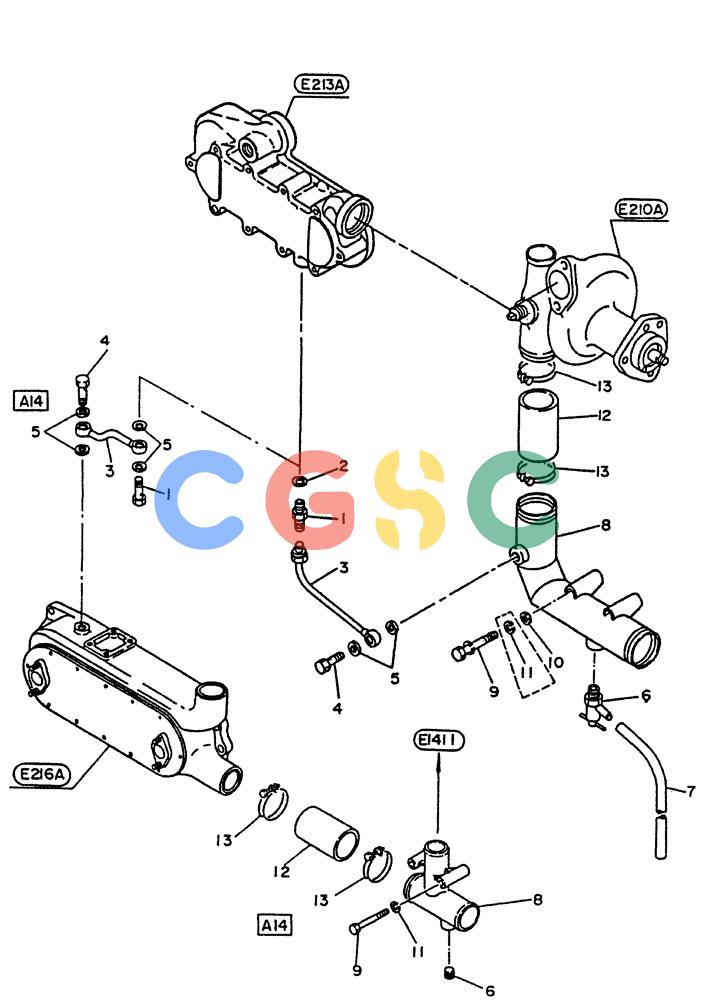

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (06-002) - INLET-WATER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
533 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG0162200044 | [1] | HYD CONNECTOR | KOB(FOR A4,A8,A9,A10) |
| 1. | VG0161900354 | [1] | SCREW | KOB(FOR A14) |
| 2. | VG0135121164 | [1] | GASKET | KOB(FOR A4,A8,A9,A10) |
| 3. | VG2121796003 | [1] | ELBOW | KOBASSY-WATER (FOR A4,A8,A9,A10) |
| 3. | VG2121796011 | [1] | KIT | KOBWATER (FOR A14) |
| 4. | VG1643490000 | [1] | SPECIAL BOLT | KOBBOLT-EYE (FOR A4,A8,A9,A10) Superseded by part number: 1643490000 |
| 4. | VG0161900424 | [1] | SCREW | KOBEYE (FOR A14), Start Year: 01-JUL-85 |
| 4. | VG1515490000 | [1] | BOLT EYE (FOR A14) | BOLT EYE (FOR A14) |
| 5. | VG0135121144 | [2] | GASKET | KOB(FOR A4,A8,A9,A10) |
| 5. | VG0135122164 | [4] | GASKET | KOB(FOR A14) |
| 6. | VG2121290004 | [1] | CUTTERHEAD COCK-DRAIN (FOR A4,A10) | CUTTERHEAD COCK-DRAIN (FOR A4,A10) |
| 6. | VG0093110610 | [1] | PLUG SCREW (FOR A14) | PLUG SCREW (FOR A14) |
| 7. | VG2121897000 | [1] | HOSE | KOBVINYL (FOR A10) |
| 8. | VG2101396007 | [1] | HOSE | KOBINLET (FOR A4,A9,A10) |
| 8. | VG2101396008 | [1] | ELBOW | KOBTUBE-WATER INLET (FOR A14) |
| 8. | VG2101396005 | [1] | ELBOW | KOBTUBE-WATER INLET (FOR A8) |
| 9. | VG0112100104 | [2] | BOLT,W/HASHER (FOR A4,A8,A9,A10), Start Year: 01-DEC-83 | |
| 9. | VG0812087010 | [2] | BOLT (FOR A4,A8,A9,A10) | BOLT (FOR A4,A8,A9,A10) |
| 9. | VG0812088510 | [2] | BOLT (FOR A14) | BOLT (FOR A14) |
| 10. | VG0891553810 | [2] | WASHER-PLAIN (FOR A4,A8,A9,A10) | |
| 11. | VG0891513810 | [2] | WASHER SPRING (FOR A4,A8,A9,A10), Start Year: 01-DEC-83 | WASHER SPRING (FOR A4,A8,A9,A10), Start Year: 01-DEC-83 |
| 13. | VG2138396012 | [2] | CLAMP | KOBHOSE |
