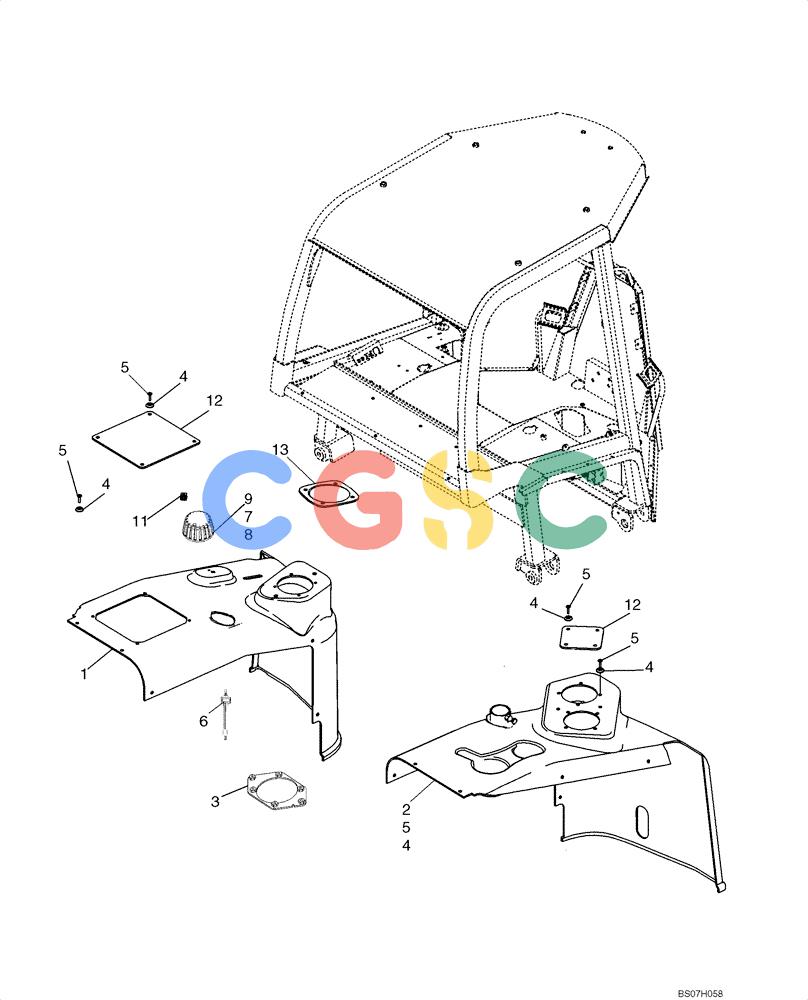

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-21) - CANOPY, ROPS - CONSOLES, SIDE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
179 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87530550 | [1] | CONSOLE | BURCONSOLE, Left Hand Side |
| 2. | 87530551 | [1] | CONSOLE | BURCONSOLE, Right Hand Side |
| 3. | 87358579 | [1] | PLATE, SUPPORT | BURPLATE,SUPPORT Joysrick |
| 4. | 79076208 | [32] | WASHER | LEC |
| 5. | 87341593 | [32] | SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8 | BUR |
| 6. | 87352928 | [1] | SWITCH | BURReverse Ratio |
| 7. | 895-18010 | [1] | WASHER,10.5mm ID x 18mm OD x 1.6mm Thk | CAS Superseded by part number: 86625251 |
| 8. | 425-146 | [1] | JAM NUT,3/8" - 16, Gr 5 | CAS Superseded by part number: 87016560 |
| 9. | 187820A1 | [1] | KNOB | CAS |
| 10. | 87530541 | [1] | COVER PLATE | BURPLATE, Diagnosric Cover |
| 11. | 76047274 | [4] | NUT,M6 x 1 | LECFastener |
| 12. | 87530549 | [1] | PROTECTIVE COVER | BURCOVER, Aux. Control |
| 13. | 87311956 | [1] | PLATE, Adapter | |
