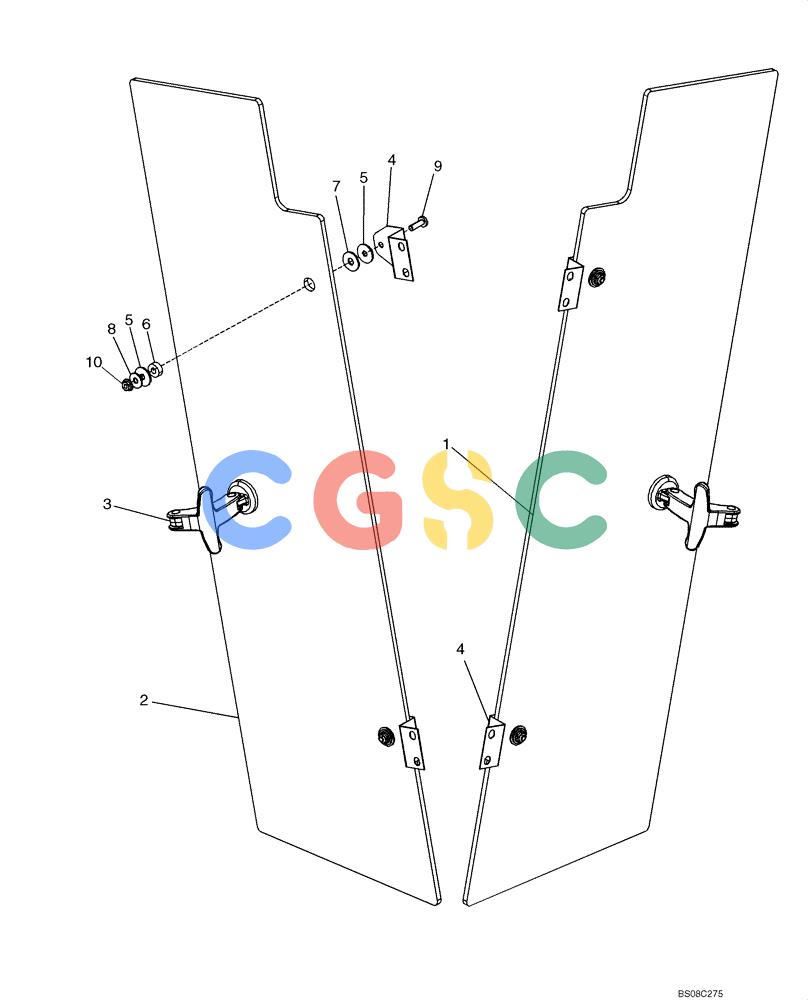

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-27A) - CAB - WINDOW VENTS - HARDWARE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
423 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87372050 | [1] | WINDOW | BURLeft-Hand Vent |
| 2. | 87372051 | [1] | WINDOW | BURRight-Hand Vent |
| 3. | 87397399 | [2] | LATCH | BURVent Window |
| 4. | 87397400 | [4] | HINGE | BURVent Window |
| 5. | 87615099 | [8] | WASHER | BURWASHER, Nylon |
| 6. | 87517926 | [4] | BUSHING | BURPlastic |
| 7. | 87517925 | [4] | WASHER | BURFoam |
| 8. | 86624182 | [4] | WASHER,6.6mm ID x 18mm OD x 1.6mm Thk | FORReplaces 895-25006 |
| 9. | 86511830 | [4] | SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8 | ZEDReplaces 840-1620 |
| 10. | 9804276 | [4] | FLANGE NUT,M6 x 1.0, Cl 8 | NHReplaces 825-2406 |
