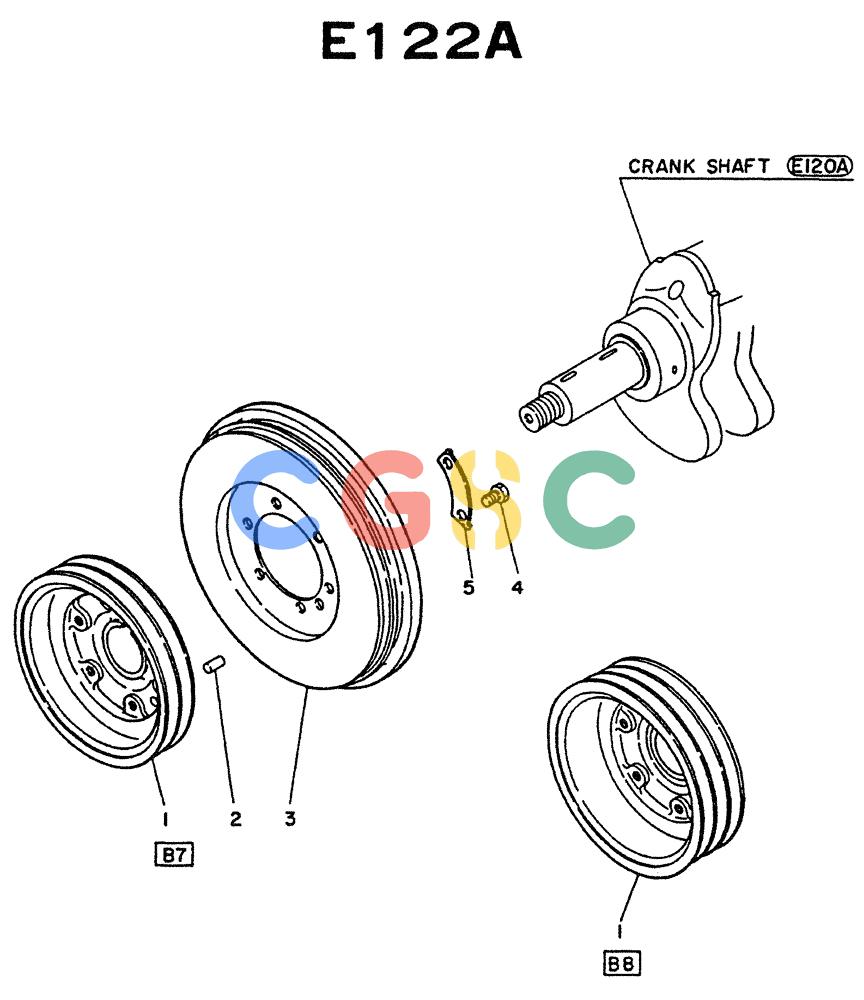

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (02-003[02]) - PULLEY-CRANK Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
149 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | A1 | [1] | 41(STD.),81 | |
| . . | A2 | [1] | SCREW | FO41(OPT.),43,46,55 |
| . . | A3 | [1] | 41(OPT.),51 | |
| . . | A4 | [1] | 56 | |
| . . | B7 | [1] | 71,73 | |
| . . | B8 | [1] | 70,76 | |
| 1. | VG1230496208 | [1] | PULLEY-CRANK (BX2) (FOR A1,B7) | |
| 1. | VG1230496062 | [1] | PULLEY | KOBPULLEY-CRANK (BX3) (FOR A2,B8) |
| 1. | VG1230496207 | [1] | PULLEY | KOBPULLEY-CRANK (BX2) (FOR A3) |
| 1. | VG1230496111 | [1] | PULLEY PULLEY-CRANK (AX3) (FOR A4) | PULLEY PULLEY-CRANK (AX3) (FOR A4) |
| 2. | VG0152210184 | [1] | PIN PIN-STRAIGHT | PIN PIN-STRAIGHT |
| 3. | VG1230696008 | [1] | DAMPER-CRANK (FOR A1,A2,A3) | |
| 3. | VG1230696003 | [1] | DAMPER | KOBDAMPER-CRANK (FOR A4) |
| 3. | VG1230696010 | [1] | DAMPER-CRANK (FOR B7,B8) | |
| 4. | VG0810102510 | [6] | BOLT | KOBBOLT |
| 5. | VG1229696001 | [3] | LOCK WASHER | KOBWASHER-LOCK |
