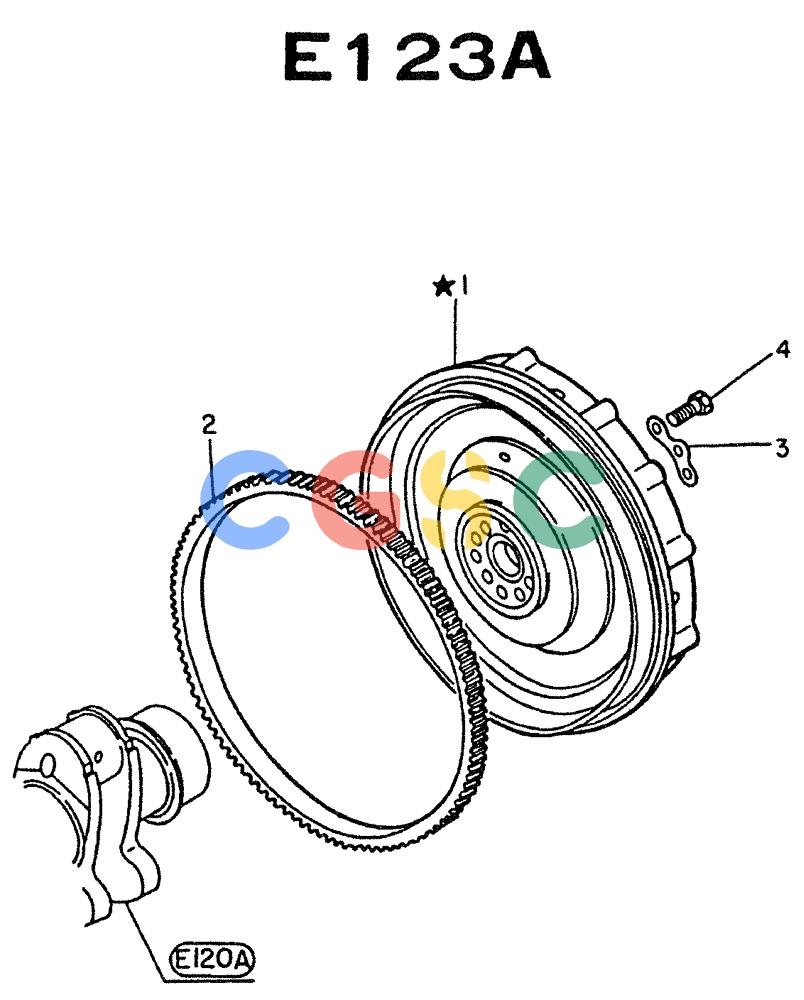

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (02-004) - FLYWHEEL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
1010 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | A2 | [1] | SCREW | FO41,81(OPT.) |
| . . | A3 | [1] | 41,81(0PT.) | |
| . . | A13 | [1] | SCREW | FO41(STD.) |
| . . | A14 | [1] | 81(STD.) | |
| . . | A15 | [1] | 41(0PT.),56 | |
| 1.2. | VG1231096102 | [1] | FLYWHEEL ASSY (FOR A2) | |
| 1.2. | VG1231096111 | [1] | FLYWHEEL ASSY (FOR A3) | |
| 1.2. | VG1231096202 | [1] | FLYWHEEL ASSY (FOR A13) | |
| 1.2. | VG1231096068 | [1] | FLYWHEEL ASSY (FOR A14) | |
| 1.2. | VG1231096069 | [1] | ENGINE FLYWHEEL | KOBFLYWHEEL ASSY (FOR A15) |
| 2. | VG1231290001 | [1] | RING GEAR | KOBGEAR-RING |
| 3. | VG1231496000 | [3] | LOCK WASHER | KOBWASHER-LOCK |
| 4. | VG1231596000 | [9] | SCREW | KOBBOLT-FLYWHEEL (FOR A13,A14,A15) |
| 4. | VG1231590004 | [9] | BOLT-FLYWHEEL (FOR A2,A3) | |
