纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-30) - CAB - COVERS, INTERIOR ROOF AND FLOOR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
816 次

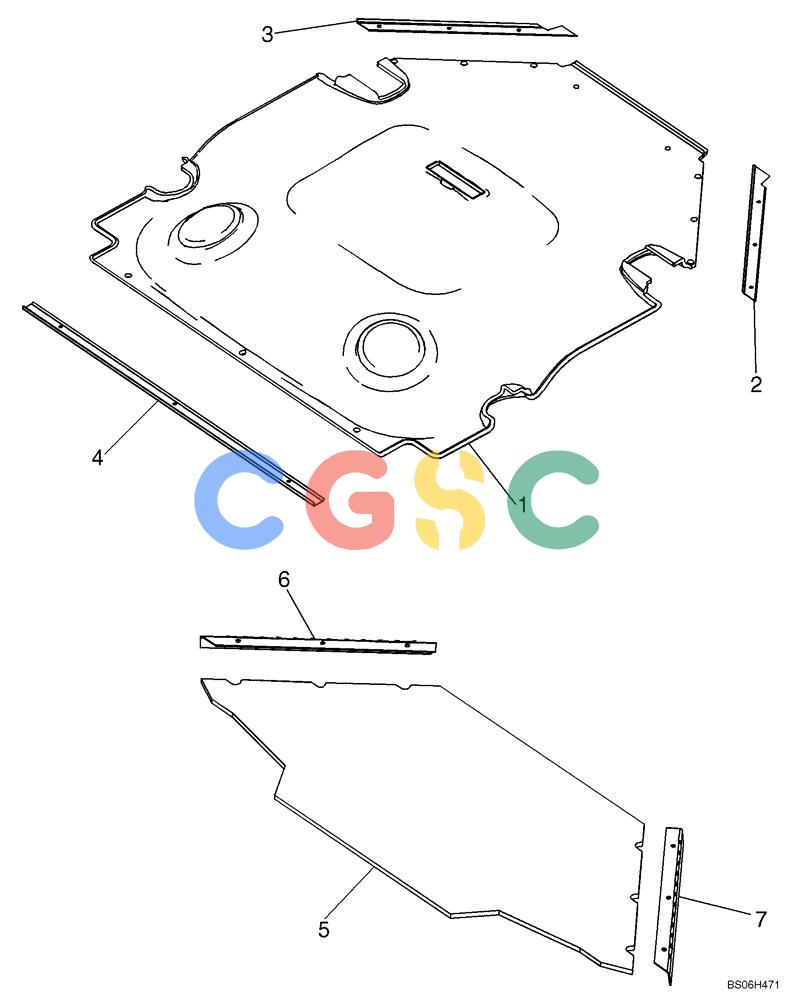

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87517931 | [1] | ROOF LINING | BURHeadliner |
| 2. | 87530496 | [1] | CHANNEL | BURRight-Hand Headliner Retainer |
| 3. | 87530497 | [1] | CHANNEL | BURLeft-Hand Headliner Retainer |
| 4. | 87530498 | [1] | CHANNEL | BURRear Headliner Retainer |
| 5. | 87372100 | [1] | FLOOR MAT | BUR |
| 6. | 87530499 | [1] | ANGLE | BURLeft-Hand Floormat Retainer |
| 7. | 87530500 | [1] | ANGLE | BURRight-Hand Floormat Retainer |
