神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (02-005) - FLYWHEEL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
524 次

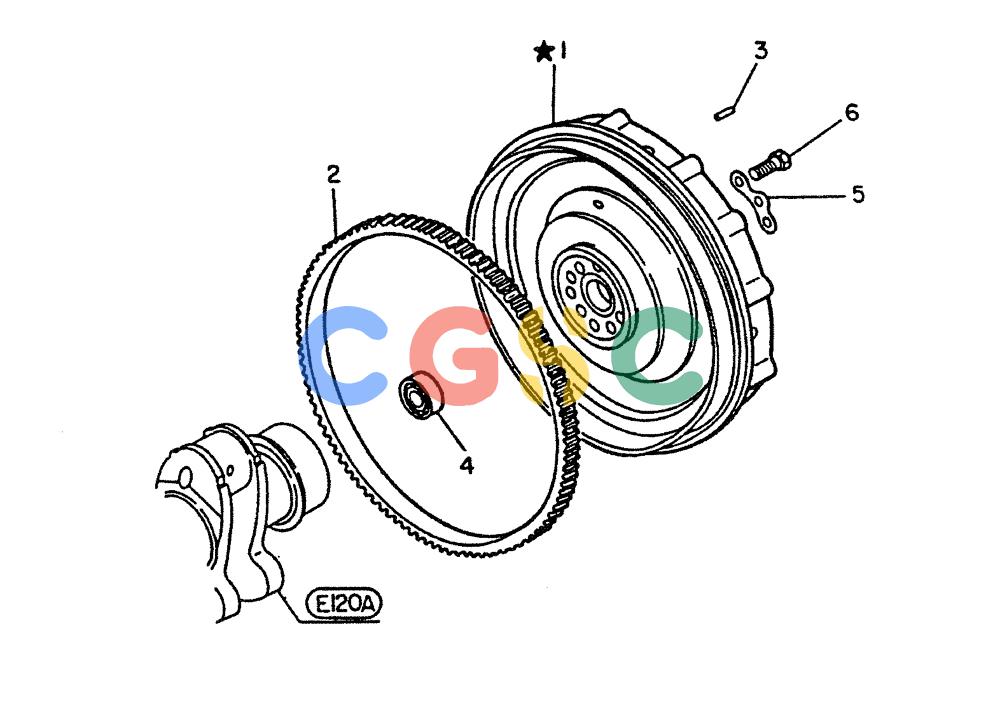

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | B9 | [1] | 41(OPT.),43,51 | |
| . . | B10 | [1] | 81(OPT.) | |
| . . | B11 | [1] | CATALOG | IH41(OPT.) |
| . . | B14 | [1] | 55 | |
| 1.2. | VG1231096202 | [1] | FLYWHEEL ASSY (FOR B9,B11,B14) | |
| 1.2. | VG1231096068 | [1] | FLYWHEEL ASSY (FOR B10) | |
| 2. | VG1231290001 | [1] | RING GEAR | KOBGEAR-RING |
| 3. | VG9102190002 | [2] | PIN-STRAIGHT (FOR B9,B11,B14) | |
| 4. | VG2102397001 | [1] | BALL BEARING | KOBBEARING (FOR B9,B10,B11) |
| 5. | VG1231496000 | [3] | LOCK WASHER | KOBWASHER-LOCK |
| 6. | VG1231596000 | [9] | SCREW | KOBBOLT-FLYWHEEL (FOR B9,B10,B14) |
| 6. | VG1231596001 | [9] | BOLT-FLYWHEEL (FOR B11) | |
