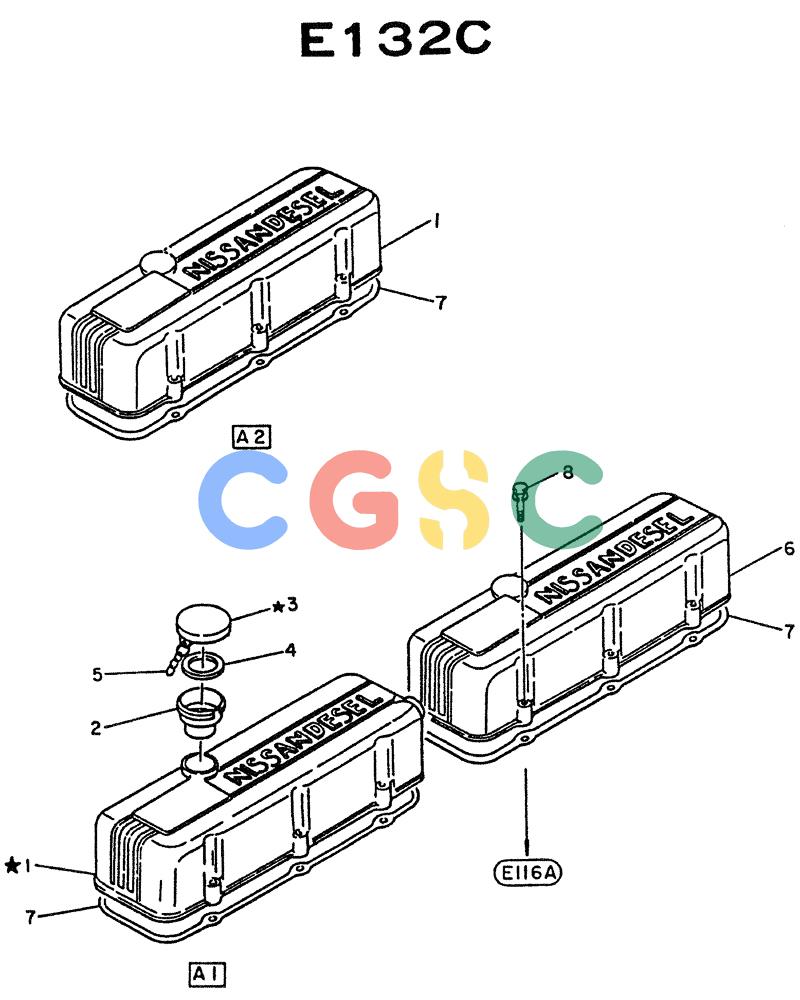

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (02-007) - COVER-VALVE ROCKER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
309 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-5. | VG1326396007 | [1] | COVER ASSY-ROCKER (FOR A1) | |
| 1. | VG1326696018 | [1] | COVER | KOBCOVER-ROCKER (FOR A2) |
| 2. | VG1526697006 | [1] | MOUTH-CAP (FOR A1) | |
| 3.4. | VG1525397002 | [1] | CAP | KOBCAP ASSY-OIL (FOR A1) |
| 4. | VG1527097001 | [1] | GASKET (FOR A1) | |
| 5. | VG2143196000 | [1] | CHAIN | KOBCHAIN (FOR A1) |
| 6. | VG1326696018 | [1] | COVER | KOBCOVER-ROCKER |
| 8. | VG9101196000 | [12] | BOLT,W/WASHER, Start Year: 01-MAY-85 | |
| 8. | VG0812084528 | [12] | SCREW | KOBBOLT,W/WASHER |
