神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (03-002[01]) - HOUSING-AIR INTAKE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
684 次

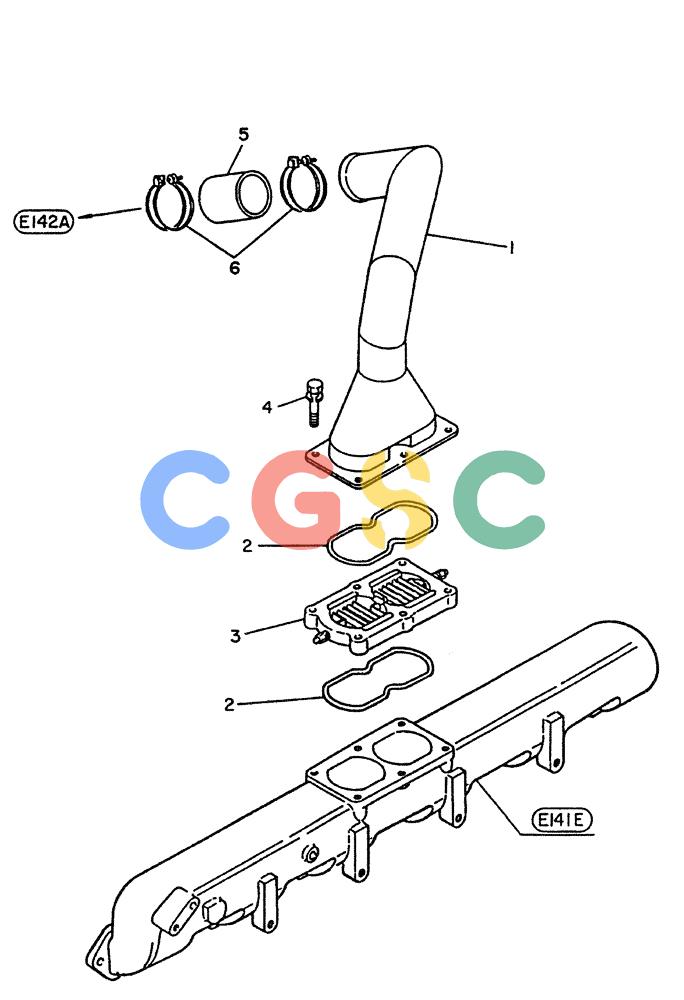

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG1400996504 | [1] | DUCT-AIR INTAKE (FOR B2) | |
| 1. | VG1400996064 | [1] | DUCT-AIR INTAKE (FOR C3,C4) | |
| 2. | VG1107096000 | [2] | RUBBER RING | KOBRING-RUBBER (FOR C3,C4) |
| 3. | VG1106596005 | [1] | HEATER ASSY-AIR (FOR B2,C3) | |
| 3. | VG1106596006 | [1] | HEATER ASSY-AIR (FOR C4) | |
| 4. | VG0811105062 | [6] | BOLT,W/WASHER (FOR B2) | |
| 4. | VG0811105562 | [6] | BOLT,W/WASHER (FOR C3,C4) | |
| 5. | VG1402096000 | [1] | FLEXIBLE HOSE | KOBHOSE-INTAKE DUCT |
| 6. | VG2138390115 | [2] | CLAMP | KOBCLAMP-HOSE |
