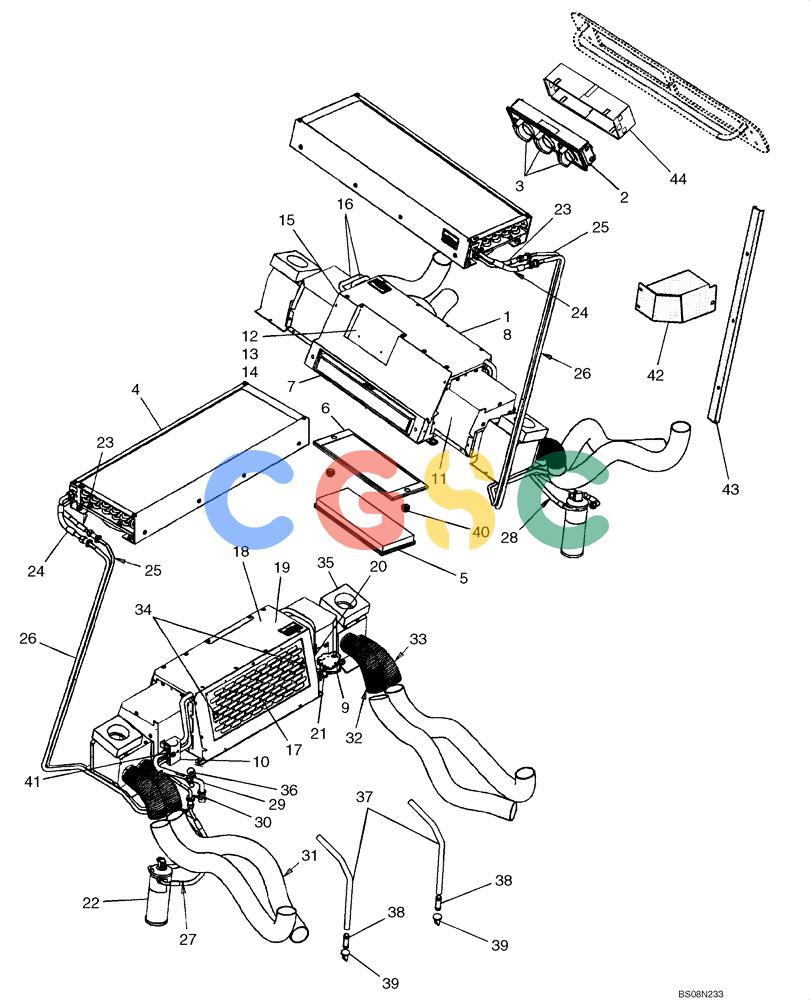

| 1. | 87691824 | [1] | UNIT HEATER | BHBHeater Unit; HVAC Unit, 24V; Complete Unit with Cores, Expansion Valve, and Heater Valve |
| 2. | 87397412 | [1] | CONTROL | BURHVAC Control, 24V; Incl. Knobs, Ref 3 |
| 3. | 87058322 | [3] | KNOB | BEL |
| 4. | 87397410 | [1] | CONDENSER | BURASSEMBLY; See Figure 09-36 |
| 5. | 87691825 | [1] | CAB FILTER | BUR Superseded by part number: 60-4452T2 |
| 6. | 87691827 | [1] | GASKET | BURFILTER,FRAME |
| 7. | 87615070 | [1] | GASKET | BURSEAL, Fresh Air |
| 8. | 87704481 | [1] | WIRE HARNESS | BUR24 V HVAC Unit Harness; Internal to HVAC Heater Unit, Ref 1 |
| 9. | 87586951 | [1] | VALVE | BURWater Heater |
| 10. | 87586952 | [1] | VALVE | BUREXPANSION VALVE, TXV |
| 11. | 87586959 | [2] | MOTOR | BURBlower Motor, 12V; Internal Fan |
| 12. | 87704482 | [1] | RESISTOR | BURBlower; SEE NOTE FOR OTHER OPTIONS AND BEFORE ORDERING Superseded by part number: 87489763, 87489763, 87489764 |
| 13. | 86505792 | [1] | THERMOSTATIC SWITCH | WIN |
| 14. | 87704479 | [1] | INSTRUMENT PANEL | BURAccess Panel |
| 15. | 87586962 | [1] | GROMMET | BURWire |
| 16. | 87586963 | [2] | GROMMET | BURTube |
| 17. | 87586964 | [1] | GRILLE ASSY | BURRecirc. Air Filter |
| 18. | 87586966 | [1] | CORE | BURHeater |
| 19. | 87586967 | [1] | EVAPORATOR | BUREvaporator Core |
| 20. | 515-21159 | [1] | CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type | CAS Superseded by part number: 87532034 |
| 21. | 1954736C1 | [2] | HOSE CLAMP,#24 | IH |
| 22. | 87696535 | [1] | RECEIVER-DRIER,Air Conditioner | BUR |
| 23. | 87586971 | [1] | HOSE ASSY.,9.53mm ID x 178.05mm L | BURLower at Condenser |
| 24. | 87586972 | [1] | A/C HOSE | BURUpper |
| 25. | 87586977 | [1] | TUBE,.375" OD | BURFrom Lower Hose At Condenser |
| 26. | 87586978 | [1] | TUBE,.5" OD | BURFrom Upper Hose At Condenser |
| 27. | 87586974 | [1] | HOSE ASSY. | BURat Receiver Dryer |
| 28. | 87586973 | [1] | HOSE ASSY. | BURat Receiver Dryer |
| 29. | 87586976 | [1] | TUBE,.625" OD | BURUpper at Expansion Valve |
| 30. | 87586975 | [1] | TUBE,.375" OD | BURLower at Expansion Valve |
| 31. | 84205272 | [4] | VENT | BURReplaced 87551011 |
| 32. | 84206149 | [2] | HOSE,65.00 mm ID x 304.80 mm | BURInner, Replaced 87551013 |
| 33. | 84206144 | [2] | HOSE,65.00 mm ID x 228.60 mm | BUROuter, Replaced 87551012 |
| 34. | 87586960 | [2] | KNOB | BURHolds Grill On |
| 35. | 87615072 | [2] | GASKET | BURGASKET, Plenum Seal Top |
| 36. | 284272A3 | [1] | A/C LOW PRESSURE SWITCH | CAS Superseded by part number: 87000228, 87773864 |
| 37. | 87727235 | [2] | HOSE,14.30 mm ID x 675 mm | BURDrain |
| 38. | 87727238 | [2] | UNION | BURUNION, Connector |
| 39. | 87727241 | [2] | DRAIN | BURFITTING, Drain |
| 40. | 87704478 | [2] | KNOB | BURKNOB |
| 41. | 87586958 | [21] | NUT | BURU Clamp M6 |
| 42. | 87615104 | [1] | PROTECTIVE COVER | BURCover, Protective Air Hoses |
| 43. | 87577743 | [1] | CHANNEL | BURChannel |
| 44. | 87281122 | [1] | SLEEVE | GIHeater/AC Control Sleeve |
| . . | 760-14613 | [54] | SELF-TAP SCREW,Pan Hd, M6.3 x 13 | CAS Superseded by part number: 973738 |
| . . | 779-34395 | [2] | SELF-TAP SCREW,Hex Hd, M4.8 x 9.5 | CAS |
| . . | 87489764 | [1] | RESISTOR | BURSEE NOTE BEFORE ORDERING |
| . . | 87397414 | [1] | CAB FILTER | BURRecirculation Air Filter; Not Illustrated |
| . . | 87489762 | [1] | REPAIR KIT | BURSEE NOTE; Includes 1) Resistor and 1) Access Panel and Instructions |
