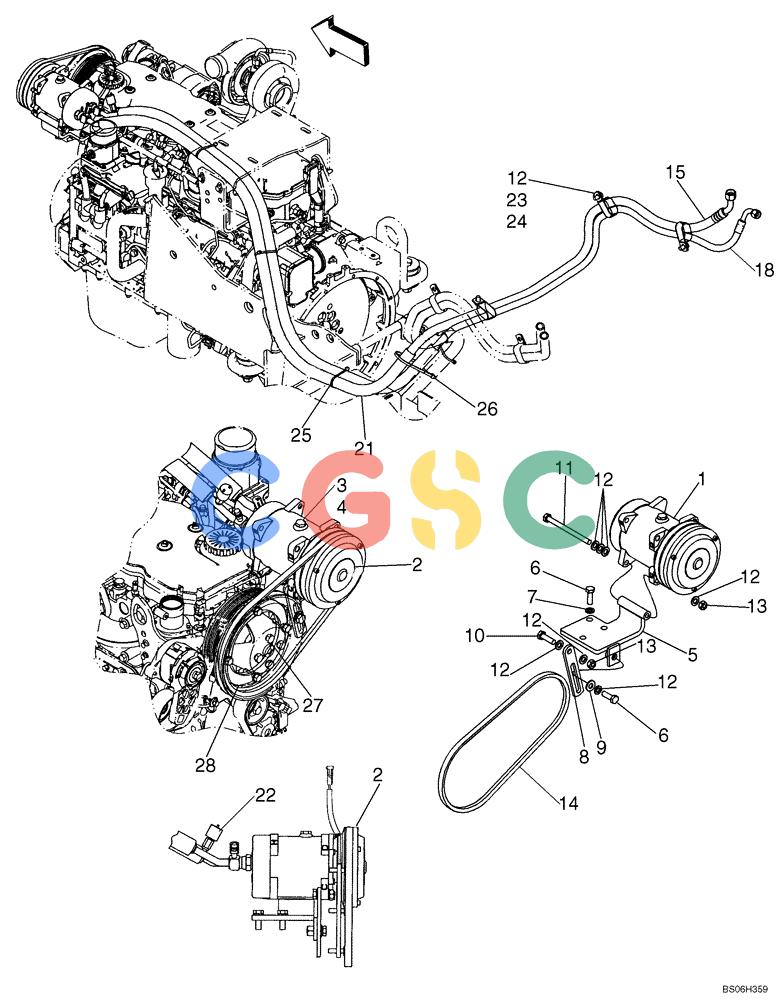

| 1. | 86983967 | [1] | AIRCOND. COMPRESSOR,24V, W/ Clutch, W/ Pulley | FARIncl Ref 2 - 4 |
| . . | 86983967R | [1] | REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley | MKTD150B TIER 3 (10/07-) |
| . . | 86983967C | [1] | CORE-COMPRESSOR | MKTReturn Number |
| 2. | 138886A2 | [1] | CLUTCH | CASCompressor |
| 3. | A49667 | [1] | PLUG | CAS |
| 4. | 128483A1 | [1] | O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro | IH5/16 ID x 1/16 |
| 5. | 87362945 | [1] | BRACKET, SUPPORTING | BURCompressor |
| 6. | 614-10030 | [4] | BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd | IH Superseded by part number: 43140 |
| 7. | 892-11010 | [4] | LOCK WASHER,M10 | CAS Superseded by part number: 140028 |
| 8. | 84716C1 | [1] | SUPPORT | IHStrap Superseded by part number: 87306665 |
| 9. | 895-15010 | [1] | WASHER,M11 x 24 x 2 | CAS Superseded by part number: 86625253 |
| 10. | 614-10035 | [1] | BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd | CAS Superseded by part number: 9706704 |
| 11. | 814-10130 | [1] | BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8 | CAS Superseded by part number: 86508575 |
| 12. | 895-11010 | [9] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS Superseded by part number: 14496621 |
| 13. | 825-1410 | [2] | NUT,M10, Cl 8 | CAS Superseded by part number: 100016 |
| 14. | 379461A1 | [1] | BELT,12.70 mm W x 950.00 mm L | CASAir Conditioner Drive |
| 15. | 84195139 | [1] | A/C HOSE | BURA/C Suction Hose; Includes 122553A1 Cap, 9827059, 87533612 O-Ring, 1250594C2 Valve Core |
| . . | 122553A1 | [1] | CAP | IHLow Side Service Port |
| . . | 9827059 | [1] | O-RING,1.78mm Thk x 14mm ID, 70 Duro | NHCab End |
| . . | 87533612 | [1] | O-RING,1.93mm Thk x 15.67mm ID, Cl 5, 75 Duro | BELCompressor End |
| . . | 1250594C2 | [1] | CORE | IHValve |
| 18. | 84195140 | [1] | HOSE ASSY. | BURA/C Discharge Hose; Includes 122554A1 Cap, 9827058, 87533612 O-Ring, 1250594C2 Valve Core |
| . . | 122554A1 | [1] | CAP | IHHigh Side Service Port |
| . . | 9827058 | [1] | O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro | NHCab End |
| 21. | 87580828 | [2] | CONDUIT | BURConvoluted |
| 22. | 284273A2 | [1] | A/C HIGH PRESSURE SWITCH | CAS Superseded by part number: 87000227, 87775423 |
| 23. | 627-10020 | [3] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd | CAS Superseded by part number: 11106031 |
| 24. | D39696 | [3] | CLAMP,Double, 25.40mm Dia, Coated | CASInsulated, 25.4 mm Dia Superseded by part number: 47048664 |
| 25. | L11541 | [3] | CABLE TIE,203.2mm L, Nylon | CAS Superseded by part number: 87000312 |
| 26. | L18331 | [1] | CABLE TIE,375.9mm L | CAS Superseded by part number: 529070 |
| 27. | 9804260 | [4] | BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8 | NH |
| 28. | 87561120 | [1] | SPACER | BURAC Pulley |
