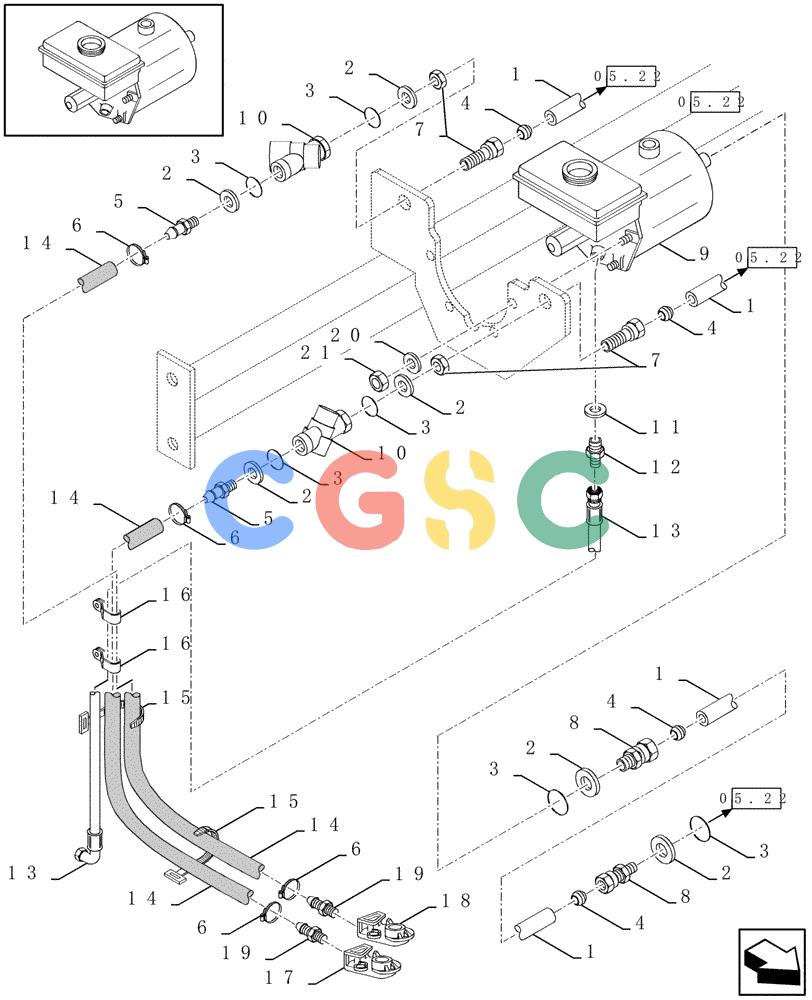

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (05.21[01]) - PNEUMATIC BRAKES Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
411 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
89512535
|
[1] |
HOSE
|
ZED
L=3.1M Superseded by part number: 87359227
|
| 2. |
89512530
|
[6] |
WASHER, THRUST
|
ZED
22MM Superseded by part number: 3076153R1
|
| 3. |
89512529
|
[6] |
O-RING
|
ZED
22MM Superseded by part number: 9512529
|
| 4. |
89512527
|
[4] |
FERRULE
|
ZED
Superseded by part number: 9512527
|
| 5. |
89512531
|
[2] |
HYD CONNECTOR
|
ZED
Superseded by part number: 9512531
|
| 6. |
80326082
|
[4] |
CLAMP
|
ZED
Superseded by part number: 326082
|
| 7. |
89512528
|
[2] |
HYD CONNECTOR
|
ZED
Superseded by part number: 9512528
|
| 8. |
84007189
|
[2] |
HYD CONNECTOR,M22 x 1.5
|
ZED
|
| 9. |
84007187
|
[1] |
CYLINDER
|
PA
|
| 10. |
89512545
|
[2] |
SEAL KIT
|
ZED
Superseded by part number: 9512545
|
| 11. |
84011379
|
[1] |
SEAL,12.2mm ID x 16.9mm OD x 1.5mm Thk
|
ZED
SEALRING
|
| 12. |
84007191
|
[1] |
ADAPTER,9/16" - 18 JIC x M12 x 1
|
ZED
|
| 13. |
84818639
|
[1] |
HYDRAULIC HOSE
|
PLO
|
| 14. |
84014198
|
[1] |
HOSE,18mm OD x 3.5mm Thk
|
ZED
Superseded by part number: 87389513
|
| 15. |
80323597
|
[1] |
STRAP
|
ZED
Superseded by part number: 14560287
|
| 16. |
80417412
|
[2.] |
CLAMP
|
ZED
Superseded by part number: 417412
|
| 17. |
89512546
|
[1] |
COUPLING BLOCK
|
ZED
RED Superseded by part number: 9512546
|
| 18. |
89512537
|
[1] |
COUPLING BLOCK
|
ZED
YELLOW Superseded by part number: 9512537
|
| 19. |
89512534
|
[2] |
HYD CONNECTOR
|
ZED
Superseded by part number: 9512534
|
| 20. |
80322358
|
[4] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 21. |
336256
|
[4] |
NUT,M8, Cl 8
|
PA
M8 Superseded by part number: 43362
|
