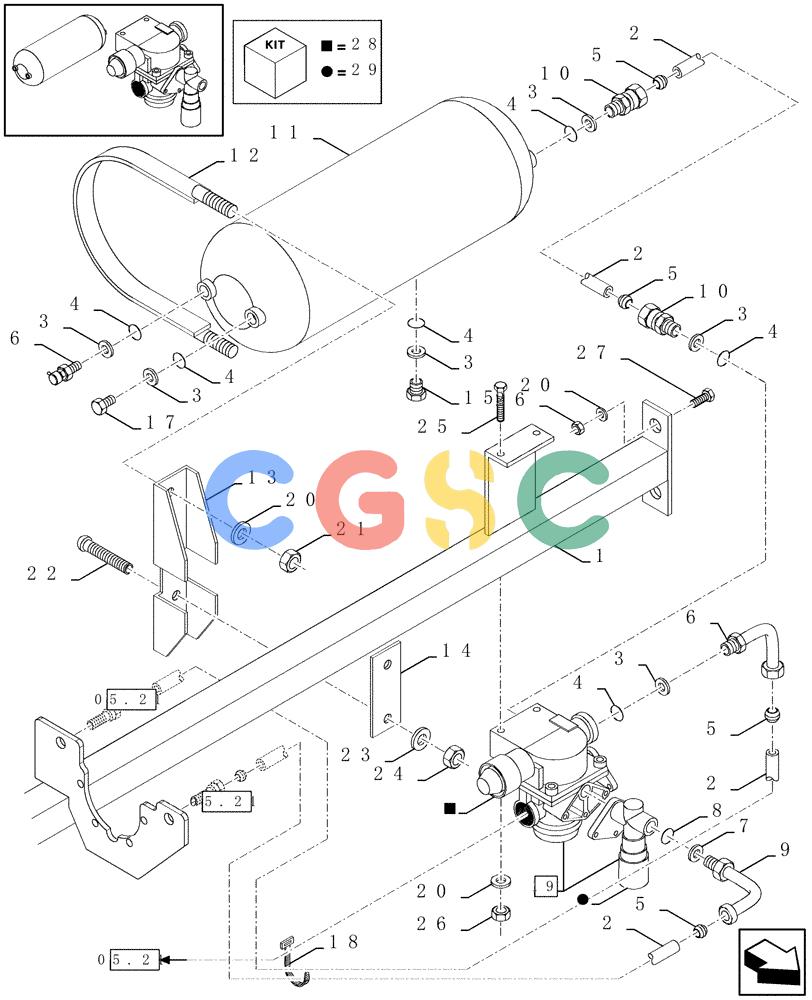

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (05.22[01]) - PNEUMATIC BRAKES Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
810 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84818601
|
[1] |
SUPPORT
|
PLO
|
| 2. |
89512535
|
[1] |
HOSE
|
ZED
L=3.1M Superseded by part number: 87359227
|
| 3. |
89512530
|
[6] |
WASHER, THRUST
|
ZED
22MM Superseded by part number: 3076153R1
|
| 4. |
89512529
|
[6] |
O-RING
|
ZED
22MM Superseded by part number: 9512529
|
| 5. |
89512527
|
[4] |
FERRULE
|
ZED
Superseded by part number: 9512527
|
| 6. |
89512525
|
[1] |
ELBOW
|
ZED
Superseded by part number: 9512525
|
| 7. |
89512533
|
[1] |
WASHER, THRUST
|
ZED
16MM Superseded by part number: 9512533
|
| 8. |
89512532
|
[1] |
O-RING
|
ZED
16MM Superseded by part number: 9512532
|
| 9. |
84007190
|
[1] |
ELBOW,M16 x 1.5 Male
|
ZED
|
| 10. |
84007189
|
[2] |
HYD CONNECTOR,M22 x 1.5
|
ZED
|
| 11. |
87015766
|
[1] |
AIR RESERVOIR
|
PA
Superseded by part number: 87015668
|
| 12. |
89512522
|
[2] |
SUPPORT
|
ZED
Superseded by part number: 87028121
|
| 13. |
84447381
|
[2] |
SUPPORT
|
PLO
|
| 14. |
84447379
|
[2] |
SUPPORT
|
PLO
|
| 15. |
89512541
|
[1] |
DRAIN PLUG
|
ZED
Superseded by part number: 9512541
|
| 16. |
89512540
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 443287A1
|
| 17. |
89512523
|
[1] |
PLUG
|
ZED
Superseded by part number: 9512523
|
| 18. |
80323597
|
[1] |
STRAP
|
ZED
Superseded by part number: 14560287
|
| 19. |
89512544
|
[1] |
BRAKE VALVE
|
ZED
(28, 29) Superseded by part number: 87019852
|
| 20. |
80140045
|
[10] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 21. |
80100037
|
[4] |
NUT,M10 x 1.5, Class 8
|
ZED
M10 Superseded by part number: 100037
|
| 22. |
80300660
|
[4] |
SCREW
|
ZED
M8x70
|
| 23. |
80322358
|
[4] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 24. |
336256
|
[4] |
NUT,M8, Cl 8
|
PA
M8 Superseded by part number: 43362
|
| 25. |
80325829
|
[2] |
SCREW
|
ZED
M10x45 Superseded by part number: 56614
|
| 26. |
100016
|
[6] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 27. |
43138
|
[4] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 28. |
89804178
|
[1] |
SEAL KIT
|
ZED
Superseded by part number: 9804178
|
| 29. |
89804179
|
[1] |
SEAL KIT
|
ZED
Superseded by part number: 9804179
|
