纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-36) - CAB - AIR CONDITIONING CONDENSER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
805 次

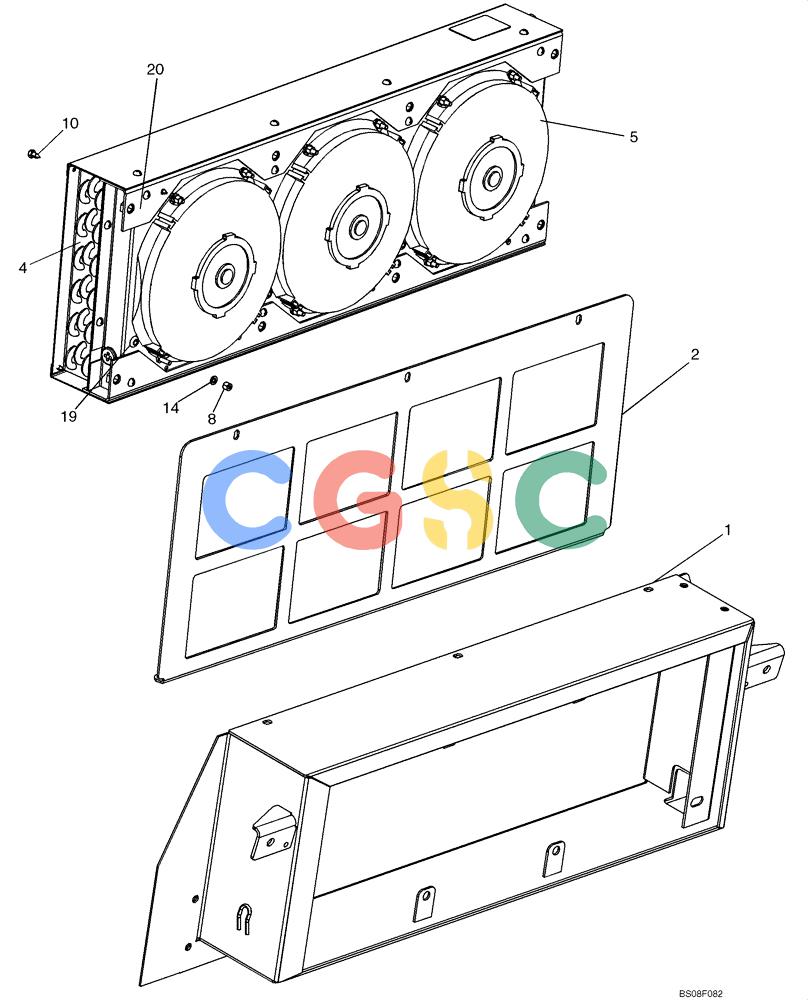

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87397410 | [1] | CONDENSER | BURCondenser Assembly 24V |
| 1. | 87530525 | [1] | HOUSING | KOBHousing |
| 2. | 87551016 | [1] | SCREEN | BURScreen |
| 4. | 87586969 | [1] | COIL | BUR |
| 5. | 87587491 | [3] | FAN | BURFan Motor 24 V , 10 in Puller W/ RFI |
| 8. | 832-10406 | [12] | NUT,M6 x 1, Cl 8 | CAS |
| 10. | 779-14613 | [5] | SELF-TAP SCREW,Hex Hd, M6.3 x 13 | CAS Superseded by part number: 86639137 |
| 14. | 895-11006 | [12] | WASHER,M6 x 12mm OD x 1.6mm | CAS Superseded by part number: 86588450 |
| 19. | 87586963 | [3] | GROMMET | BURWire Grommet |
| 20. | 87586970 | [1] | RELAY | BURRelay, 24V |
| . . | 760-14613 | [20] | SELF-TAP SCREW,Pan Hd, M6.3 x 13 | CAS Superseded by part number: 973738 |
| . . | NSS | [1] | NOT SERVICED SEPARATELY | CONCoil, Condenser Fan Plenum |
| . . | 87717443 | [1] | WIRE HARNESS | BURHarness Condenser |
| . . | 9827060 | [1] | O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro | NH#6 Superseded by part number: 128483A1 |
| . . | 9827058 | [1] | O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro | NH#8 |
